Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG1669 |

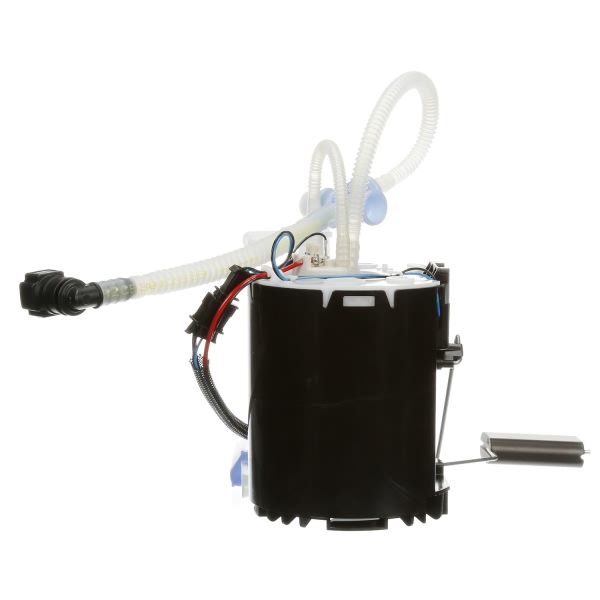

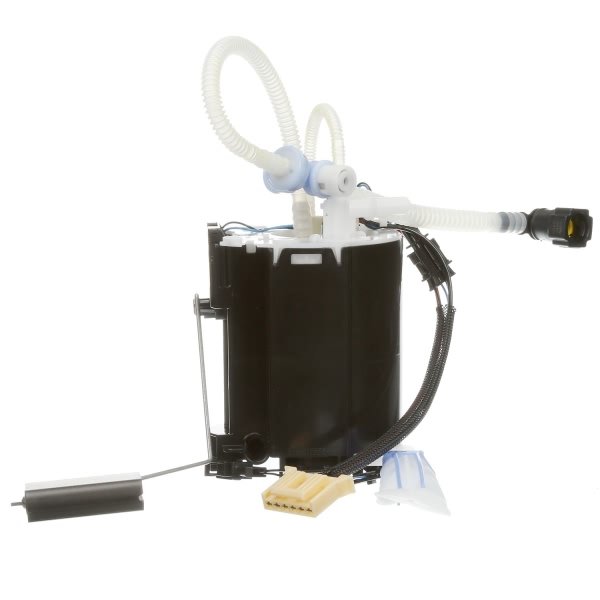

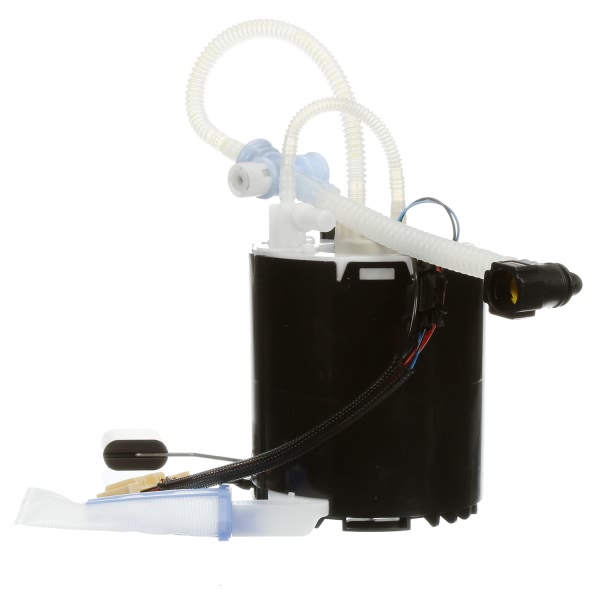

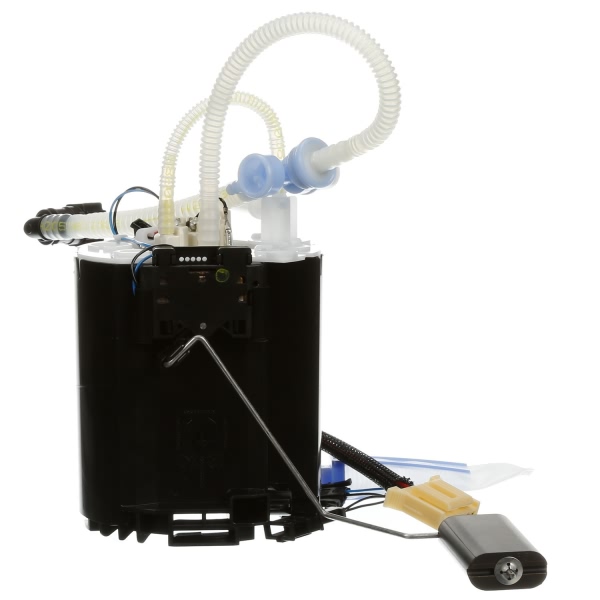

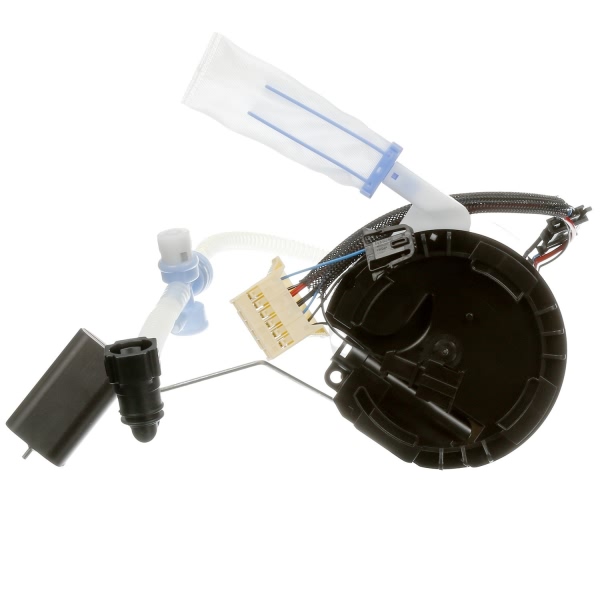

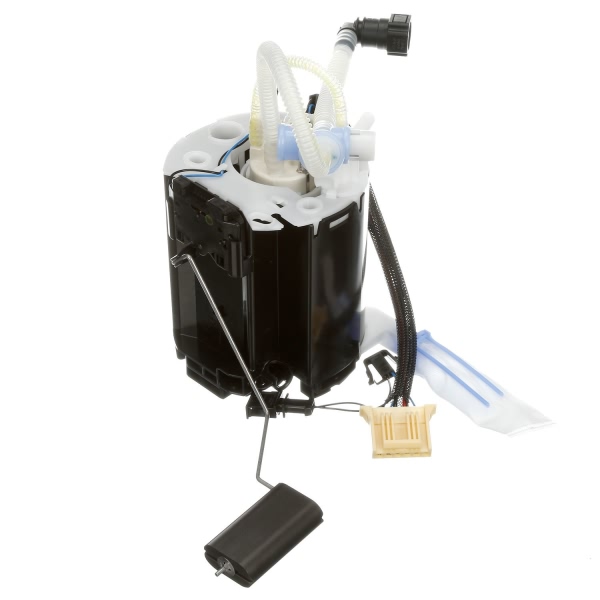

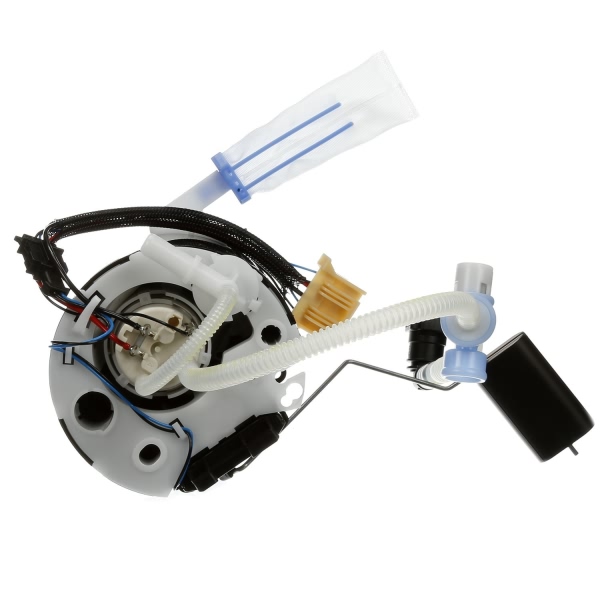

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 10 |
| Flow Rating | 95 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 95.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 1 |
| Outlet Type | Female Quick Connect |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 50.0 |
| Resistance Ohms Full | 1000.0 |
| Strainer Included | Yes |
| System Pressure | 65 psi |

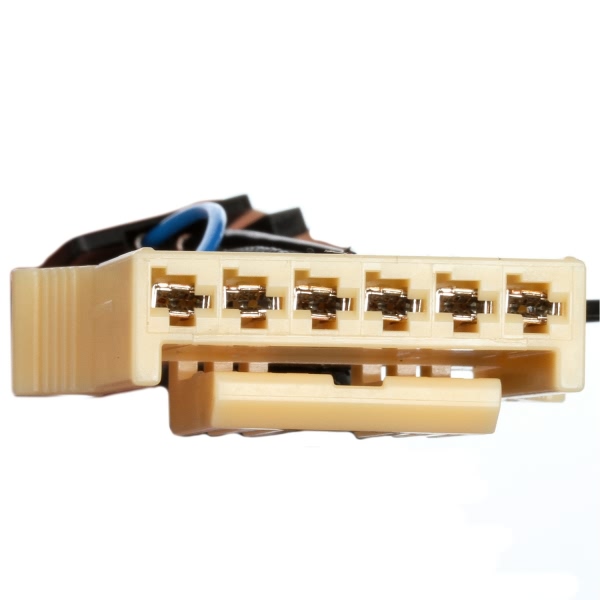

| Terminal Gender | Female |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| UPC | 689604240908 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2015 Jaguar XF | All Trims | 8 Cyl 5.0L |
| 2013-2015 Jaguar XF | All Trims | 4 Cyl 2.0L |
| 2013-2015 Jaguar XF | All Trims | 6 Cyl 3.0L |
| 2010-2015 Jaguar XFR | All Trims | 8 Cyl 5.0L |
| 2013-2015 Jaguar XFR-S | All Trims | 8 Cyl 5.0L |
| 2011-2019 Jaguar XJ | All Trims | 8 Cyl 5.0L |
| 2013-2019 Jaguar XJ | All Trims | 6 Cyl 3.0L |
| 2014-2017 Jaguar XJR | All Trims | 8 Cyl 5.0L |
| 2018-2019 Jaguar XJR575 | All Trims | 8 Cyl 5.0L |
