Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Autobest |
| Part Number | F2648A |

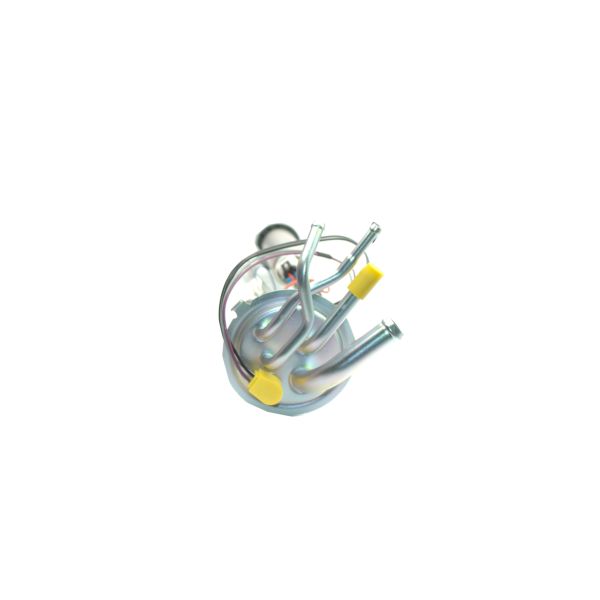

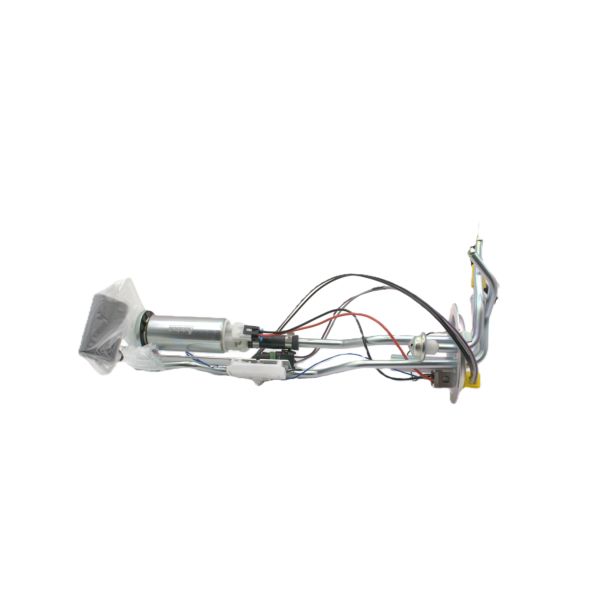

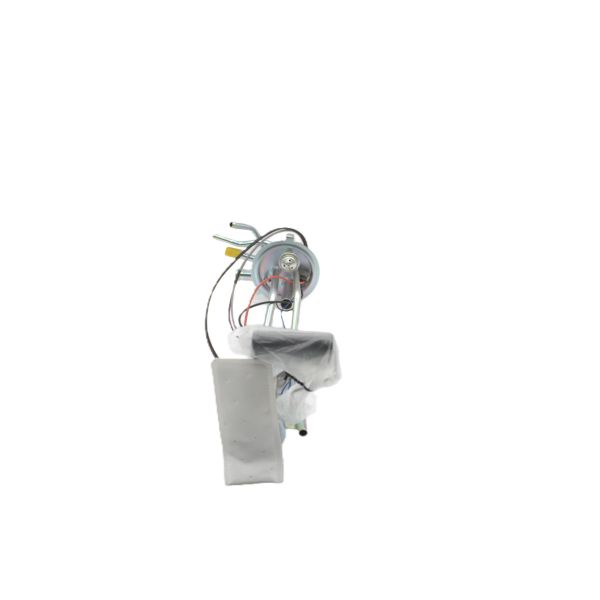

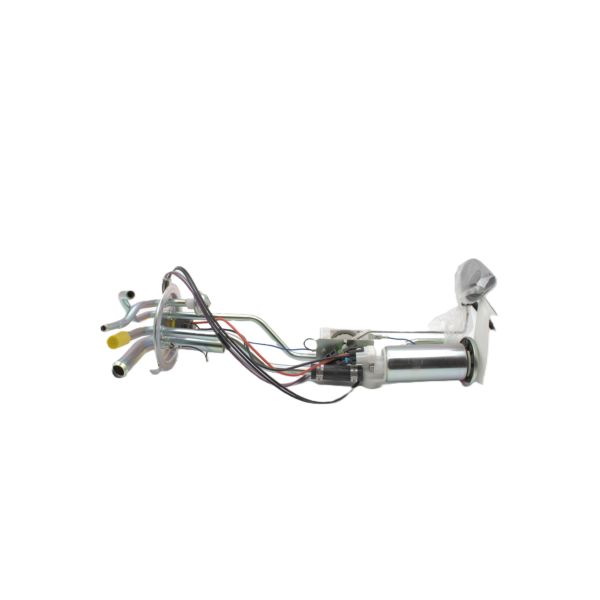

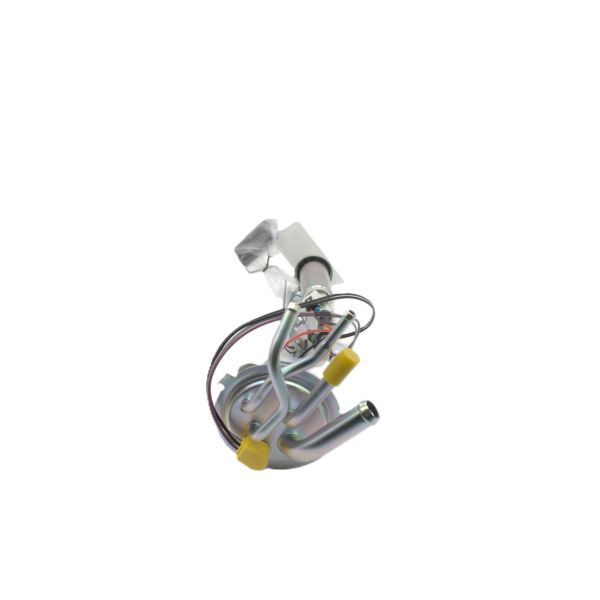

| Part Description | Fuel Pump And Sender Assembly |
| Average Current Draw(A) | 5 |
| Average Flow Rating(GPH) | 45 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Country of Orign | China |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |

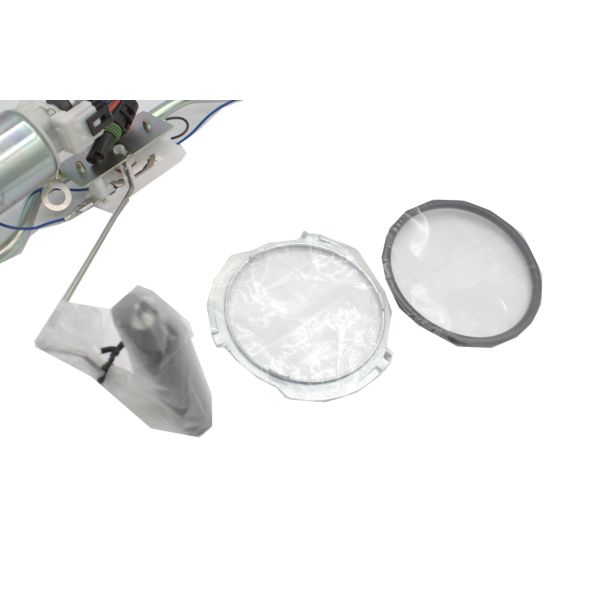

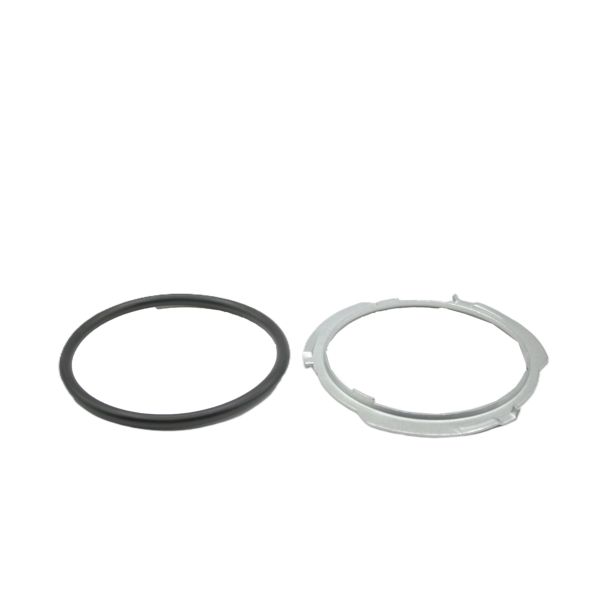

| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | NBR |
| Grade Type | Performance |
| In Tank or External | External |
| Inlet Size | 19 |
| Inlet Type | Strainer |
| Installation Warnings | No |
| Internal Or External Strainer | External |
| Maximum Pump Pressure (PSI) | 14.5 |
| Minimum Pump Pressure (PSI) | 24.5 |
| Mounting Hardware Included | No |
| Negative Ground | No |
| Outlet Quantity | 1 |
| Outlet Size | Hose Connect |
| Outlet Type | 10.8 |
| Product Height (in) | 6.02 |
| Product Length (in) | 14.17 |
| Product Width (in) | 5.43 |
| Pump Type | Vane |
| Regulator Included | NO |
| Resistance Ohms Empty | 2 |
| Resistance Ohms Full | 94 |
| Strainer Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | PIN |
| UPC | 00072845126481 |
| Voltage | 12V |
| Weight (lbs) | 1.46 |
| Wire Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1985-1991 Chevrolet S10 | All Trims | 4 Cyl 2.5L |
| 1986-1991 Chevrolet S10 | All Trims | 6 Cyl 2.8L |
| 1988-1991 Chevrolet S10 | All Trims | 6 Cyl 4.3L |
| 1985-1990 GMC S15 | All Trims | 4 Cyl 2.5L |
| 1986-1990 GMC S15 | All Trims | 6 Cyl 2.8L |
| 1988-1990 GMC S15 | All Trims | 6 Cyl 4.3L |
| 1991 GMC Sonoma | All Trims | 4 Cyl 2.5L |
| 1991 GMC Sonoma | All Trims | 6 Cyl 2.8L |
| 1991 GMC Sonoma | All Trims | 6 Cyl 4.3L |
