1994 Jeep Wrangler Fuel Pump
My Vehicle Change Vehicle
1994 Jeep Wrangler
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Product Fit
- Brands
- Prices
Product Specifications- Notes: with 15 Gal Fuel Tank;with 20 Gal Fuel Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 29 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 85.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 886931300408
- Voltage: 12 VDC
- Wiring Harness Included: No
- Part Description: 1994 Jeep Wrangler In Tank Electric Fuel Pump
Vehicle Fitment- 1994 Jeep Wrangler | S | 4 Cyl 2.5L
- 1994 Jeep Wrangler | Renegade | 6 Cyl 4.0L
- 1994 Jeep Wrangler | Sahara | 6 Cyl 4.0L
- 1994 Jeep Wrangler | SE | 6 Cyl 4.0L
Product Specifications- Notes: Except Export;Strainer required to validate the warranty: F311S
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 85
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 123.3
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845143464
- Voltage: 12V
- Weight (lbs): 0.64
- Wire Harness Included: No
- Part Description: 1994 Jeep Wrangler In Tank Electric Fuel Pump
Product Specifications- Notes: DENSO Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 11 mm
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: Yes
- Negative Ground: Yes
- New or Remanufactured: New
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511072442
- Voltage: 12 VDC
- Part Description: 1994 Jeep Wrangler Electric Fuel Pump
Vehicle Fitment- 1994 Jeep Wrangler | All Trims | 4 Cyl 2.5L
- 1994 Jeep Wrangler | All Trims | 6 Cyl 4.0L
OEM (Genuine) 1994 Jeep Wrangler Fuel Pump Module/Level Unit
PartNumber: 5003860AB$355.67 MSRP:$520.00You Save: $164.33 (32%)Product Specifications- Notes: Yj Series; 15 Gallon Tank; 15 Gallon
- Other Names: Fuel Gauge Sending Unit, Fuel Pump, Sending Unit
- Item Dimensions: 14.2 x 7.9 x 8.5 inches
- Item Weight: 1.20 Pounds
- Replaces: 5003860AA
- Part Description: 1994 Jeep Wrangler Fuel Pump Module/Level Unit
Vehicle Fitment- 1994 Jeep Wrangler | Base, Islander, Renegade, Rio Grande, S, Sahara, SE | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS
Product Specifications- Notes: Strainer required to validate the warranty: F311S
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 85
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 123.3
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.358
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845183460
- Voltage: 12V
- Weight (lbs): 0.64
- Wire Harness Included: No
- Part Description: 1994 Jeep Wrangler High Performance Electric Fuel Pump
Product Specifications- Notes: DENSO Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): 69EC5DCA841
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0180
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 83.0
- Strainer Width: 55.00
- Supplier Company Name: DENSO
- UPC: 042511095526
- Part Description: 1994 Jeep Wrangler Fuel Pump and Strainer Set
Vehicle Fitment- 1994 Jeep Wrangler | All Trims | 4 Cyl 2.5L
- 1994 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Notes: Yj Series; 20 Gallon Tank; 20 Gallon, All
- Other Names: Fuel Gauge Sending Unit, Fuel Pump, Sending Unit
- Item Dimensions: 14.5 x 7.8 x 9.1 inches
- Item Weight: 1.60 Pounds
- Replaces: 5003861AA
- Part Description: 1994 Jeep Wrangler Fuel Pump Module/Level Unit
Vehicle Fitment- 1994 Jeep Wrangler | Base, Islander, Renegade, Rio Grande, S, Sahara, SE | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS

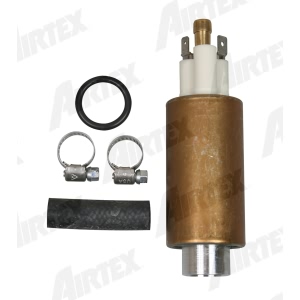

Product Specifications- Notes: Export w/20 Gallon Tank; Pump Only
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internet Product Code (IPC): FCE4F04C257
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 125
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7085
- Minimum Pressure (psi): 60.0
- Outlet Attachment: Outlet-HoseBarb
- Outlet Size: 5/16
- Outlet Type: HOSE BEAD
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044157489
- Voltage [V]: 12V
- Part Description: 1994 Jeep Wrangler Electric Fuel Pump
Vehicle Fitment- 1994 Jeep Wrangler | All Trims | 4 Cyl 2.5L
Product Specifications- Notes: with 1.5 Inch Diameter Pump;Contains Hoses & Clamps;with Plug Type Pump Electrical Connector;with 15 Gallon Tank;OE Replacement Pump
- Connector Gender: Male
- Connector Shape: Rectangle
- Fuel Pump Inlet Type: Strainer
- Fuel Sending Unit Included: No
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Count: 1
- Inlet Outside Diameter: 11.0
- Internal or External: Internal
- Internet Product Code (IPC): E8B947CDEF4
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Length (Inch): 114.0
- Maximum Free Flow Rate (gph): 45
- Maximum Pressure (psi): 100
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8229
- Minimum Free Flow Rate: 33.0
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure (psi): 80
- Mounting Hardware Included: No
- Muffler Outlet Diameter (in): 9.0
- Negative Ground: Yes
- Outlet Attachment: Outlet-HoseConnection
- Outlet Count: 1
- Outlet Fitting Thread Size: 5/16 Inch
- Outlet Quantity: 1
- Outlet Size: Outlet - .348
- Outlet Type: Hose Barb
- Package Contents: Pump and Kit
- Pump Type: Electric
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- Supplier Company Name: Airtex Products
- Terminal Quantity: 2
- Terminal Type: Blade
- Universal Or Specific Fit: Specific
- UPC: 080044102496
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 1994 Jeep Wrangler In-Tank Electric Fuel Pump
Vehicle Fitment- 1994 Jeep Wrangler | All Trims | 4 Cyl 2.5L
- 1994 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Notes: Export Only;with 20 Gallon Tank;with Leaded Fuel;with 20 Gallon Tank;Use F3006 and F212S if original OE assembly is in the vehicle;If original OE assembly has been replaced use F4346 and F311S;with 20 Gallon Tank;Use F3006 and F212S if original OE assembly is in the vehicle;If original OE assembly has been replaced use F4346 and F311S
- Average Current Draw(A): 6
- Average Flow Rating(GPH): 110
- Connector Gender: Male
- Connector Quantity: 2
- Connector Shape: PIN
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.89
- Inlet Type: Filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.362
- Outlet Type: Male tube / 1 barb
- Product Height (in): 1.44
- Product Length (in): 5.04
- Product Width (in): 1.44
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845130068
- Voltage: 12V
- Weight (lbs): 0.72
- Part Description: 1994 Jeep Wrangler Electric Fuel Pump
Vehicle Fitment- 1994 Jeep Wrangler | All Trims | 4 Cyl 2.5L
Product Specifications- Notes: DENSO Mfg. Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): AAAC0A4CF01
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- Meets or Exceeds Original Equipment Manufacture Specifications: YES
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0167
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 103.0
- Strainer Width: 55.00
- Supplier Company Name: DENSO
- UPC: 042511079915
- Part Description: 1994 Jeep Wrangler Fuel Pump And Strainer Set
Vehicle Fitment- 1994 Jeep Wrangler | All Trims | 4 Cyl 2.5L
- 1994 Jeep Wrangler | All Trims | 6 Cyl 4.0L
