1994 Mercury Tracer Fuel Pump
My Vehicle Change Vehicle
1994 Mercury Tracer
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Product Fit
- Brands
- Prices
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 41 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Location: In Tank
- Pump Type: Electric
- Resistance Ohms Empty: 16.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 36 psi
- Terminal Gender: Male
- Terminal Quantity: 6
- Terminal Type: Pin
- UPC: 689604233399
- Voltage: 12.0 VDC

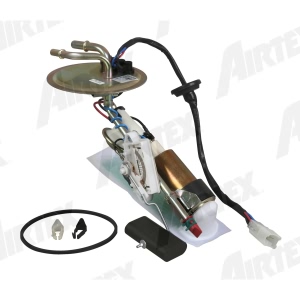

- Part Description: 1994 Mercury Tracer Fuel Pump And Sender Assembly
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: with Plastic Pump Outlet;Includes Hose, Clamps, Isolator, & Tank Seal;with Plastic Pump Outlet;Includes Hose, Clamps, Isolator, & Tank Seal;Strainer required to validate the warranty: F241S
- Average Current Draw(A): 6
- Average Flow Rating(GPH): 110
- Connector Gender: Male
- Connector Quantity: 2
- Connector Shape: PIN
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.89
- Inlet Type: Filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.36
- Outlet Type: Male tube / 1 barb
- Product Height (in): 1.44
- Product Length (in): 5.04
- Product Width (in): 1.44
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845110763
- Voltage: 12V
- Weight (lbs): 0.72
- Part Description: 1994 Mercury Tracer In Tank Electric Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 37 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 117.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604215227
- Voltage: 12 VDC
- Wiring Harness Included: No
- Part Description: 1994 Mercury Tracer In Tank Electric Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L

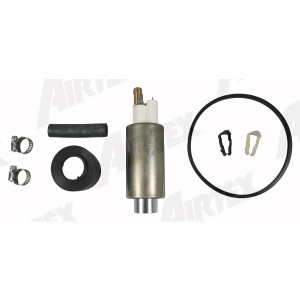

Product Specifications- Notes: Plastic Pump Outlet; Includes Tank Seal, Wires, Hose, Isolator & Clamps
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internet Product Code (IPC): ADB7546CE29
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 90
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2042
- Minimum Pressure (psi): 80
- Outlet Attachment: Outlet-HoseBarb
- Outlet Size: Outlet - 5/16
- Outlet Type: HOSE BEAD
- Package Contents: Pump and Kit
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044089322
- Voltage [V]: 12V
- Part Description: 1994 Mercury Tracer In-Tank Electric Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Escort, Tracer; 1.8 Liter, W/O Sender;1.9 Liter, W/O Sender
- Part Description: 1994 Mercury Tracer Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | Base, LTS, Trio | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L GAS
Product Specifications- Notes: DENSO Fuel Pump & Strainer Kit;DENSO Mfg. Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): 9FF7AFF3483
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0138
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 199.0
- Strainer Width: 64.00
- Supplier Company Name: DENSO
- UPC: 042511073388
- Part Description: 1994 Mercury Tracer Fuel Pump And Strainer Set
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: DENSO Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 11.000 mm
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511073647
- Voltage: 12 VDC
- Part Description: 1994 Mercury Tracer Electric Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Plastic Pump Outlet; Includes Tank Seal, Isolator, Hose & Clamps
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internet Product Code (IPC): 9D0F70969D1
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2065
- Minimum Pressure (psi): 51.0
- Outlet Attachment: Outlet-HoseBarb
- Outlet Size: Outlet - 5/16
- Outlet Type: HOSE BARB
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044115373
- Voltage [V]: 12V
- Part Description: 1994 Mercury Tracer In-Tank Electric Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
Product Specifications- Notes: Includes Fuel Pump, Fuel Strainer and Tank Seal
- Average Current Draw(A): 5.3
- Average Flow Rating(GPH): 38
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.889
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 95
- Minimum Pump Pressure (PSI): 90
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect, Return Line
- Product Height (in): 4.45
- Product Length (in): 10.24
- Product Width (in): 6.3
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 15
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 6
- Terminal Type: PIN
- UPC: 00072845111623
- Voltage: 12V
- Weight (lbs): 3.07
- Wire Harness Included: No
- Part Description: 1994 Mercury Tracer Electric Fuel Pump
Product Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 4E5BE1DCFD5
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 80
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2105S
- Minimum Pressure (psi): 131.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT, RETURN LINE
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044136194
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 1994 Mercury Tracer Electric Fuel Pump
Vehicle Fitment- 1994 Mercury Tracer | All Trims | 4 Cyl 1.8L
- 1994 Mercury Tracer | All Trims | 4 Cyl 1.9L
