1995 GMC Safari Fuel Pump
My Vehicle Change Vehicle
1995 GMC Safari
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices
Product Specifications- Notes: with Harness Code # VPP;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 4
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 4
- Outlet Type: Quick Connect
- Pump Location: In Tank
- Pump Type: Electric
- Resistance Ohms Empty: 1.0
- Resistance Ohms Full: 90.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Female
- Terminal Quantity: 3
- Terminal Type: Pin
- UPC: 689604187340
- Voltage: 13.5 VDC
- Part Description: 1995 GMC Safari Fuel Pump And Sender Assembly
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Includes Hose, Clamps, Rubber Sleeve, & Tank Seals;Strainer required to validate the warranty: F123S;Recommend to replace Wiring Harness FW900
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 34.34
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.748
- Inlet Type: filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 101.53
- Minimum Pump Pressure (PSI): 79.77
- Outlet Quantity: 1
- Outlet Size: 0.31
- Outlet Type: Male Quick Connect
- Product Height (in): 1.449
- Product Length (in): 5.157
- Product Width (in): 1.449
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845122810
- Voltage: 12V
- Weight (lbs): 0.61
- Part Description: 1995 GMC Safari In Tank Electric Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 35 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 85.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 689604219225
- Voltage: 14 VDC
- Wiring Harness Included: No
- Part Description: 1995 GMC Safari In Tank Electric Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Includes Hose, Clamps, Rubber Sleeve, & Tank Seals;Strainer required to validate the warranty: F123S;Recommend to replace Wiring Harness FW900
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 34.34
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Gasket or Seal Included: Yes
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.748
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 101.53
- Minimum Pump Pressure (PSI): 79.77
- Outlet Quantity: 1
- Outlet Size: 0.315
- Outlet Type: Hose
- Product Height (in): 1.449
- Product Length (in): 5.157
- Product Width (in): 1.449
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845162816
- Voltage: 12V
- Weight (lbs): 0.61
- Part Description: 1995 GMC Safari High Performance Electric Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Astro, Safari; 4.3l; Cpi, Mpi; 1985-99, W/High Output
- Other Names: Fuel Pump
- Item Dimensions: 7.4 x 7.1 x 6.1 inches
- Item Weight: 2.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 25116853
- Part Description: 1995 GMC Safari Fuel Pump
Vehicle Fitment- 1995 GMC Safari | Base, GT, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
Product Specifications- Notes: Includes Two Tank Seals, Hose, Rubber Sleeve & Clamps
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Hose Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 1995 GMC Safari In-Tank Electric Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: OE Replacement Fuel Pump
- Gasket or Seal Included: No
- Gaskets Included: Yes
- Inlet Outside Diameter: 19.000
- Internal or External: Internal
- Internet Product Code (IPC): 2D1C3A0DC10
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 951-5016
- MFG Name: DENSO
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Package Contents: Fuel Pump
- Regulator Included: NO
- Seal And Lock Ring Included: NO
- Strainer Included: NO
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511161306
- Voltage: 12
- Part Description: 1995 GMC Safari Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Discontinued; 12V; 50PSI; 27GPH HI; IN-TANK
- UPC: 760687050209
- Part Description: 1995 GMC Safari Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L

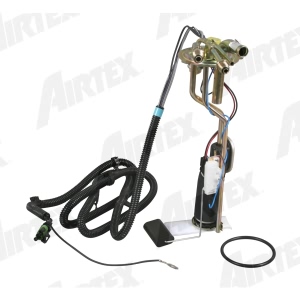

Product Specifications- Notes: Exc Kuwait, Saudi Arabia, Gulf States Export Models; Incls Fuel Pump, Sending Unit, Float, Fuel Strainer & Tank Seal
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Count: 1
- Inlet Type: STRAINER
- Internet Product Code (IPC): 74B868C3C06
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 90
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3650S
- Minimum Pressure (psi): 80
- Outlet Attachment: Outlet-QuickConnect
- Outlet Count: 1
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044021391
- Part Description: 1995 GMC Safari Electric Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Exc Kuwait, Saudi Arabia, Gulf States Export Models;Incls Fuel Pump, Sending Unit, Float, Fuel Strainer & Tank Seal;Exc Kuwait, Saudi Arabia, Gulf States Export Models;Incls Fuel Pump, Sending Unit, Float, Fuel Strainer & Tank Seal
- Average Current Draw(A): 7
- Average Flow Rating(GPH): 40
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 90
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Threaded
- Product Height (in): 5.12
- Product Length (in): 14.17
- Product Width (in): 7.09
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 2
- Resistance Ohms Full: 94
- Strainer Included: Yes
- Terminal Gender: Female
- Terminal Quantity: 3
- Terminal Type: PIN
- UPC: 00072845126610
- Voltage: 12V
- Weight (lbs): 2.53
- Wire Harness Included: No
- Part Description: 1995 GMC Safari Electric Fuel Pump
Vehicle Fitment- 1995 GMC Safari | All Trims | 6 Cyl 4.3L
