1996 Chevrolet S10
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices

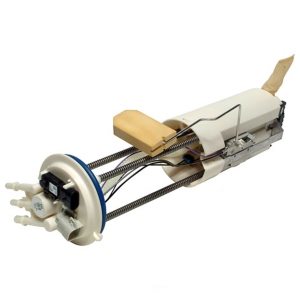

Delphi® Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: FG0027Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 12 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 0.1
- Resistance Ohms Full: 90.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604059647
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 1996 Chevrolet S10 Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 4 Cyl 2.2L
$177.25

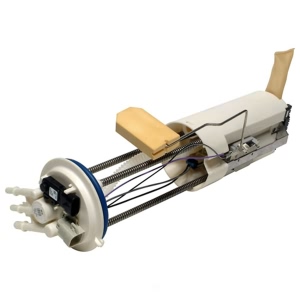

Delphi® Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: FG0028Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 18 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 0.1
- Resistance Ohms Full: 90.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604059654
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 1996 Chevrolet S10 Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 6 Cyl 4.3L
$167.40

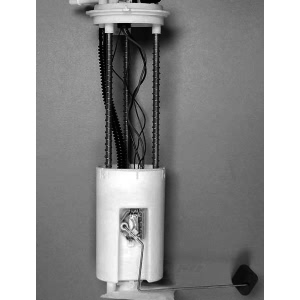

Autobest® Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: F2931AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Gasket or Seal Included: Yes
- Inlet Size: 0.748
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 55.5
- Maximum Pump Pressure (PSI): 101.5
- Minimum Free Flow (GPH): 47.6
- Minimum Pump Pressure (PSI): 72.5
- Outlet Size: 0.375
- Outlet Type: Quick Connect
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845129314
- Part Description: 1996 Chevrolet S10 Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 6 Cyl 4.3L
$64.85

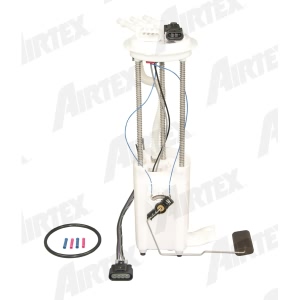

Airtex® In-Tank Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: E3920MProduct Specifications- Notes: Turbine Pump Technology; Includes Wiring Harness, Terminals & Tank Seal
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect, Return Line
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 1996 Chevrolet S10 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 6 Cyl 4.3L
Autobest® Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: F2934AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Gasket or Seal Included: Yes
- Inlet Size: 0.748
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 50.2
- Maximum Pump Pressure (PSI): 101.5
- Minimum Free Flow (GPH): 42.3
- Minimum Pump Pressure (PSI): 72.5
- Outlet Size: 0.375
- Outlet Type: Quick Connect
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845129345
- Part Description: 1996 Chevrolet S10 Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 4 Cyl 2.2L
OEM (Genuine) 1996 Chevrolet S10 Fuel Tank Fuel Pump Module Kit
PartNumber: 19331275
Product Specifications- Notes: 4.3 Liter, Cpi; S-Series; 4.3L
- Other Names: Fuel Pump, Fuel Sender Unit, Sending Unit
- Item Dimensions: 21.3 x 8.0 x 5.8 inches
- Item Weight: 3.00 Pounds
- Replaces: 19179616, 25163487
- Part Description: 1996 Chevrolet S10 Fuel Tank Fuel Pump Module Kit
Vehicle Fitment- 1996 Chevrolet S10 | Base, LS, SS, ZR2 | 6 Cyl 4.3 L GAS
Denso® Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: 953-5015Product Specifications- Notes: Module Code SFM or SFZ; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 2F96EEBDECA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5015
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511163294
- Part Description: 1996 Chevrolet S10 Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 4 Cyl 2.2L
Hella® Fuel Pump for 1996 Chevrolet S10
PartNumber: H75031041Product Specifications- Notes: Discontinued; 12V
- UPC: 760687051985
- Part Description: 1996 Chevrolet S10 Fuel Pump
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 6 Cyl 4.3L
OEM (Genuine) 1996 Chevrolet S10 Module Kit, Fuel Tank Fuel Pump
PartNumber: 19179984Product Specifications- Notes: 2.2 Liter; S-Series; 2.2L
- Other Names: Fuel Pump, Fuel Sender Unit
- Item Dimensions: 8.3 x 5.3 x 20.4 inches
- Item Weight: 3.20 Pounds
- Replaced by: 19331285
- Part Description: 1996 Chevrolet S10 Module Kit, Fuel Tank Fuel Pump
Vehicle Fitment- 1996 Chevrolet S10 | Base, LS | 4 Cyl 2.2 L GAS
Denso® Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: 953-5016Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 8E526D4D968
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5016
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511163300
- Part Description: 1996 Chevrolet S10 Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 6 Cyl 4.3L
Airtex® In-Tank Fuel Pump Module Assembly for 1996 Chevrolet S10
PartNumber: E3923MProduct Specifications- Notes: Turbine Pump Technology; Includes Wiring Harness, Terminals & Tank Seal
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 9F0AB5E0F58
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 90
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3923M
- Minimum Pressure (psi): 80
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT, RETURN LINE
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044321217
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 1996 Chevrolet S10 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet S10 | All Trims | 4 Cyl 2.2L
