1999 Dodge Dakota Fuel Pump
My Vehicle Change Vehicle
1999 Dodge Dakota
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices
Product Specifications- Notes: with 22 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 28 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 224.0
- Resistance Ohms Full: 19.0
- Strainer Included: Yes
- System Pressure: 49 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604061725
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

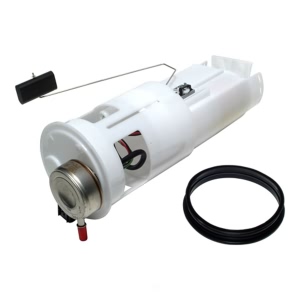

- Part Description: 1999 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Notes: with 22 Gallon Tank;with 22 Gallon Tank;with 22 Gallon Tank;with 22 Gallon Tank;with 22 Gallon Tank
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 30.4
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 52.8
- Minimum Pump Pressure (PSI): 48.7
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 5.98
- Product Length (in): 17.13
- Product Width (in): 8.94
- Pump Type: Rollervane
- Regulator Included: Yes
- Resistance Ohms Empty: 224
- Resistance Ohms Full: 24
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131270
- Voltage: 12V
- Weight (lbs): 3.67
- Wire Harness Included: No
- Part Description: 1999 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Notes: without Roll-Over Valve;with 15 Gallon Tank;without Return Line;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 28 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 224.0
- Resistance Ohms Full: 19.0
- Strainer Included: Yes
- System Pressure: 49 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604061718
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

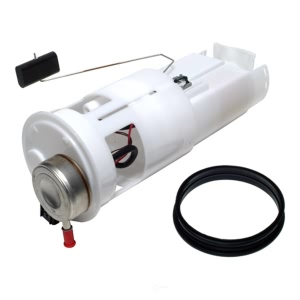

- Part Description: 1999 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Notes: with 15 Gallon Tank;with 15 Gallon Tank;with 15 Gallon Tank;with 15 Gallon Tank;with 15 Gallon Tank
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 35.7
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 52.8
- Minimum Pump Pressure (PSI): 48.7
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 5.98
- Product Length (in): 17.13
- Product Width (in): 8.94
- Pump Type: Rollervane
- Regulator Included: Yes
- Resistance Ohms Empty: 224
- Resistance Ohms Full: 25
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131256
- Voltage: 12V
- Weight (lbs): 3.49
- Wire Harness Included: No
- Part Description: 1999 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Notes: with 22 Gallon Tank
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 8F35D96C6B4
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7116M
- Minimum Pressure (psi): 50.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044380672
- Voltage [V]: 12V
- Wiring Harness Included: No

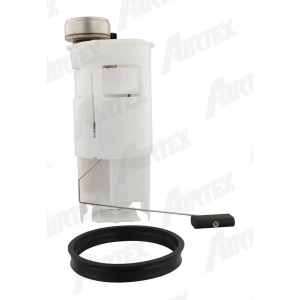

- Part Description: 1999 Dodge Dakota In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 19.4 x 10.8 x 6.9 inches
- Item Weight: 4.80 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 5012273AF
- Part Description: 1999 Dodge Dakota Fuel Pump Module/Level Unit
Product Specifications- Notes: w/15 Gallon Fuel Tank; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): DE52F628727
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3020
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511105850
- Part Description: 1999 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 17.8 x 7.1 x 11.3 inches
- Item Weight: 4.40 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 4897920AD
- Part Description: 1999 Dodge Dakota Fuel Pump Module Compatible
Product Specifications- Notes: w/22 Gallon Fuel Tank; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 84C5E867BBA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3021
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511105867
- Part Description: 1999 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
Product Specifications- Notes: with 15 Gallon Tank
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure Rate (psi): 110
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 90
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 1999 Dodge Dakota In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1999 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 1999 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.2L
- 1999 Dodge Dakota | All Trims | 8 Cyl 5.9L
