2000 Chevrolet Venture A/C Clutch
My Vehicle Change Vehicle
2000 Chevrolet Venture
< Back to View All
A/C & Heating
- Department
- Brands
- Prices
$65.66Product Specifications- Notes: w/ V5 Compressor; New
- Belt Type: Serpentine
- Belt Width IN: 0.875
- Can Size: w/ Coil
- Clutch Maximum Diameter: 4.250
- Coil: w/ Coil
- Coil Number: [48257] / Clutch Assembly
- Coil Voltage: 12
- Color: Black
- Groove: 6
- Lead Wire : Lead Wires
- Material: Steel
- Meets / Exceeds OEM: Yes
- Mounting Type: Press Fit
- Pulley Number: [48222] / Clutch Assembly
- Rotation: CCW-CW
- Style: Harrison V5 Variable Displacement
- Thermal Or Non Thermal: NR
- UPC: 096361476547
- Part Description: 2000 Chevrolet Venture A C Compressor Clutch
Vehicle Fitment- 2000 Chevrolet Venture | All Trims | All Engines

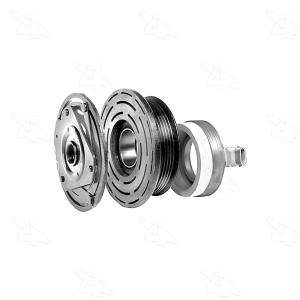

Four Seasons® Reman GM Harrison V5 Variable Displacement Clutch Assembly w/ Coil for 2000 Chevrolet Venture
PartNumber: 48654Product Specifications- Notes: w/ V5 Compressor; Reman
- Belt Type: Serpentine
- Belt Width IN: 0.875
- Can Size: w/ Coil
- Clutch Maximum Diameter: 4.250
- Coil: w/ Coil
- Coil Number: [48257] / Clutch Assembly
- Coil Voltage: 12
- Color: Black
- Groove: 6
- Lead Wire : One Piece Coil
- Material: Steel
- Meets / Exceeds OEM: Yes
- Mounting Type: Press Fit
- Pulley Number: [48222] / Clutch Assembly
- Rotation: CCW-CW
- Style: Harrison V5 Variable Displacement
- Thermal Or Non Thermal: NR
- UPC: 096361486546
- Part Description: 2000 Chevrolet Venture Reman GM Harrison V5 Variable Displacement Clutch Assembly w/ Coil
Vehicle Fitment- 2000 Chevrolet Venture | All Trims | All Engines
Product Specifications- Notes: All Models
- Item Dimensions: 7.1 x 6.6 x 2.7 inches
- Item Weight: 1.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 6552372
- Part Description: 2000 Chevrolet Venture Clutch Plate & Hub Assembly
Vehicle Fitment- 2000 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
Product Specifications- Notes: 1997-00
- Item Dimensions: 5.7 x 5.6 x 3.3 inches
- Item Weight: 1.50 Pounds
- Fitment Type: Direct Replacement
- Replaces: 06552422, 6552422
- Part Description: 2000 Chevrolet Venture Clutch Coil Assembly
Vehicle Fitment- 2000 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
Product Specifications- Notes: 1997-00
- Item Dimensions: 3.0 x 3.2 x 1.0 inches
- Item Weight: 0.60 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2000 Chevrolet Venture Bearing, A/C Compressor Pulley
Vehicle Fitment- 2000 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
Product Specifications- Notes: 1997-00
- Item Dimensions: 6.5 x 5.9 x 2.4 inches
- Item Weight: 3.30 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2000 Chevrolet Venture Pulley With Bearing
Vehicle Fitment- 2000 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
Product Specifications- Notes: 1997-00
- Other Names: Clutch, Clutch Drive, Clutch Plate & Hub Assembly
- Item Dimensions: 7.1 x 7.1 x 1.6 inches
- Item Weight: 1.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 6552385
- Part Description: 2000 Chevrolet Venture Clutch Plate & Hub Assembly
Vehicle Fitment- 2000 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
FAQ for A/C Clutch Repair
Q: How to remove the Compressor Clutch Coil?
A:
First, you should remove the compressor clutch plate and hub assembly as well as the compressor rotor and bearing assembly. Next, you should mark the clutch coil terminal location on the compressor front head and then remove the compressor clutch coil from the compressor.
By Bob
GM Specialist
01/11/2022Q: What special tools will be used in the installation of the Compressor Clutch Coil?
A:
The J 33024 Clutch Coil Installer Adaptor, J 33025 Clutch Coil Puller Legs, J 8433 Compressor Pulley Puller, J 8433-3 Forcing Screw, and J 41790 Compressor Holding Fixture shall be used for the installation of the Compressor Clutch Coil.
By Bob
GM Specialist
01/11/2022Q: How to install the Compressor Clutch Coil?
A:
You should install the compressor clutch rotor and bearing assembly as well as the compressor clutch plate and hub assembly.
By Bob
GM Specialist
01/11/2022Q: What special tools will be used in the removal of the Compressor Clutch Coil?
A:
The J 41790 Compressor Holding Fixture, J 8433 Compressor Pulley Puller, J 8433-3 Forcing Screw, J 33025 Clutch Coil Puller Legs, and J 33023-A Puller Pilot shall be used for the removal of the Compressor Clutch Coil.
By Bob
GM Specialist
01/11/2022Q: What is the recommended torque for the compressor bolts?
A:
The recommended torque is 50 N.m (37 lb-ft)).
By Bob
GM Specialist
01/11/2022
