Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 5
Flow Rating: 40 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 50.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 2
Outlet Type: Hose
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 110.0
Resistance Ohms Full: 3.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 5
Terminal Type: Blade
UPC: 689604233085
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

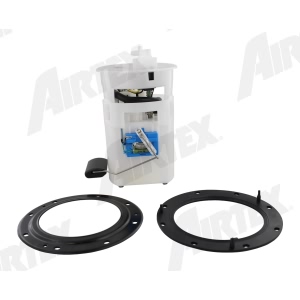

Part Description: 2001 Hyundai Elantra Fuel Pump Module Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 5
Flow Rating: 29 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 85.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Hose Bead
Pump Type: Electric
Strainer Included: No
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Pin
UPC: 886931300408
Voltage: 12 VDC
Wiring Harness Included: No
Part Description: 2001 Hyundai Elantra In Tank Electric Fuel Pump
