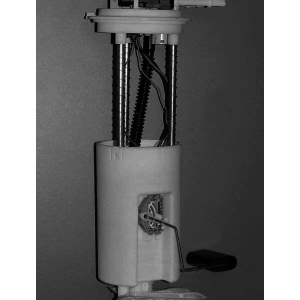

OEM (Genuine) 2001 Oldsmobile Bravada Module
PartNumber: 19331269$287.86 MSRP:$543.15You Save: $255.29 (48%)Product Specifications- Other Names: Fuel Pump, Module
- Item Dimensions: 16.5 x 8.3 x 5.8 inches
- Item Weight: 2.80 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 19369939
- Part Description: Module
Product Specifications- Notes: with Plastic Tank;Updated design w/Check Valve. Can be used to replace fuel pump modules built w/or w/o check valve; To be used only when failed fuel module cover contains a 3-pin black pressure sensor; Original OE design had a 2x2 connector, OE design upgraded to a 1x4 connector; A 1x4 splice kit included for vehicles w/2x2 connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 24 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604082485
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: Fuel Pump Module Assembly
Product Specifications- Notes: Plastic Fuel Tank
- Accessories Included: yes
- Connector Pins Qty On Main Connector: 4PINS
- Fuel Level Sensor Resitance Range: 39-250
- Fuel Tube Connection Type: Quick Connect
- GPH (Gallons Per Hour Flow): 48.6-57.7
- Maximum Air Pressure: 79.75-123.25
- OE Part Number: 15207041
- Strainer Included: yes
- UPC: 762405824154
- Part Description: Fuel Pump Module Assembly
Product Specifications- Notes: Includes Seal;with Harness;Turbine Pump Technology
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 70
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect, Return Line
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044516569
- Warranty: Lifetime Limited Warranty
- Part Description: In-Tank Fuel Pump Module Assembly
Product Specifications- Notes: with Turbine Pump Technology;Includes Tank Seal, Connectors, & Wire Harness
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 8.66
- Product Length (in): 12.6
- Product Width (in): 8.66
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845129031
- Voltage: 12V
- Weight (lbs): 2.21
- Wire Harness Included: Yes
- Part Description: Fuel Pump Module Assembly
Product Specifications- Notes: with Plastic Tank;Original design w/o Check Valve. Must only be used to replace fuel pump modules built w/o check valve. If you are unsure if your module has a check valve, then use FG0287; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 18 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604059890
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: Fuel Pump Module Assembly
Product Specifications- Notes: DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 00821518BFA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0021
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193390
- Part Description: Fuel Pump Module Assembly
Product Specifications- Notes: Discontinued; 12V
- UPC: 760687052029
- Part Description: Fuel Pump
Product Specifications- Notes: S-Series; 4.3l; Blazer/Jimmy/Bravada; 2 Door
- Other Names: Fuel Pump, Module
- Fitment Type: Direct Replacement
- Replaces: 19331273, 25344816, 25178732, 25314775, 19177256, 25320511, 25168012
- Part Description: Module
Product Specifications- Notes: Sell out reorder 953-0021
- Gaskets Included: Yes
- Internet Product Code (IPC): EC2F71E3408
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5032
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511163461
- Part Description: Fuel Pump Module Assembly
Product Specifications- Part Description: Fuel Pump Module Assembly
