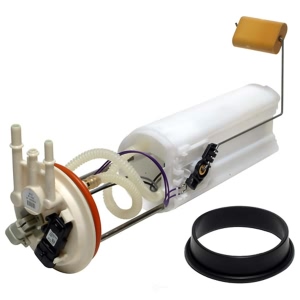

OEM (Genuine) 2003 Chevrolet Express 3500 Fuel Pump
PartNumber: 19303373$393.53 MSRP:$742.52You Save: $348.99 (48%)Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; 6.6 Liter Diesel
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 19.7 x 12.7 x 8.6 inches
- Item Weight: 2.80 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19152157, 25348387, 25369312
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump
Vehicle Fitment- 2003 Chevrolet Express 3500 | Base, LS | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
Product Specifications- Notes: with Federal Emission System;with 55 Gallon Tank;RPO Code NF4, NF2,NF9 or NT9;RPO Code NE7;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604084328
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 42.2
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Threaded
- Product Height (in): 4.53
- Product Length (in): 14.37
- Product Width (in): 7.68
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125958
- Voltage: 12V
- Weight (lbs): 2.76
- Wire Harness Included: Yes
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Product Specifications- Notes: RPO Code NL1;with Federal Emission System;with 35 Gallon Tank;RPO Code NF4 or NTP;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604084304
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L
- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: with 1 Connectors;with 2 Tube Ports;without 55 Gallon Tank
- Average Current Draw(A): 9.5
- Average Flow Rating(GPH): 34.3
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 4.72
- Product Length (in): 14.06
- Product Width (in): 6.89
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 37
- Resistance Ohms Full: 252
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125859
- Voltage: 12V
- Weight (lbs): 2.55
- Wire Harness Included: No
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: with 55 Gallon Tank;RPO Code NC8;RPO Code NE7;with California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604084335
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: with 2 Electrical Connectors, 55 Gal. Tank, Wiring Harness Replacement Recommended,Cutaway Van;Incls Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal,Cutaway Van
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 4.43
- Product Length (in): 14.21
- Product Width (in): 6.93
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 37
- Resistance Ohms Full: 252
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845126139
- Voltage: 12V
- Weight (lbs): 2.29
- Wire Harness Included: Yes
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: Exc 55 Gallon Fuel Tank, Exc Calif; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 9E0D1D7B443
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5113
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511164277
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: Fed Emissions; w/o 55 Gallon Tank; 2 Tube Port; w/1 Electrical Connectors
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 9D0A0A052FE
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3574M
- Minimum Pressure (psi): 90
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044010968
- Wiring Harness Included: No
- Part Description: 2003 Chevrolet Express 3500 Electric Fuel Pump
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: Discontinued; Fed; 55 Gallon Gas Tank
- UPC: 760687052111
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: Exc 55 Gallon Fuel Tank, Calif; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 9DBB652BE35
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5114
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511164284
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: w/Calif Emissions; w/o 55 Gallon Tank; 2 Tube Port; w/2 Electrical Connectors
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure Rate (psi): 95
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 Chevrolet Express 3500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: w/55 Gallon Fuel Tank, Exc Calif; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 9D0EF7141F9
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5115
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511164291
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: w/2 Electrical Connectors, 55 Gal. Tank, Wiring Harness Replacement Recommended; Incls Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Count: 1
- Inlet Type: STRAINER
- Internet Product Code (IPC): B3BB82DF9C5
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3602M
- Minimum Pressure (psi): 90
- Outlet Attachment: Outlet-QuickConnect
- Outlet Count: 1
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044011156
- Part Description: 2003 Chevrolet Express 3500 Electric Fuel Pump
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: with 2 Connectors;with 2 Tube Ports;with California Emissions System;without 55 Gallon Tank;Includes Tank Seal, Connectors, & Wire Harness
- Average Current Draw(A): 7
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 95
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 4.72
- Product Length (in): 13.78
- Product Width (in): 6.48
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125866
- Voltage: 12V
- Weight (lbs): 2.62
- Wire Harness Included: Yes
- Part Description: 2003 Chevrolet Express 3500 Electric Fuel Pump
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: w/55 Gallon Fuel Tank, Calif; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): D71B84BCAC8
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5116
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511164307
- Part Description: 2003 Chevrolet Express 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
Product Specifications- Notes: Fed Emissions; w/55 Gallon Tank; 3 Tube Port; w/1 Electrical Connectors
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): E2CE561E6C8
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 115
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3674M
- Minimum Pressure (psi): 100
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044012290
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2003 Chevrolet Express 3500 Electric Fuel Pump
Vehicle Fitment- 2003 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L
