2003 GMC Sonoma Fuel Pump
My Vehicle Change Vehicle
2003 GMC Sonoma
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 18 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604060605
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
Product Specifications- Average Current Draw(A): 9
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 130.5
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 7.91
- Product Length (in): 16.1
- Product Width (in): 8.07
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125774
- Voltage: 12V
- Weight (lbs): 2.44
- Wire Harness Included: Yes
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 21 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 59 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604120668
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 4 Cyl 2.2L
Product Specifications- Average Current Draw(A): 7.5
- Average Flow Rating(GPH): 35.7
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 6.97
- Product Length (in): 15.55
- Product Width (in): 9.69
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125743
- Voltage: 12V
- Weight (lbs): 2.39
- Wire Harness Included: Yes
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 18 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604082461
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
Product Specifications- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 48
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Maximum Pump Pressure (PSI): 80
- Minimum Pump Pressure (PSI): 60
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 6.1
- Product Length (in): 17.91
- Product Width (in): 10.04
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845127143
- Voltage: 12V
- Weight (lbs): 2.31
- Wire Harness Included: No
- Part Description: 2003 GMC Sonoma Electric Fuel Pump
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 4 Cyl 2.2L
Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure Rate (psi): 100
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 85
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2003 GMC Sonoma In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: 2.2 Liter
- Other Names: Fuel Pump, Fuel Sender Unit
- Item Dimensions: 18.2 x 10.8 x 9.5 inches
- Item Weight: 2.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 15748499, 15073337
- Part Description: 2003 GMC Sonoma Fuel Pump
Vehicle Fitment- 2003 GMC Sonoma | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS

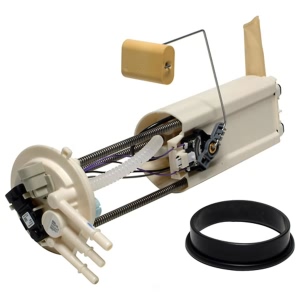

Product Specifications- Notes: DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 4AFCFC3697A
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0036
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193543
- Part Description: 2003 GMC Sonoma Fuel Pump Module
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
OEM (Genuine) 2003 GMC Sonoma Fuel Tank Fuel Pump Module ASSEMBLY (Sender & Pump)
PartNumber: 15207040Product Specifications- Notes: 4.3 Liter, Cpi
- Other Names: Fuel Pump, Fuel Sender Unit
- Item Dimensions: 16.4 x 13.3 x 9.9 inches
- Item Weight: 5.50 Pounds
- Fitment Type: Direct Replacement
- Replaces: 15050590
- Part Description: 2003 GMC Sonoma Fuel Tank Fuel Pump Module ASSEMBLY (Sender & Pump)
Vehicle Fitment- 2003 GMC Sonoma | SL, SLS | 6 Cyl 4.3 L GAS

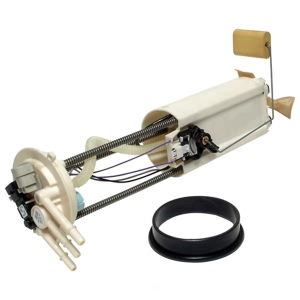

Product Specifications- Notes: Sell out reorder 953-0036
- Gaskets Included: Yes
- Internet Product Code (IPC): 626342CD123
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5071
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511163850
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L

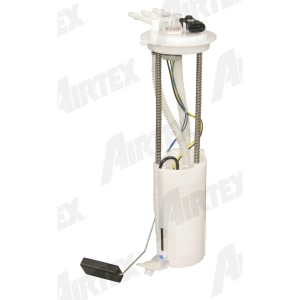

Product Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): B1E175BF043
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3566M
- Minimum Pressure (psi): 85
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044012344
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 2003 GMC Sonoma In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L
Product Specifications- Notes: w/o Robust Fuel System; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): D25F9D1D6DA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5107
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511164215
- Part Description: 2003 GMC Sonoma Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 6 Cyl 4.3L

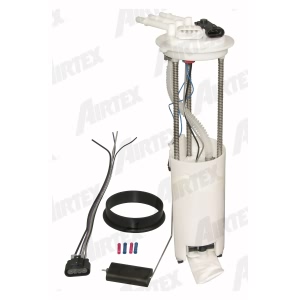

Product Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 9A7AF107C80
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Free Flow Rate (gph): 55
- Maximum Pressure (psi): 105
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3703M
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure (psi): 60
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044017790
- Wiring Harness Included: Yes
- Part Description: 2003 GMC Sonoma In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2003 GMC Sonoma | All Trims | 4 Cyl 2.2L
