Notes: Strainer is Inside the Module Assembly;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.500''
Outlet Quantity: 2
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604061039
Vapor Pressure Sensor: No

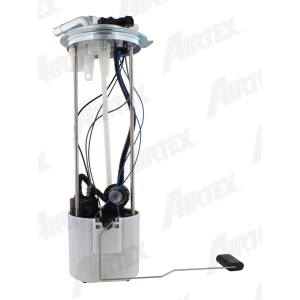

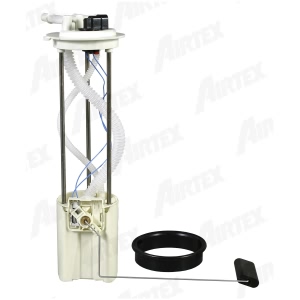

Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L
Notes: Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Crew Cab Pickup;Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Crew Cab Pickup,GAS;Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Extended Cab Pickup;Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Extended Cab Pickup,GAS;Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Standard Cab Pickup;Includes Fuel Pump, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Standard Cab Pickup,GAS;w/2 Electrical Connectors On The Pump Assembly
Gasket or Seal Included: Yes
Height (in.): 7
Inlet Type: Strainer
Length (in.): 17
Life Cycle Status Code: Available to Order
Maximum Free Flow (GPH): 70
Maximum Pump Pressure (PSI): 62
Minimum Free Flow (GPH): 60
Minimum Pump Pressure (PSI): 55
Outlet Size: 3/8
Outlet Type: Quick Connect
Package Contents: Pump & Kit
UPC: 072845128423
Weight (lbs.): 4.65
Width (in.): 10.5
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
Notes: RPO Code NC1;with Evaporative Emission;RPO Code EVA;Module has 2 Electrical Connector(s);with California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 28 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 54 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604158166
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
Notes: without Auxiliary Tank;Strainer is Inside the Module Assembly;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.500''
Outlet Quantity: 4
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604095218
Vapor Pressure Sensor: No
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L
Notes: RPO Code NC1;Module has 1 Electrical Connector(s);with Aft Axle Tank;with California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 7
Flow Rating: 17 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 4
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 51 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604095188
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
Notes: Module has 1 Electrical Connector(s);without Evaporative Emission;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 28 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Flex
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 54 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604158180
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
Notes: without Evaporative Emission;Primary Fuel Tank;Module has 1 Electrical Connector(s);Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 28 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 4
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 54 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604095171
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
Notes: Primary Fuel Tank;Strainer is Inside the Module Assembly;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.500''
Outlet Quantity: 4
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604095195
Vapor Pressure Sensor: No
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L
Notes: with Evaporative Emission;Primary Fuel Tank;Module has 2 Electrical Connector(s);RPO Code EVA;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 28 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 4
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 54 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604095164
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
Notes: Strainer is Inside the Module Assembly;Primary Fuel Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604060636
Vapor Pressure Sensor: No
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L
Notes: For Auxiliary Fuel Tank;Strainer is Inside the Module Assembly;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604060629
Vapor Pressure Sensor: No
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L
Notes: For Auxiliary Tank;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;w/1 Electrical Connector On The Module Assembly
Gasket or Seal Included: Yes
Inlet Size: 0.314
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 64.7
Maximum Pump Pressure (PSI): 53.65
Minimum Free Flow (GPH): 56.8
Minimum Pump Pressure (PSI): 50.75
Outlet Size: 0.374
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845126283
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L
Notes: Except Cab and Chassis;Includes Fuel Reservoir, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Strainer and Tank Seal. Doesn't include Fuel Pump,FUEL PUMP RESERVOIR
Gasket or Seal Included: Yes
Height (in.): 7
Inlet Type: Strainer
Length (in.): 18
Life Cycle Status Code: Available to Order
Outlet Size: 1/2"
Outlet Type: Quick Connect
Package Contents: Pump & Kit
Short Description: Strainers & Misc Prt
UPC: 072845150721
Weight (lbs.): 2
Width (in.): 7
Part Description: 2004 Chevrolet Silverado 3500 Fuel Pump Reservoir and Sender
More Info
Vehicle Fitment
2004 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L
