OEM (Genuine) 2004 Hyundai Elantra Pump-Fuel
PartNumber: 31111-09000$503.06 MSRP:$683.00You Save: $179.94 (27%)Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 6.6 x 3.8 x 2.4 inches
- Item Weight: 2.90 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2004 Hyundai Elantra Pump-Fuel
Product Specifications- Notes: DENSO Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 11.000 mm
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511072435
- Voltage: 12 VDC
- Part Description: 2004 Hyundai Elantra Electric Fuel Pump
Vehicle Fitment- 2004 Hyundai Elantra | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: 1st Design;with Steel Cover;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 50 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 51.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Hose
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 200.0
- Resistance Ohms Full: 10.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604233092
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Hyundai Elantra Fuel Pump Module Assembly
Vehicle Fitment- 2004 Hyundai Elantra | All Trims | 4 Cyl 2.0L
Product Specifications- Average Current Draw(A): 7.3
- Average Flow Rating(GPH): 30.4
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 52.2
- Minimum Pump Pressure (PSI): 49.3
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.374
- Outlet Type: Hose Barb
- Product Height (in): 7.28
- Product Length (in): 9.06
- Product Width (in): 7.68
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 200
- Resistance Ohms Full: 8
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845147479
- Voltage: 12V
- Weight (lbs): 3.65
- Wire Harness Included: No
- Part Description: 2004 Hyundai Elantra Fuel Pump Module Assembly
Vehicle Fitment- 2004 Hyundai Elantra | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 29 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 85.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 886931300408
- Voltage: 12 VDC
- Wiring Harness Included: No
- Part Description: 2004 Hyundai Elantra In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Hyundai Elantra | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: Strainer required to validate the warranty: F341S
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 85
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 123.3
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845143464
- Voltage: 12V
- Weight (lbs): 0.64
- Wire Harness Included: No
- Part Description: 2004 Hyundai Elantra In Tank Electric Fuel Pump
Product Specifications- Notes: Strainer required to validate the warranty: F341S
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 85
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 123.3
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.358
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845183460
- Voltage: 12V
- Weight (lbs): 0.64
- Wire Harness Included: No
- Part Description: 2004 Hyundai Elantra High Performance Electric Fuel Pump
Product Specifications- Notes: Contains Isolators;with 2 inch Diameter Pump;OE Replacement Pump;Contains Hoses & Clamps;with Harness
- Gasket Included: N
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 85
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Hose Bead
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044116400
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Hyundai Elantra Electric Fuel Pump
Vehicle Fitment- 2004 Hyundai Elantra | All Trims | 4 Cyl 2.0L
Product Specifications- Gasket or Seal Included: No
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): ABE39F43350
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 70
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8736M
- Minimum Pressure (psi): 60
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 5/16
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044022978
- Voltage [V]: 12V
- Wiring Harness Included: No

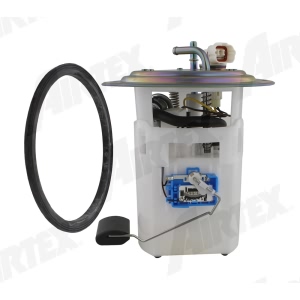

- Part Description: 2004 Hyundai Elantra In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Hyundai Elantra | All Trims | 4 Cyl 2.0L
