Delphi® Fuel Pump Module Assembly for 2004 Lincoln Navigator
PartNumber: FG0866Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 40 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604202982
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: Fuel Pump Module Assembly
$210.29
Autobest® Fuel Pump Module Assembly for 2004 Lincoln Navigator
PartNumber: F1373AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Strainer and Tank Seal
- Gasket or Seal Included: Yes
- Inlet Size: 0.433
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 62.8
- Minimum Free Flow (GPH): 52.8
- Minimum Pump Pressure (PSI): 117.5
- Outlet Size: 0.375
- Outlet Type: Quick Connect
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845113733
- Part Description: Fuel Pump Module Assembly
$106.36
OEM (Genuine) 2004 Lincoln Navigator Fuel Pump
PartNumber: 2L7Z-9H307-AF
Product Specifications- Notes: Navigator; All
- Other Names: Fuel Gauge Sending Unit, Fuel Pump
- Item Dimensions: 8.3 x 14.6 x 10.7 inches
- Item Weight: 5.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 2L7Z-9H307-AB
- Part Description: Fuel Pump

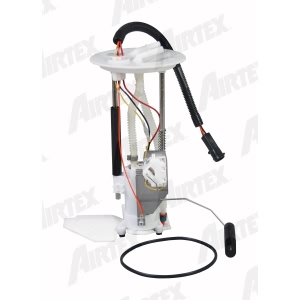

Airtex® In-Tank Fuel Pump Module Assembly for 2004 Lincoln Navigator
PartNumber: E2362MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): D878869C3C9
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2362M
- Minimum Pressure (psi): 95
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044012115
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: In-Tank Fuel Pump Module Assembly
