2004 Pontiac Aztek Fuel Pump
My Vehicle Change Vehicle
2004 Pontiac Aztek
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices

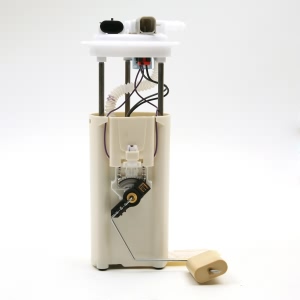

Product Specifications- Notes: 1st Design;To VIN # 4S558922;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 7
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 7.2
- Product Length (in): 11.81
- Product Width (in): 7.95
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125323
- Voltage: 12V
- Weight (lbs): 2.18
- Wire Harness Included: Yes
- Part Description: 2004 Pontiac Aztek Fuel Pump Module Assembly

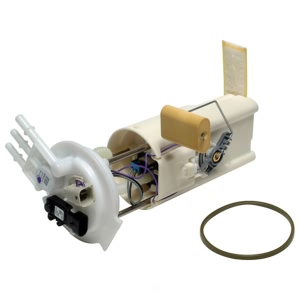

Product Specifications- Notes: 2nd Design;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 17 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 3
- Terminal Type: Pin
- UPC: 689604158197
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2004 Pontiac Aztek Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Aztek | All Trims | 6 Cyl 3.4L
Product Specifications- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.8 x 8.3 x 5.4 inches
- Item Weight: 3.60 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19169414, 88965548, 25349617, 19367488
- Part Description: 2004 Pontiac Aztek MODULE KIT, F/TNK F/PMP
Vehicle Fitment- 2004 Pontiac Aztek | Base, Rally | 6 Cyl 3.4 L GAS
Product Specifications- Notes: 1st Design;Before Chassis # 4S558922;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 17 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 52 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604095096
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2004 Pontiac Aztek Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Aztek | All Trims | 6 Cyl 3.4L
Product Specifications- Notes: 1st Design, To VIN 3G5DA03E14S558921; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): B1064E18048
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5118
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511164321
- Part Description: 2004 Pontiac Aztek Fuel Pump Module Assembly
Vehicle Fitment- 2004 Pontiac Aztek | All Trims | 6 Cyl 3.4L

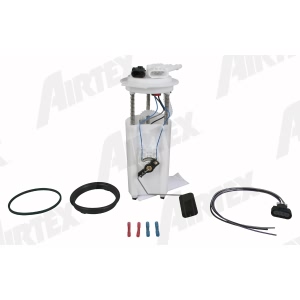

Product Specifications- Notes: 1st Design;To Chassis 4S558922
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 45
- Maximum Pressure Rate (psi): 85
- Minimum Free Flow Rate (gph): 35
- Minimum Pressure Rate (psi): 75
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Pontiac Aztek Electric Fuel Pump
Vehicle Fitment- 2004 Pontiac Aztek | All Trims | 6 Cyl 3.4L

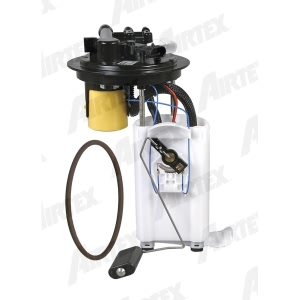

Product Specifications- Notes: From Chassis# 4S558922; 2nd Design
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 9EE39ADD2BD
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 100
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3701M
- Minimum Pressure (psi): 90
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044024729
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Pontiac Aztek Electric Fuel Pump
Vehicle Fitment- 2004 Pontiac Aztek | All Trims | 6 Cyl 3.4L
Product Specifications- Average Current Draw(A): 7.5
- Average Flow Rating(GPH): 35.7
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 90
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 7.01
- Product Length (in): 10.47
- Product Width (in): 10.28
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845127129
- Voltage: 12V
- Weight (lbs): 2.72
- Wire Harness Included: No
- Part Description: 2004 Pontiac Aztek Electric Fuel Pump
Vehicle Fitment- 2004 Pontiac Aztek | All Trims | 6 Cyl 3.4L
