2004 Volkswagen Passat Thermostat Housing
My Vehicle Change Vehicle
2004 Volkswagen Passat
< Back to View All
Cooling Systems, Fans & Radiators
- Department
- Brands
- Prices
Product Specifications- Gasket or Seal Included: Not Included
- Material: Plastic
- Meets / Exceeds OEM: Yes
- Style: w/o Thermostat
- Thermostat Included: Not Included
- UPC: 096361031173
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 6 Cyl 2.8L
Product Specifications- Notes: Grade: Aftermarket
- Height [mm]: 89
- Length [mm]: 319
- Material: Plastic
- OE Part Number: 078121121K
- Packaging Depth [cm]: 9,5
- Packaging height [cm]: 10,4
- Packaging width [cm]: 38,2
- Supplementary Article/Info 2: without thermostat
- Weight [kg]: 0,255
- Width [mm]: 117
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | GLS | 6 Cyl 2.8L
- 2004 Volkswagen Passat | GLX | 6 Cyl 2.8L
- 2004 Volkswagen Passat | GLX 4 Motion | 6 Cyl 2.8L
- 2004 Volkswagen Passat | GL | 6 Cyl 2.8L
Product Specifications- Notes: Grade: Aftermarket
- Length [mm]: 165
- OE Part Number: 38121121B, 038 121 121 B, 38 121 121 B
- Packaging height [cm]: 3,9
- Packaging width [cm]: 7
- Weight [kg]: 0,12
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | GL TDI | 4 Cyl 2.0L
- 2004 Volkswagen Passat | GLS TDI | 4 Cyl 2.0L

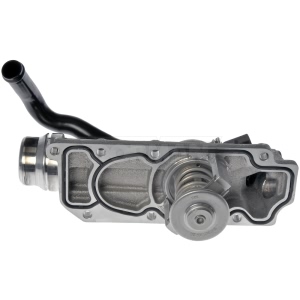

Dorman® Engine Coolant Thermostat Housing Assembly for 2004 Volkswagen Passat
PartNumber: 902-814$55.12Product Specifications- Notes: Assy; 2.0L Eng; Incls Thermostat & Sensor; Eng Designation ALT; GAS
- Bleeder Hole: No
- Bolt Hole Quantity: 2
- Color/Finish: Black
- Flange Length: 3.5"
- Flange Width: 2.5"
- Gasket Type: Rubber
- Grade Type: Standard
- Material: Plastic
- Mounting Hardware Included: No
- OE Part Number: 06B121111K
- Outlet Port Quantity: 3
- Thermostat Opening Temperature (F): 212 Degrees
- UPC: 037495548007
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | All Engines

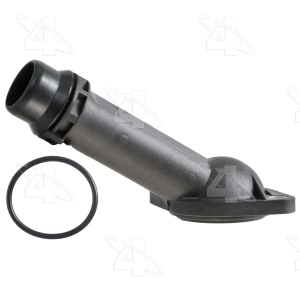

Four Seasons® Engine Coolant Water Outlet W O Thermostat for 2004 Volkswagen Passat
PartNumber: 85134$7.57Product Specifications- Notes: Outlet
- Bolt Hole Center To Bolt Hole Center: 2.750
- Gasket or Seal Included: Included
- Inlet Dia. IN: 1.033
- Material: Plastic; Thermoplastic
- Maximum Height: 3.630
- Meets / Exceeds OEM: Yes
- Mnt Flange Width IN: 0.329
- Style: w/o Thermostat
- Symetrical Base: Yes
- Thermostat Included: Not Included
- UPC: 096361851344
- Part Description: 2004 Volkswagen Passat Engine Coolant Water Outlet W O Thermostat
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 1.8L
Product Specifications- Notes: Grade: Aftermarket; Material Type: Plastic
- Length [mm]: 163
- Material: Plastic
- OE Part Number: 06B 121 121, 6B 121 121 L, 06B 121 121 L, 6B121121L, 6B121121, 6B 121 121
- Packaging height [cm]: 4,5
- Packaging width [cm]: 4,5
- Weight [kg]: 0,08
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | GLS | 4 Cyl 1.8L
- 2004 Volkswagen Passat | GL | 4 Cyl 1.8L
- 2004 Volkswagen Passat | GLS 4 Motion | All Engines
Dorman® Engine Coolant Thermostat Housing Assembly for 2004 Volkswagen Passat
PartNumber: 902-920$61.13Product Specifications- Notes: Housing; Incls Thermostat; 2.3L Eng; Eng Designation AZX
- Bleeder Hole: No
- Bolt Hole Quantity: 0
- Color/Finish: Black
- Gasket Type: Rubber
- Grade Type: Standard
- Material: Plastic
- Mounting Hardware Included: No
- OE Part Number: 022121117C
- Outlet Port Quantity: 3
- Thermostat Opening Temperature (F): 176 Degrees
- UPC: 019495264682
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | All Engines
Product Specifications- Notes: Outlet
- Air Vent (Bleeder Valve): No
- Bolt Hole Diameter: 0.3"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Black
- Housing Neck Angle (°): Straight
- Material: Plastic
- O Rings Included: Not Required
- OE Part Number: 038 121 132D
- Outlet Diameter: 1.375"
- UPC: 019495265269
- Part Description: 2004 Volkswagen Passat Engine Coolant Water Outlet
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: Outlet
- Air Vent (Bleeder Valve): No
- Bolt Hole Diameter: 0.275"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Black
- Housing Neck Angle (°): 90 Degree
- Material: Plastic
- OE Part Number: 058121132C
- Outlet Diameter: 1.513
- UPC: 019495263999
- Part Description: 2004 Volkswagen Passat Engine Coolant Water Outlet
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 1.8L
Product Specifications- Notes: Cover; 1.9L Eng; Eng Designation AVB;Cover;Cover; 1.9L Eng; Eng Designation AVF;Cover; 1.6L Eng; Eng Designation ALZ;Cover; 2.0L Eng; GAS; Eng Designation AZM;Cover; 1.9L Eng; Eng Designation AWX
- Air Vent (Bleeder Valve): No
- Bolt Hole Diameter: 0.313"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Black
- Housing Neck Angle (°): 45 Degree From Base
- Material: Plastic
- OE Part Number: 038 121 121B, 06B 121 121, 06B 121 121L
- Thermostat Included: No
- UPC: 019495265436
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | All Engines
- 2004 Volkswagen Passat | All Trims | 4 Cyl 1.8L
- 2004 Volkswagen Passat | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: Assy; Incls Thermostat
- Bleeder Hole: No
- Bolt Hole Center To Bolt Hole Center: 1.062"; 1.308"; 2.902"; 2.322"; 1.668"
- Bolt Hole Quantity: 7
- Color/Finish: Natural
- Flange Length: 2.43"
- Flange Thickness: 0.395"
- Flange Width: 2.668"
- Gasket Type: Gasket
- Grade Type: Regular
- Inside Diameter: 1.288"
- Material: Metal
- Mounting Hardware Included: No
- OE Part Number: 07D121111AB
- Outlet Port Quantity: 2
- Thermostat Opening Temperature (F): 221 Degrees
- UPC: 885484677401
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 8 Cyl 4.0L
Product Specifications- Notes: Plastic; Cover
- Air Vent (Bleeder Valve): No
- Bolt Hole Center To Bolt Hole Center: 2.925"; 5.437"; 9"
- Bolt Hole Diameter: 0.305"
- Bolt Hole Quantity: 3
- Bolts Included: No
- Color/Finish: Black
- Flange Thickness: 0.79"
- Gasket or Seal Included: No
- Height: 3.593"
- Inlet Port Diameter: 0.767"
- Material: Plastic
- Mount Hole Diameter: 0.305"
- Mount Hole Quantity: 3
- O-Rings Included: No
- OE Part Number: 078121121K
- Outlet Diameter: 1.262"
- Thermostat Included: No
- UPC: 889245254108
- Part Description: 2004 Volkswagen Passat Engine Coolant Thermostat Housing
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 6 Cyl 2.8L
