2005 Jeep Wrangler Fuel Pump
My Vehicle Change Vehicle
2005 Jeep Wrangler
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Product Fit
- Brands
- Prices
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 34 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 58.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 220.0
- Resistance Ohms Full: 20.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604207369
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC

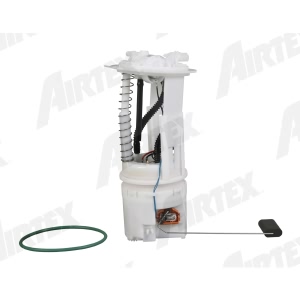

- Part Description: 2005 Jeep Wrangler Fuel Pump Module Assembly
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Average Current Draw(A): 7.4
- Average Flow Rating(GPH): 100
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.314
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 63.82
- Minimum Pump Pressure (PSI): 60.92
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Product Height (in): 14.25
- Product Length (in): 12.36
- Product Width (in): 5.98
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 222
- Resistance Ohms Full: 22
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845132116
- Voltage: 12V
- Weight (lbs): 2.64
- Wire Harness Included: No

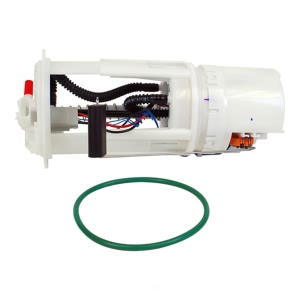

- Part Description: 2005 Jeep Wrangler Fuel Pump Module Assembly
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Average Current Draw(A): 6
- Average Flow Rating(GPH): 110
- Connector Gender: Male
- Connector Quantity: 2
- Connector Shape: PIN
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.39
- Outlet Type: Male tube / barbs
- Product Height (in): 1.44
- Product Length (in): 4.96
- Product Width (in): 1.44
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845132185
- Voltage: 12V
- Weight (lbs): 0.73
- Part Description: 2005 Jeep Wrangler Fuel Pump and Strainer Set
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
OEM (Genuine) 2005 Jeep Wrangler Module Ki-Fuel Pump/Level Unit
PartNumber: 5161335AK$315.83 MSRP:$475.00You Save: $159.17 (34%)Product Specifications- Notes: 2003-06
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 18.4 x 13.7 x 8.1 inches
- Item Weight: 4.10 Pounds
- Replaces: 5161335AE, 5161335AF, 5161335AD, 5161335AG, 5161335AI, 5161335AC, 5161335AB, 5161335AJ, 5161335AH, RL161335AF
- Part Description: 2005 Jeep Wrangler Module Ki-Fuel Pump/Level Unit
Vehicle Fitment- 2005 Jeep Wrangler | 65th Anniversary Edition, Rubicon, SE, Sport, Unlimited, Unlimited Rubicon, X | 4 Cyl 2.4 L GAS, 6 Cyl 4.0 L GAS
Autobest® High Performance Fuel Pump Module Assembly for 2005 Jeep Wrangler
PartNumber: HP3211A$128.56Product Specifications- Average Current Draw(A): 7.4
- Average Flow Rating(GPH): 100
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.314
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 63.82
- Minimum Pump Pressure (PSI): 60.92
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Product Height (in): 14.25
- Product Length (in): 12.36
- Product Width (in): 5.98
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 222
- Resistance Ohms Full: 22
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845172112
- Voltage: 12V
- Weight (lbs): 2.64
- Wire Harness Included: No
- Part Description: 2005 Jeep Wrangler High Performance Fuel Pump Module Assembly
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure Rate (psi): 58
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure Rate (psi): 58
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2005 Jeep Wrangler In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure Rate (psi): 105
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure Rate (psi): 95
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Barbed
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2005 Jeep Wrangler In-Tank Fuel Pump and Strainer Set
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Notes: OE / OES Replacement Fuel Pump & Strainer Kit;OE Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: Yes
- Internet Product Code (IPC): 6BBE70FE131
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-3028
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 118.0
- Strainer Width: 4.33
- Supplier Company Name: DENSO
- UPC: 042511170841
- Part Description: 2005 Jeep Wrangler Fuel Pump and Strainer Set
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 4C612E72EB5
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3062
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511173828
- Part Description: 2005 Jeep Wrangler Fuel Pump Module Assembly
Vehicle Fitment- 2005 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2005 Jeep Wrangler | All Trims | 6 Cyl 4.0L
