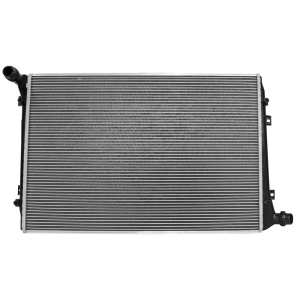

2006 Volkswagen Jetta Radiator
My Vehicle Change Vehicle
2006 Volkswagen Jetta
< Back to View All
Cooling Systems, Fans & Radiators
- Department
- Brands
- Prices
$96.28Product Specifications- Core Material: Aluminum
- Height: 25 11/16"
- Inlet: 1 1/4"
- Inlet Header: 16 5/16" x 1 3/4"
- Outlet: 1 1/4"
- Outlet Header: 16 5/16" x 1 3/4"
- Row: 1
- Tank Material: Plastic
- Thickness: 7/8"
- UPC: 671607730623
- Width: 16 5/16"
- Part Description: 2006 Volkswagen Jetta Complete Radiator
Vehicle Fitment- 2006 Volkswagen Jetta | All Trims | 4 Cyl 1.9L
- 2006 Volkswagen Jetta | All Trims | 4 Cyl 2.0L
$98.27Product Specifications- Notes: OE Style Design
- Bottom Hose Fitting (in): 1 5/16 Left
- Box Height (in): 4 11/16
- Box Length (in): 31 5/8
- Box Weight (lbs): 8
- Box Width (in): 20
- Core Length: 25 9/16
- Core Material: Aluminum
- Core Thickness: 7/8
- Core Width: 15 11/16
- Cross-flow/ Down-flow: Cross Flow
- Hazardous Material: No
- Inlet Length (in): 16 1/16
- Inlet Width (in): 1 3/8
- No. Of Rows: 1
- OE Part Number: 1K0 121 251 R, 1K0 121 251 BQ, 1K0 121 253 AN, 1K0 121 251 Q, 8012996, 1K0 121 251 E, 1K0 121 251 P, 1K0 121 251 AR, 1K0 121 253 P, CU2995, 1K0 121 253 AC, 1K0 121 251 CJ, 8012995, 1K0 121 251 BR, 2995, 1K0 121 251 F, 2996
- Outlet Length(in): 16 1/16
- Outlet Width: 1 3/8
- Radiator Cap Supplied: No
- Tank Material: Plastic
- Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe.
- Top Hose Fitting (in): 1 5/16 Left
- UPC: 710353034538
- Part Description: 2006 Volkswagen Jetta Engine Coolant Radiator
Vehicle Fitment- 2006 Volkswagen Jetta | All Trims | 5 Cyl 2.5L
CSF® Radiator for 2006 Volkswagen Jetta
PartNumber: 3459$107.87Product Specifications- Notes: OE Style Design; Incls O-Ring OD 39.3 x ID 30.8 x 4.25mm
- Bottom Hose Fitting (in): 1 1/4 Right
- Box Height (in): 5 4/16
- Box Length (in): 32 13/16
- Box Weight (lbs): 10
- Box Width (in): 20 3/16
- Core Length: 25 11/16
- Core Material: Aluminum
- Core Thickness: 1 1/4
- Core Width: 16 7/8
- Cross-flow/ Down-flow: Cross Flow
- Hazardous Material: No
- Inlet Length (in): 17 11/16
- Inlet Width (in): 1 5/8
- No. Of Rows: 1
- OE Part Number: 1K0 121 251 DM, 2822, 1K0 121 251 N, 1K0 121 253 L, 1K0 121 251 BK, 1K0 121 251 AB, 8012822, 3CO 121 253 K, 3CO 121 253 Q, CU2822, 3CO 121 253 AL
- Outlet Length(in): 17 11/16
- Outlet Width: 1 5/8
- Radiator Cap Supplied: No
- Tank Material: Plastic
- Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe.
- Top Hose Fitting (in): 1 1/4 Left
- UPC: 710353034590
- Part Description: 2006 Volkswagen Jetta Radiator
Vehicle Fitment- 2006 Volkswagen Jetta | All Trims | 4 Cyl 2.0L
Product Specifications- Notes: Grade: Aftermarket; Dimensions: 650 x 415 x 23 mm; 650 x 415mm
- Core Dimensions: 647 x 406 x 26 mm
- Part Description: 2006 Volkswagen Jetta Engine Coolant Radiator
Vehicle Fitment- 2006 Volkswagen Jetta | 2.5 | 5 Cyl 2.5L
- 2006 Volkswagen Jetta | Value Edition | 5 Cyl 2.5L
Product Specifications- Notes: Grade: Aftermarket; Dimensions: 648 x 446 x 32 mm; Primary; 648 x 446mm
- Depth [mm]: 32
- Length [mm]: 650
- Vehicle Equipment: for vehicles with/without air conditioning
- Width [mm]: 445
- Part Description: 2006 Volkswagen Jetta Engine Coolant Radiator
Vehicle Fitment- 2006 Volkswagen Jetta | 2.0T | 4 Cyl 2.0L
- 2006 Volkswagen Jetta | GLI | 4 Cyl 2.0L
Product Specifications- Notes: Grade: Aftermarket; Description: W. A/C; Dimensions: 648 x 399 x 32 mm; From Chassis/VIN 1K-6-609 401; To Chassis/VIN 1K-6-666 390; 648 x 399mm
- Core Dimensions: 650x439x32
- Part Description: 2006 Volkswagen Jetta Engine Coolant Radiator
Vehicle Fitment- 2006 Volkswagen Jetta | TDI | 4 Cyl 1.9L
