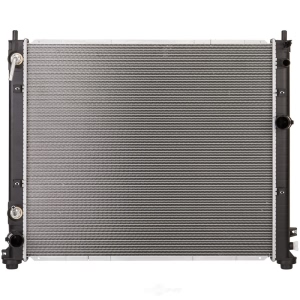

Denso® Engine Coolant Radiator for 2008 Cadillac SRX
PartNumber: 221-9241Product Specifications- Notes: w/Towing Pkg
- Core Height: 23.6200"
- Core Thickness: 1.0600"
- Core Width: 21.3000"
- Inlet Diameter: 1.3600"
- Outlet Diameter: 1.3600"
- UPC: 042511224476
- Part Description: 2008 Cadillac SRX Engine Coolant Radiator
Vehicle Fitment- 2008 Cadillac SRX | All Trims | 6 Cyl 3.6L
- 2008 Cadillac SRX | All Trims | 8 Cyl 4.6L
$145.26
OEM (Genuine) 2008 Cadillac SRX Radiator Assembly
PartNumber: 19130397
Product Specifications- Notes: Srx; 3.6L; W/O Trailer Package; 3.6 Liter, W/O Trailer Pkg, 2ND Design
- Other Names: Radiator
- Item Dimensions: 9.5 x 33.9 x 25.4 inches
- Item Weight: 8.60 Pounds
- Fitment Type: Direct Replacement
- Replaces: 89023428, 19129974, 19129970, 19130245
- Part Description: 2008 Cadillac SRX Radiator Assembly
Vehicle Fitment- 2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
Spectra Premium® Complete Radiator for 2008 Cadillac SRX
PartNumber: CU13014Product Specifications- Notes: w/Towing Pkg; w/o EOC (Eng Oil Cooler); w/o Heater Return Line
- Core Material: Aluminum
- Height: 23 5/8"
- Inlet: 1 3/8"
- Outlet: 1 3/8"
- Row: 1
- Tank Material: Plastic
- Thickness: 15/16"
- UPC: 671607777857
- Width: 20 3/8"
- Part Description: 2008 Cadillac SRX Complete Radiator
Vehicle Fitment- 2008 Cadillac SRX | All Trims | 6 Cyl 3.6L
- 2008 Cadillac SRX | All Trims | 8 Cyl 4.6L
OEM (Genuine) 2008 Cadillac SRX Radiator Assembly
PartNumber: 19130364
Product Specifications- Notes: Srx; 3.6L; W/Trailer Package; SRX; 4.6L; 3.6 Liter, W/Trailer Pkg; 4.6 Liter, W/Trailer Package
- Other Names: Radiator
- Item Dimensions: 9.5 x 33.6 x 24.2 inches
- Item Weight: 15.00 Pounds
- Fitment Type: Direct Replacement
- Replaces: 89022519, 19130176, 19129973
- Part Description: 2008 Cadillac SRX Radiator Assembly
Vehicle Fitment- 2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
OEM (Genuine) 2008 Cadillac SRX Radiator Assembly
PartNumber: 19130399
Product Specifications- Notes: SRX; 4.6L; 4.6 Liter, W/O Trailer Package
- Other Names: Radiator
- Item Dimensions: 32.4 x 25.0 x 8.6 inches
- Item Weight: 16.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19130177, 19129972, 88957419
- Part Description: 2008 Cadillac SRX Radiator Assembly
Vehicle Fitment- 2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
OEM (Genuine) 2008 Cadillac SRX Lower Hose
PartNumber: 19130431
Product Specifications- Notes: 3.6 Liter, 2004-08, W/Trailer Pkg
- Other Names: Lower Hose, Radiator
- Item Dimensions: 6.3 x 30.9 x 20.6 inches
- Item Weight: 9.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19129981
- Part Description: 2008 Cadillac SRX Lower Hose
Vehicle Fitment- 2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
FAQ for Radiator Repair
Q: What is the recommended torque for the radiator support bolts?
A:
The recommended torque is 9 Nm (80 lb in).
By Bob
GM Specialist
01/11/2022Q: How to install the Radiator Support Bracket?
A:
You should install the radiator support brackets and the radiator support bolts.
By Bob
GM Specialist
01/11/2022Q: How to remove the Radiator Upper Grille (Base)?
A:
You should remove the upper fasteners from the front bumper fascia to form enough slack to pull backward and access the grille and the push-in retainers that hold the grille to the fascia, disengage the headlamp washer hose from the upper radiator grille tabs and the clips from the fascia at the bottom of the grille and remove the grille from the fascia.
By Bob
GM Specialist
01/11/2022Q: How to replace the Radiator Grille Screen-Upper (R1T, R1X)?
A:
You should remove the front bumper fascia.
By Bob
GM Specialist
01/11/2022Q: How to remove the Radiator Support Bracket?
A:
You should remove the radiator support bolts and the radiator support brackets.
By Bob
GM Specialist
01/11/2022Q: How many plastic retainers attach to the Radiator Upper Grille?
A:
There are 6 plastic retainers attaching the radiator upper grille.
By Bob
GM Specialist
01/11/2022Q: How to install the Radiator Upper Grille (Base)?
A:
You should position the grille to the fascia, install the push-in retainers that hold the grille to the fascia, install the headlamp washer hose to the grille tab and position the fascia in place and install the fasteners that were removed.
By Bob
GM Specialist
01/11/2022Q: How to remove the Radiator (LY7-Standard Cooling)?
A:
You should drain the coolant, remove the electric cooling fan assembly, raise and support the vehicle, remove the lower condenser mounting bolts, the upper condenser mounting bolts, and the transmission oil cooler mounting bolts, disconnect the side air baffle lower retainer pins from the radiator, lower the vehicle, remove the radiator support bracket bolts, the radiator support brackets and the radiator/condenser upper support, disconnect the surge tank inlet hose from the radiator using the J 38185 and reposition aside, disengage tension on the radiator inlet hose clamp, disconnect from the radiator, disengage tension on the radiator outlet hose clamp, disconnect from the radiator and the side air baffle upper retainer pins from the radiator and remove the radiator.
By Bob
GM Specialist
01/11/2022Q: How to replace the Radiator Upper Grille (R1T, R1X)?
A:
You should remove the upper radiator grille screen and release the lock tabs on the inside of the fascia to release the grille.
By Bob
GM Specialist
01/11/2022Q: How many metal retaining clips attach to the Lower Radiator Grille Screen?
A:
There are 10 metal retaining clips attached to the lower radiator grille screen.
By Bob
GM Specialist
01/11/2022See more FAQs (6)
