Replacement and OEM Parts for 2008 Cadillac XLR Radiator

2008 Cadillac XLR Radiator

My Vehicle Change Vehicle
2008 Cadillac XLR
Change Vehicle
Vehicle Options
We need more information about your vehicle to make a correct determination of fitment
< Back to View All
Cooling Systems, Fans & Radiators
  • Department
  • Brands
  • Prices

3 Products found

12 Q&A for Radiator Repair
Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by
  • Denso Engine Coolant Radiator for 2008 Cadillac XLR - 221-9393

    Denso® Engine Coolant Radiator for 2008 Cadillac XLR

    PartNumber: 221-9393
    Product Specifications
    • Core Height: 23.4300"
    • Core Thickness: 0.9800"
    • Core Width: 18.5000"
    • Inlet Diameter: 1.3130"
    • Outlet Diameter: 1.3200"
    • UPC: 042511225992
    • Part Description: 2008 Cadillac XLR Engine Coolant Radiator
    More Info
    Vehicle Fitment
    • 2008 Cadillac XLR | All Trims | 8 Cyl 4.6L
    $143.73
  • OEM 2008 Cadillac XLR Radiator Diagram - 10346017
    View Related Parts

    OEM (Genuine) 2008 Cadillac XLR Radiator

    PartNumber: 10346017
    OEM 2008 Cadillac XLR Radiator - 10346017
    Product Specifications
    • Notes: Xlr; 4.6 Liter; 4.4 Liter
    • Other Names: Radiator
    • Item Dimensions: 36.4 x 28.1 x 8.5 inches
    • Item Weight: 10.40 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: 21996497
    • Part Description: 2008 Cadillac XLR Radiator
    More Info
    Vehicle Fitment
    • 2008 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
    $324.88 MSRP: $460.44
    You Save: $135.56 (30%)

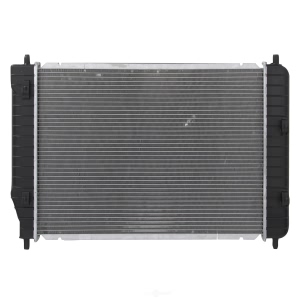

  • Spectra Premium Complete Radiator for 2008 Cadillac XLR - CU2715

    Spectra Premium® Complete Radiator for 2008 Cadillac XLR

    PartNumber: CU2715
    Product Specifications
    • Cap Included: No
    • Core Charge Applicable: No
    • Core Height: 23.4375; 595
    • Core Material: Aluminum
    • Core Thickness: 1.0000; 26
    • Core Width: 17.25; 438
    • Depth: 1.0
    • Fan Included: No
    • Height: 23.4375
    • Inlet Header Length: TBD
    • Inlet Header Width: TBD
    • Installation Hardware Included: 1 x Installation Sheet
    • Integrated Engine Oil Cooler: No
    • Integrated Transmission Oil Cooler: Yes
    • Internet Product Code (IPC): 74A1846F23A
    • Item Grade: OEM Standard
    • Item has MSDS (SDS): N
    • MFG Brand Name: Spectra Premium
    • MFG Model # (Series): CU2715
    • MFG Name: Spectra Premium Industries
    • Outlet Header Length: TBD
    • Package Contents: 1 Radiator 1 Installation Kit
    • Product Information Video Link - URL: http://www.youtube.com/spectrapremiumvideos
    • Product Installation Video Link - URL: http://www.youtube.com/spectrapremiumvideos
    • Radiator Core Material: Aluminum
    • Radiator Inlet Diameter: 1.313
    • Radiator Outlet Diameter: 1.313
    • Radiator Style: Crossflow
    • Radiator Tank Material: Plastic
    • Supplier Company Name: Spectra Premium Industries
    • Tank Material: Plastic
    • Transmission Oil Cooler Distance between Fittings: 12.0000
    • Transmission Oil Cooler Included: Yes
    • Transmission Oil Cooler Type: Plated
    • UPC: 671607750331
    • Width: 17.25
    • Part Description: 2008 Cadillac XLR Complete Radiator
    More Info
    Vehicle Fitment
    • 2008 Cadillac XLR | All Trims | 8 Cyl 4.6L
    • 2008 Cadillac XLR | All Trims | 8 Cyl 4.4L

FAQ for Radiator Repair

Q: How to remove the Radiator Air Baffle Assemblies and Deflectors (Radiator Air Baffle)?
A:
You should remove the cruise control bracket, the ambient air temperature sensor, the LH radiator air baffle lower screws, the RH radiator air baffle lower screw, the LH side air deflector retainer pins, the RH side air deflector retainer pins, the LH radiator air baffle upper retainer pin, the RH radiator air baffle upper retainer pin, and the radiator air baffle.
By Bob
GM Specialist
01/11/2022
Q: What is the recommended torque for the LH radiator air baffle lower screws?
A:
The recommended torque is 2.5 N.m (22 lb in).
By Bob
GM Specialist
01/11/2022
Q: What is the recommended torque for the front air deflector upper mounting screws?
A:
The recommended torque is 2.5 N.m (22 lb in).
By Bob
GM Specialist
01/11/2022
Q: How to install the Radiator?
A:
You should install the radiator to the vehicle, the radiator inlet hose, and the condenser.
By Bob
GM Specialist
01/11/2022
Q: What kind of special tools will be required when serving the Radiator?
A:
The tools required include a J 39400-A halogen leak detector and J 38185 hose clamp pliers.
By Bob
GM Specialist
01/11/2022
Q: How to install the Radiator Air Baffle Assemblies and Deflectors (Front Air Deflector)?
A:
You should install the front air deflector, the front air deflector bolts to the frame support, and the front air deflector upper mounting screws.
By Bob
GM Specialist
01/11/2022
Q: How to install the Radiator Air Baffle Assemblies and Deflectors (Radiator Air Baffle)?
A:
You should install the radiator air baffle, the RH radiator air baffle upper retainer pin, the LH radiator air baffle upper retainer pin, the RH side air deflector retainer pins, the LH side air deflector retainer pins, the RH radiator air baffle lower screw, the LH radiator air baffle lower screws, the ambient air temperature sensor, and the cruise control bracket.
By Bob
GM Specialist
01/11/2022
Q: How to remove the Radiator Support?
A:
You should remove the air cleaner assembly, the radiator support bolts, and the radiator support.
By Bob
GM Specialist
01/11/2022
Q: How to remove the Radiator?
A:
You should remove the condenser, the radiator inlet hose, and the radiator from the vehicle.
By Bob
GM Specialist
01/11/2022
Q: How to remove the Radiator Air Baffle Assemblies and Deflectors (Front Air Deflector)?
A:
You should remove the RH radiator air baffle lower screw, the LH radiator air baffle lower screws, the front air deflector upper mounting screws, the front air deflector bolts from the frame support, and the front air deflector.
By Bob
GM Specialist
01/11/2022
See more FAQs (7)

FAQ for Other Repair Info

Q: How to remove the Water Pump?
A:
You should remove the air cleaner assembly, the Water Pump drive belt, the water pump and generator drive belt tensioner, the water pump pulley bolts, the water pump pulley from the water pump, the water pump bolts, and the water pump and seal.
Q: How to remove the Engine Oil Cooler Hose/Pipe?
A:
You should remove the wheelhouse panel, install an oil drain pan under the vehicle, and remove the Engine Oil Cooler hose/pipe from the external oil cooler, the external engine oil cooler hose/pipe from the engine, the external engine oil cooler hose/pipe from the vehicle, and all engine oil cooler hose/pipe seals.
Q: How to remove the Engine Coolant Thermostat (LC3-8 Cyl, 4.4L, SC, DOHC)?
A:
You should remove the air cleaner assembly, the radiator hose from the Thermostat housing, the heater hose from the thermostat housing, the thermostat housing bolts,e the thermostat housing with thermostat from the water housing, the seal ring and the thermostat from the thermostat housing.
