Notes: with California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.500''
Outlet Quantity: 1
Outlet Type: Quick Connect
Package Contents: Fuel Transfer Unit with Float Arm, Seal, Instruction Sheet
Regulator Included: No
Resistance Ohms Empty: 180.0
Resistance Ohms Full: 10.0
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604284186
Vapor Pressure Sensor: No
Part Description: 2008 Mercury Sable Right Fuel Tank Sending Unit
Notes: with California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 40 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Lock Ring Included: No
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 180.0
Resistance Ohms Full: 10.0
Strainer Included: Yes
System Pressure: 65 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604241721
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

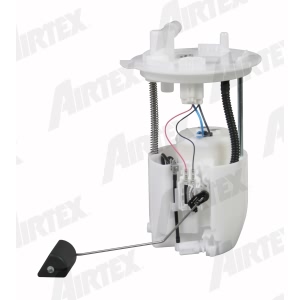

Part Description: 2008 Mercury Sable Passenger Side Fuel Pump Module Assembly
Notes: without California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 45 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Lock Ring Included: No
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 180.0
Resistance Ohms Full: 10.0
Strainer Included: Yes
System Pressure: 65 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604241714
Vapor Pressure Sensor: No
Voltage: 12.0 VDC

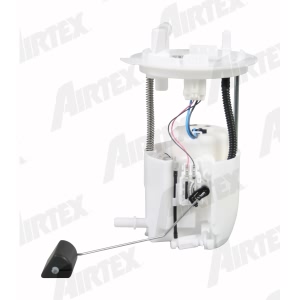

Part Description: 2008 Mercury Sable Driver Side Fuel Pump Module Assembly
Notes: California Models;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer,AWD;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer,FWD
Gasket or Seal Included: No
Height (in.): 6.75
Inlet Type: Strainer
Length (in.): 16
Life Cycle Status Code: Available to Order
Maximum Free Flow (GPH): 50
Maximum Pump Pressure (PSI): 66
Minimum Free Flow (GPH): 40
Minimum Pump Pressure (PSI): 66
Outlet Size: 3/8
Outlet Type: Quick Connect
Package Contents: Pump & Kit
Short Description: Electric Fuel Pump
UPC: 072845115195
Weight (lbs.): 3.1
Width (in.): 10
Part Description: 2008 Mercury Sable Fuel Pump Module Assembly
