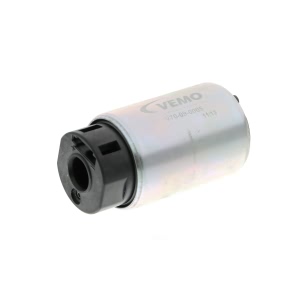

OEM (Genuine) 2008 Toyota Yaris Fuel Pump
PartNumber: 23220-21132$342.56 MSRP:$497.66You Save: $155.10 (32%)Product Specifications- Item Dimensions: 10.3 x 4.6 x 4.9 inches
- Item Weight: 0.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 23220-21131
- Part Description: 2008 Toyota Yaris Fuel Pump
Vehicle Fitment- 2008 Toyota Yaris | Base, S | 4 Cyl 1.5 L GAS
Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 4
- Flow Rating: 29 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Female Push''
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604207796
- Voltage: 12.0 VDC
- Wiring Harness Included: No

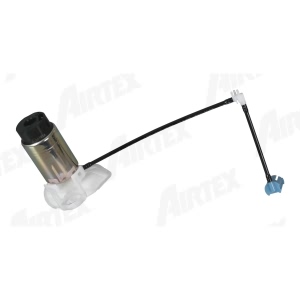

- Part Description: 2008 Toyota Yaris Fuel Pump And Strainer Set
Vehicle Fitment- 2008 Toyota Yaris | All Trims | 4 Cyl 1.5L
Product Specifications- Fuel Sending Unit Included: No
- Fuel Type: Gasoline
- UPC: 083286171466
- Part Description: 2008 Toyota Yaris Fuel Pump and Strainer Set
Vehicle Fitment- 2008 Toyota Yaris | All Trims | 4 Cyl 1.5L
Product Specifications- Average Current Draw(A): 5.8
- Average Flow Rating(GPH): 55
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.354
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.488
- Outlet Type: Recessed Quick Connect
- Product Height (in): 1.5
- Product Length (in): 2.87
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845147370
- Voltage: 12V
- Weight (lbs): 0.53
- Wire Harness Included: No
- Part Description: 2008 Toyota Yaris Fuel Pump And Strainer Set
Vehicle Fitment- 2008 Toyota Yaris | All Trims | 4 Cyl 1.5L
Product Specifications- Fuel Pump Flow Rating: 26.5
- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 40
- Maximum Pressure (psi): 21.7
- Minimum Free Flow Rate (gph): 30
- Minimum Pressure (psi): 45
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: RECESSED QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Maximum Pressure: 21.7
- Pump Type: Electrical
- UPC: 080044043621
- Voltage [V]: 12V
- Part Description: 2008 Toyota Yaris In-Tank Fuel Pump And Strainer Set
Vehicle Fitment- 2008 Toyota Yaris | All Trims | 4 Cyl 1.5L
Product Specifications- Notes: Grade: Aftermarket; Description: 3,0 Bar; From 08/2006; To 08/2008
- for OE number: 23220-21132
- Operating Mode: Electric
- Packaging Depth [cm]: 9
- Packaging height [cm]: 9,2
- Packaging width [cm]: 4,9
- Weight [kg]: 0,21
- Part Description: 2008 Toyota Yaris Fuel Pump
Vehicle Fitment- 2008 Toyota Yaris | All Trims | 4 Cyl 1.5L
