2009 Chrysler Sebring Axle Shaft
My Vehicle Change Vehicle
2009 Chrysler Sebring
< Back to View All
Driveline, Axles & 4WD
- Department
- Inboard Spline Quantity
- Location
- Outboard Spline Quantity
- Brands
- Prices
Product Specifications- ABS Ring Included: No
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 29
- Length: 25 1/4"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 32
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5

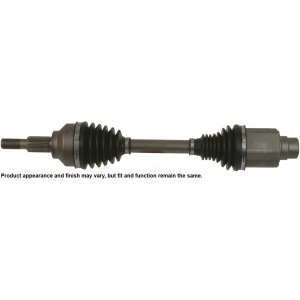

- Part Description: 2009 Chrysler Sebring Remanufactured CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 6 Cyl 3.5L
Product Specifications- ABS Ring Included: No
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 25
- Length: 25 3/8"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 32
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5
- Part Description: 2009 Chrysler Sebring Remanufactured CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 4 Cyl 2.4L
- 2009 Chrysler Sebring | All Trims | 6 Cyl 2.7L
Product Specifications- Notes: w/39 1/8" Axle Overall Length
- ABS Ring Included: No
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 25
- Length: 39 1/8"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 32
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5
- Part Description: 2009 Chrysler Sebring Remanufactured CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 4 Cyl 2.4L
OEM (Genuine) 2009 Chrysler Sebring Intermediate Shaft
PartNumber: 5273644AD$280.10 MSRP:$412.00You Save: $131.90 (33%)Product Specifications- Notes: Sebring, Avenger; 3.5l
- Other Names: Intermed Shaft
- Item Dimensions: 24.8 x 6.6 x 4.9 inches
- Item Weight: 10.40 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2009 Chrysler Sebring Intermediate Shaft
Vehicle Fitment- 2009 Chrysler Sebring | Limited | 6 Cyl 3.5 L GAS
Product Specifications- Notes: Sebring, Avenger; 2.7l; 4 Speed
- Item Dimensions: 28.4 x 6.7 x 6.7 inches
- Item Weight: 11.80 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2009 Chrysler Sebring Intermediate Shaft
Vehicle Fitment- 2009 Chrysler Sebring | Base, Limited, LX, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
GSP North America® Front Passenger Side CV Axle Assembly for 2009 Chrysler Sebring
PartNumber: NCV12101Product Specifications- Axle Nut Included: Yes
- Axle Nut Length: 20.5
- Axle Nut Socket Size: 31.5
- Axle Nut Thread Size: M22x1.5
- Axle Nut Type: Hex
- Boot Color: Black
- Boot Material: Neoprene
- Compressed Length: 25.39
- Inboard Joint Type: Male
- Inboard Spline Quantity: 25
- Outboard Joint Type: Conventional
- Outboard Spline Quantity: 32
- Prop 65 - Short Label: Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Yes/No: Yes
- UPC: 883331014126
- Part Description: 2009 Chrysler Sebring Front Passenger Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | Limited | 4 Cyl 2.4L
- 2009 Chrysler Sebring | Touring | 4 Cyl 2.4L
- 2009 Chrysler Sebring | Touring | 6 Cyl 2.7L
- 2009 Chrysler Sebring | LX | 4 Cyl 2.4L
- 2009 Chrysler Sebring | LX | 6 Cyl 2.7L
GSP North America® Front Passenger Side CV Axle Assembly for 2009 Chrysler Sebring
PartNumber: NCV12544Product Specifications- IBJ Spline Count: 28
- IBJ Type: Female
- Length: 20 1/2"
- OBJ Spline Count: 30
- UPC: 883331125440
- Part Description: 2009 Chrysler Sebring Front Passenger Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 6 Cyl 3.5L
- 2009 Chrysler Sebring | Limited | 6 Cyl 3.5L
Product Specifications- Notes: Sedan,; 2.7 Liter;Convertible, 2.4 Liter;Convertible, 3.5 Liter
- Location: Passenger Side
- Other Names: Axle Assembly
- Item Dimensions: 32.2 x 6.5 x 5.7 inches
- Item Weight: 17.20 Pounds
- Replaces: 5273556AD, 5273556AC
- Part Description: 2009 Chrysler Sebring Front Drive Shaft
Vehicle Fitment- 2009 Chrysler Sebring | Limited, LX, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
Product Specifications- IBJ Spline Count: 29
- IBJ Type: Male
- Length: 25 5/16"
- OBJ Spline Count: 32
- UPC: 883331125457
- Part Description: 2009 Chrysler Sebring Front Driver Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 6 Cyl 3.5L
- 2009 Chrysler Sebring | Limited | 6 Cyl 3.5L
Product Specifications- Notes: Sedan,; Convertible, 2.4 Liter; Sebring, Avenger; 2.4l; All;Sebring, Avenger; 2.7l; All; 4 Speed
- Location: Driver Side
- Other Names: Axle Assembly
- Item Dimensions: 5.7 x 6.5 x 31.4 inches
- Item Weight: 16.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 5085180AB, 5085180AE, 5085180AC, 5085180AF, 5085180AD
- Part Description: 2009 Chrysler Sebring Front Drive Shaft
Vehicle Fitment- 2009 Chrysler Sebring | Base, Limited, LX, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
Product Specifications- ABS Ring Included: No
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 28
- Length: 22 3/16"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 32
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5
- Part Description: 2009 Chrysler Sebring Remanufactured CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 6 Cyl 2.7L
GSP North America® Front Passenger Side CV Axle Assembly for 2009 Chrysler Sebring
PartNumber: NCV12547Product Specifications- IBJ Spline Count: 28
- IBJ Type: Female
- Length: 22 1/16"
- OBJ Spline Count: 32
- UPC: 883331125471
- Part Description: 2009 Chrysler Sebring Front Passenger Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 6 Cyl 2.7L
- 2009 Chrysler Sebring | Touring | 6 Cyl 2.7L
- 2009 Chrysler Sebring | LX | 6 Cyl 2.7L
- Product Specifications
- Notes: 2.7 Liter;Convertible, 3.5 Liter; Sebring, Avenger; 2.7l; All; 6 Speed;Sebring, Avenger; 3.5l; All
- Location: Driver Side
- Item Dimensions: 30.7 x 6.6 x 6.3 inches
- Item Weight: 16.70 Pounds
- Fitment Type: Direct Replacement
- Replaces: 5273763AC, 5273763AD, 5273763AE, 5273763AB, 5273763AF
- Part Description: 2009 Chrysler Sebring Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | Limited, LX, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
Product Specifications- Notes: w/22 15/16" Axle Overall Length
- ABS Ring Included: No
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 28
- Length: 22 15/16"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 32
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5
- Part Description: 2009 Chrysler Sebring Remanufactured CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 4 Cyl 2.4L
Product Specifications- Axle Nut Included: Yes
- Boot Color: Black
- Inboard Spline Quantity: 25
- Outboard Spline Quantity: 32
- UPC: 883331125488
- Part Description: 2009 Chrysler Sebring Front Driver Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 4 Cyl 2.4L
- 2009 Chrysler Sebring | All Trims | 6 Cyl 2.7L
Product Specifications- Notes: Sebring, Avenger; 2.7l; 6 Speed
- Item Dimensions: 24.2 x 6.7 x 4.9 inches
- Item Weight: 11.80 Pounds
- Replaces: 5085097AC
- Part Description: 2009 Chrysler Sebring Intermediate Shaft
Vehicle Fitment- 2009 Chrysler Sebring | LX, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
Product Specifications- ABS Ring Included: No
- Axle Nut Locking Type: Self Lock
- Input Shaft Connection Style: Spline
- Input Shaft Spline Count: 28
- Length: 20 11/16"
- Output Shaft Connection Style: Spline
- Output Shaft Spline Count: 32
- Product Condition: Remanufactured
- Spindle Nut Hex Head Size: 32mm
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M22 x 1.5
- Part Description: 2009 Chrysler Sebring Remanufactured CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | All Trims | 6 Cyl 3.5L
GSP North America® Front Passenger Side CV Axle Assembly for 2009 Chrysler Sebring
PartNumber: NCV12549Product Specifications- Notes: with Intermediate Shaft
- IBJ Spline Count: 28
- IBJ Type: Female
- Length: 22 13/16"
- OBJ Spline Count: 32
- UPC: 883331125495
- Part Description: 2009 Chrysler Sebring Front Passenger Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | Limited | 4 Cyl 2.4L
- 2009 Chrysler Sebring | Touring | 4 Cyl 2.4L
- 2009 Chrysler Sebring | All Trims | 4 Cyl 2.4L
GSP North America® Front Passenger Side CV Axle Assembly for 2009 Chrysler Sebring
PartNumber: NCV12587Product Specifications- Notes: One Piece Shaft
- Axle Nut Included: Yes
- Axle Nut Length: 20.5
- Axle Nut Socket Size: 31.5
- Axle Nut Thread Size: M22x1.5
- Axle Nut Type: Hex
- Boot Color: Black
- Boot Material: Neoprene
- Compressed Length: 39.17
- Inboard Joint Type: Male
- Inboard Spline Quantity: 25
- Outboard Joint Type: Conventional
- Outboard Spline Quantity: 32
- Prop 65 - Short Label: Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 Yes/No: Yes
- UPC: 883331125877
- Part Description: 2009 Chrysler Sebring Front Passenger Side CV Axle Assembly
Vehicle Fitment- 2009 Chrysler Sebring | Limited | 4 Cyl 2.4L
- 2009 Chrysler Sebring | LX | 4 Cyl 2.4L
- 2009 Chrysler Sebring | Touring | 4 Cyl 2.4L
