2013 Chevrolet Impala Fuel Pump
My Vehicle Change Vehicle
2013 Chevrolet Impala
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
Product Specifications- Notes: Two port cover utilized for manufacturing purposes only. Use the open port, do not tamper w/the plugged port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604240052
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC

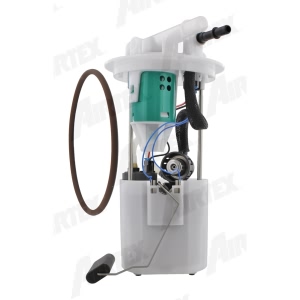

- Part Description: 2013 Chevrolet Impala Fuel Pump Module Assembly
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
OEM (Genuine) 2013 Chevrolet Impala Fuel Pump
PartNumber: 19299712$432.16 MSRP:$815.41You Save: $383.25 (48%)Product Specifications- Notes: 3.6 Liter, W/O Flex Fuel
- Other Names: Fuel Pump
- Item Dimensions: 13.1 x 12.2 x 12.4 inches
- Item Weight: 3.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19258597
- Part Description: 2013 Chevrolet Impala Fuel Pump
Vehicle Fitment- 2013 Chevrolet Impala | LS, LT, LTZ, Police | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
Product Specifications- Notes: Two port cover utilized for manufacturing purposes only. Use the open port, do not tamper w/the plugged port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 55 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604240045
- Vapor Pressure Sensor: No
- Voltage: 13.0 VDC

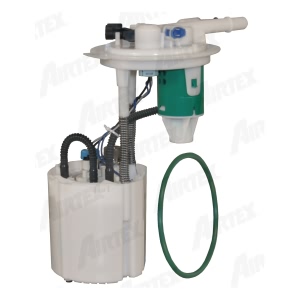

- Part Description: 2013 Chevrolet Impala Fuel Pump Module Assembly
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
OEM (Genuine) 2013 Chevrolet Impala Fuel Pump
PartNumber: 12691016$197.42 MSRP:$414.76You Save: $217.34 (53%)Product Specifications- Notes: Impala, Monte Carlo; 3.6l; High Pressure
- Other Names: Fuel Pump
- Item Dimensions: 6.3 x 5.9 x 5.8 inches
- Item Weight: 2.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: 12622475, 12641740, 12677328, 12633594, 12677329, 12669005
- Part Description: 2013 Chevrolet Impala Fuel Pump
Vehicle Fitment- 2013 Chevrolet Impala | LS, LT, LTZ, Police, Premier | 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
Product Specifications- Drive Shaft Included: No
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Housing Color: Silver
- Housing Material: Metal
- In Tank or External: External
- Inlet Fitting Thread Size: M14-1.5mm
- Inlet Type: Threaded
- Item Grade: Standard Replacement
- Mounting Hardware Included: No
- Outlet Fitting Thread Size: M14-1.5mm
- Outlet Quantity: 2
- Outlet Type: Threaded
- Pump Type: Mechanical
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604264799
- Wiring Harness Included: No
- Part Description: 2013 Chevrolet Impala Mechanical Fuel Pump
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
Product Specifications- Average Current Draw(A): 13.5
- Average Flow Rating(GPH): 39.62
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 85
- Minimum Pump Pressure (PSI): 75
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 7.17
- Product Length (in): 12.24
- Product Width (in): 8.94
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 250
- Resistance Ohms Full: 40
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845150431
- Voltage: 12V
- Weight (lbs): 3.3
- Wire Harness Included: No
- Part Description: 2013 Chevrolet Impala Fuel Pump Module Assembly
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
Product Specifications- Notes: 3.6 Liter, W/Flex Fuel
- Other Names: Fuel Pump
- Item Dimensions: 14.0 x 12.1 x 12.4 inches
- Item Weight: 3.50 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19258600
- Part Description: 2013 Chevrolet Impala Fuel Pump
Vehicle Fitment- 2013 Chevrolet Impala | LS, LT, LTZ, Police | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
Product Specifications- Gasket or Seal Included: Yes
- Inlet Outside Diameter: 13.8
- Inlet Type: Threaded
- Internal or External: External
- Muffler Outlet Diameter (in): 13.8
- Outlet Type: Threaded
- Pump Type: Mechanical
- UPC: 889464032006
- Part Description: 2013 Chevrolet Impala Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
Product Specifications- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 80
- Maximum Pressure (psi): 85
- Minimum Free Flow Rate (gph): 70
- Minimum Pressure (psi): 58.0
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044053750
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2013 Chevrolet Impala Fuel Pump Module Assembly
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
Product Specifications- Notes: Gas; Incls Fuel Pump, Fuel Pressure Reg, Fuel Reservoir, Sending Unit, Float, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044058960
- Part Description: 2013 Chevrolet Impala Fuel Pump Module Assembly
Vehicle Fitment- 2013 Chevrolet Impala | All Trims | 6 Cyl 3.6L
