OEM (Genuine) 2014 Toyota Sienna Fuel Pump
PartNumber: 77020-08050
Product Specifications- Notes: 3.5 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.6 x 10.7 x 8.0 inches
- Item Weight: 3.40 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2014 Toyota Sienna Fuel Pump
Vehicle Fitment- 2014 Toyota Sienna | Base, L, LE, Limited, SE, XLE | 6 Cyl 3.5 L GAS
$407.41 MSRP:$600.78You Save: $193.37 (33%)
Delphi® Fuel Pump Module Assembly for 2014 Toyota Sienna
PartNumber: FG1274Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 9
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Push''
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 412.0
- Resistance Ohms Full: 15.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604232415
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2014 Toyota Sienna Fuel Pump Module Assembly
Vehicle Fitment- 2014 Toyota Sienna | All Trims | 6 Cyl 3.5L
$394.09
Delphi® Fuel Pump And Strainer Set for 2014 Toyota Sienna
PartNumber: FE0675Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 35 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 138.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 689604264874
- Voltage: 12.0 VDC
- Wiring Harness Included: No
- Part Description: 2014 Toyota Sienna Fuel Pump And Strainer Set
Vehicle Fitment- 2014 Toyota Sienna | All Trims | 6 Cyl 3.5L

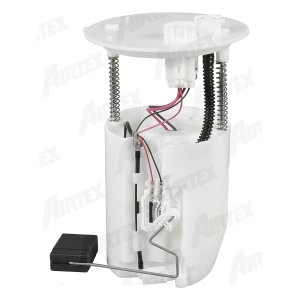

Airtex® Fuel Pump Module Assembly for 2014 Toyota Sienna
PartNumber: E9015MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure (psi): 65
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure (psi): 55
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: FEMALE QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044052401
- Wiring Harness Included: No
- Part Description: 2014 Toyota Sienna Fuel Pump Module Assembly
Vehicle Fitment- 2014 Toyota Sienna | All Trims | 6 Cyl 3.5L
