Cadillac STS Fuel Pump
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
$136.76Product Specifications- Average Current Draw(A): 10.5
- Average Flow Rating(GPH): 36.6
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.275
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Maximum Pump Pressure (PSI): 62.35
- Minimum Pump Pressure (PSI): 59.45
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Product Height (in): 7.32
- Product Length (in): 12.24
- Product Width (in): 8.78
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 41
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845126023
- Voltage: 12V
- Weight (lbs): 2.57
- Wire Harness Included: Yes

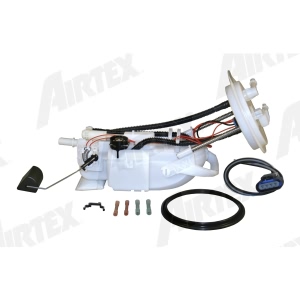

- Part Description: Cadillac STS Fuel Pump Module Assembly
$225.03Product Specifications- Current Draw: 7
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604266854
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: Cadillac STS Passenger Side Fuel Pump Module Assembly
$217.57Product Specifications- Drive Shaft Included: No
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Housing Color: Silver
- Housing Material: Metal
- In Tank or External: External
- Inlet Fitting Thread Size: M14-1.5mm
- Inlet Type: Threaded
- Item Grade: Standard Replacement
- Mounting Hardware Included: No
- Outlet Fitting Thread Size: M14-1.5mm
- Outlet Quantity: 2
- Outlet Type: Threaded
- Pump Type: Mechanical
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604264768
- Wiring Harness Included: No
- Part Description: Cadillac STS Mechanical Fuel Pump
$226.67Product Specifications- Current Draw: 7
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604266885
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: Cadillac STS Fuel Pump Module Assembly
OEM (Genuine) Cadillac STS Fuel Pump
PartNumber: 19328583$1694.53 MSRP:$3197.24You Save: $1502.71 (48%)Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 9.2 x 17.3 x 13.1 inches
- Item Weight: 2.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19302456, 19177145, 19168062, 19150321
- Part Description: Cadillac STS Fuel Pump
OEM (Genuine) Cadillac STS Fuel Pump
PartNumber: 19181824$267.25 MSRP:$504.27You Save: $237.02 (48%)Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 9.4 x 17.7 x 14.3 inches
- Item Weight: 2.20 Pounds
- Replaced by: 19417871
- Part Description: Cadillac STS Fuel Pump
OEM (Genuine) Cadillac STS Fuel Pump
PartNumber: 19417871$267.25 MSRP:$504.27You Save: $237.02 (48%)Product Specifications- Other Names: Fuel Pump, Fuel Pump Assembly
- Fitment Type: Direct Replacement
- Replaces: 19151141, 88965809, 19120683, 19181824
- Part Description: Cadillac STS Fuel Pump
OEM (Genuine) Cadillac STS Fuel Pump
PartNumber: 19181830$284.81 MSRP:$537.39You Save: $252.58 (48%)Product Specifications- Item Dimensions: 9.3 x 17.3 x 14.3 inches
- Item Weight: 2.20 Pounds
- Replaces: 19177216
- Part Description: Cadillac STS Fuel Pump
Product Specifications- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Item Grade: Standard Replacement
- Package Contents: Fuel Transfer Unit with Float Arm, Seal, Instruction Sheet
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604265147
- Vapor Pressure Sensor: No
- Part Description: Cadillac STS Fuel Tank Sending Unit
Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 120
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure Rate (psi): 110
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: Cadillac STS In-Tank Fuel Pump Module Assembly
Product Specifications- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.500''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Package Contents: Fuel Transfer Unit with Float Arm, Seal, Instruction Sheet
- Regulator Included: No
- Resistance Ohms Empty: 249.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604271704
- Vapor Pressure Sensor: No
- Part Description: Cadillac STS Left Fuel Tank Sending Unit
Product Specifications- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure (psi): 120
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure (psi): 60.0
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044045441
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: Cadillac STS Fuel Pump Module Assembly
Product Specifications- Gasket or Seal Included: Yes
- Inlet Outside Diameter: 13.8
- Inlet Type: Threaded
- Internal or External: External
- Mounting Hardware Included: No
- Muffler Outlet Diameter (in): 13.8
- Outlet Type: Threaded
- Pump Type: Mechanical
- UPC: 889464031993
- Part Description: Cadillac STS Direct Injection High Pressure Fuel Pump
