Chrysler Pacifica A/C Compressor
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Condition
- Brands
- Prices

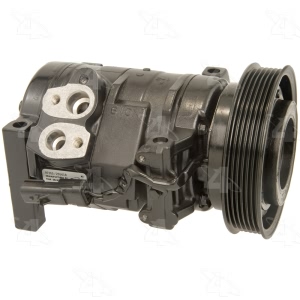

$262.33Product Specifications- Clutch Maximum Diameter: 131.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 5005496AF, 5005496AG, RL005450AF, 05005496AI, R5005496AI, 5005450AD, 5005450AC, 5005496AD
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511192768
- Part Description: Chrysler Pacifica A/C Compressor with Clutch

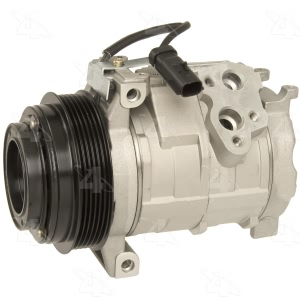

$403.91Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.70
- Coil Clock Position: Lead Wire
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: See under hood decal for proper oil type.
- Compressor Type: CVC
- Distance From Clutch To Mounting Flange: 0.734375
- ECV Harness Connector: SE10F, 26984 Female / / SE10M, 26878 Male
- Mounting Hardware: Not Included
- Mounting Type: 3 Tangent One on Rear Head
- New or Reman: New
- O-Ring A Number/Desc: 24402
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: 24404
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.70
- Pulley Outside Diameter: 4.70
- Pulley Ridge Diameter: 4.70
- Refrigerant Type: R-134a or R1234yf
- Terminal Type: Pin
- UPC: 096361125445
- Part Description: Chrysler Pacifica A C Compressor With Clutch

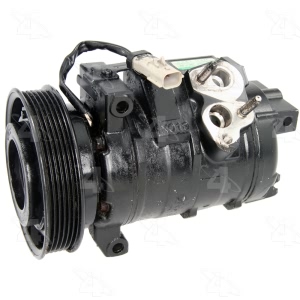

$242.31Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.0625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.546875
- Mount Distance MM: 39.370
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 128.575
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.0625
- Pulley Outside Diameter: 5.0625
- Pulley Ridge Diameter: 5.0625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361973558
- Part Description: Chrysler Pacifica Remanufactured A C Compressor With Clutch

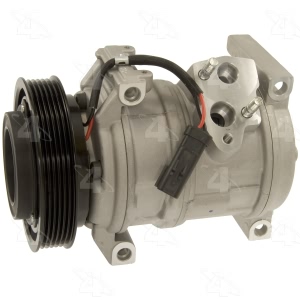

$240.41Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.500
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Head Type: X019
- Compressor Type: 10S17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 0.65625
- Mount Distance MM: 16.764
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 114.300
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.500
- Pulley Outside Diameter: 4.500
- Pulley Ridge Diameter: 4.500
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361973978
- Part Description: Chrysler Pacifica Remanufactured A C Compressor With Clutch
$183.41Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.0625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S17C
- Discharge Port Type: Gasket
- Distance From Clutch To Mounting Flange: 1.250
- Mount Distance MM: 31.750
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 128.575
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.0625
- Pulley Outside Diameter: 5.0625
- Pulley Ridge Diameter: 5.0625
- Refrigerant Type: R134a
- Suction Port Type: Gasket
- Terminal Type: Pin
- UPC: 096361673427
- Part Description: Chrysler Pacifica Remanufactured A C Compressor With Clutch
$315.69Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.6875
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 0.65625
- Mount Distance MM: 16.764
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 119.050
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.6875
- Pulley Outside Diameter: 4.6875
- Pulley Ridge Diameter: 4.6875
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361983977
- Part Description: Chrysler Pacifica A C Compressor With Clutch
$304.36Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.0625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S17C
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.546875
- Mount Distance MM: 39.370
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 128.575
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.0625
- Pulley Outside Diameter: 5.0625
- Pulley Ridge Diameter: 5.0625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361983557
- Part Description: Chrysler Pacifica A C Compressor With Clutch
$262.61Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.0625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10S17C
- Discharge Port Type: O-Ring / Gasket
- Distance From Clutch To Mounting Flange: 1.250
- Mount Distance MM: 31.750
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 128.575
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.0625
- Pulley Outside Diameter: 5.0625
- Pulley Ridge Diameter: 5.0625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring / Gasket
- Terminal Type: Pin
- UPC: 096361683426
- Part Description: Chrysler Pacifica A C Compressor With Clutch
$310.16 MSRP:$465.00You Save: $154.84 (34%)Product Specifications- Item Dimensions: 10.1 x 9.9 x 9.2 inches
- Item Weight: 15.40 Pounds
- Replaced by: 5005496AJ
- Part Description: Chrysler Pacifica COMPRES0R-Air Conditioning
$470.74 MSRP:$718.00You Save: $247.26 (35%)Product Specifications- Other Names: Compressor
- Item Dimensions: 10.0 x 10.4 x 9.1 inches
- Item Weight: 17.10 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 68225206AF
- Part Description: Chrysler Pacifica COMPRESSO-Air Conditioning
- $470.74 MSRP:
$718.00You Save: $247.26 (35%)Product Specifications- Other Names: Compressor
- Item Dimensions: 10.1 x 10.3 x 9.3 inches
- Item Weight: 17.10 Pounds
- Replaced by: 68225206AF
- Part Description: Chrysler Pacifica AIR CONDITIONING
$515.18 MSRP:$766.00You Save: $250.82 (33%)Product Specifications- Other Names: Compressor
- Item Dimensions: 16.4 x 13.9 x 11.6 inches
- Item Weight: 37.20 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 68237995AH
- Part Description: Chrysler Pacifica COMPRESSO-Air Conditioning
$788.78 MSRP:$1165.00You Save: $376.22 (33%)Product Specifications- Other Names: Compressor
- Item Dimensions: 10.6 x 10.4 x 9.3 inches
- Item Weight: 16.20 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 68261039AE
- Part Description: Chrysler Pacifica COMPRESSO-Air Conditioning
- $761.14 MSRP:
$1165.00You Save: $403.86 (35%)Product Specifications- Other Names: Compressor
- Item Dimensions: 10.5 x 10.2 x 9.8 inches
- Item Weight: 15.00 Pounds
- Replaces: 68261039AB, 68261039AA, 68261039AC
- Replaced by: 68261039AE
- Part Description: Chrysler Pacifica AIR CONDITIONING
Product Specifications- Belt Type: Serpentine
- Clutch Included: Yes
- Coil Clock Position: Wire Lead
- Coil Voltage: 12V
- Connector Terminal Quantity: 2
- Connector Type: Female, 2 Blade
- Mounting Type: Bolt-tangent
- New or Remanufactured: New
- Oil in Compressor: Yes
- Oil Type: PAG
- Package Contents: O-rings/sealing washers included
- Pulley Groove Quantity: 6
- Refrigerant Type: R134A
- Switch Included: No
- Switch Service Port: No
- UPC: 689604203804
- Part Description: Chrysler Pacifica A C Compressor With Clutch
Product Specifications- UPC: 671607535105
- Part Description: Chrysler Pacifica A/C Compressor
Product Specifications- UPC: 671607339369
- Part Description: Chrysler Pacifica A/C Compressor
- Product Specifications
- Other Names: Compressor
- Item Dimensions: 10.3 x 10.1 x 9.3 inches
- Item Weight: 9.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: R5005450AF, 5005450AD, 5005450AE, RL005450AF
- Part Description: Chrysler Pacifica COMPRES0R-Air Conditioning
- Product Specifications
- Other Names: Compressor
- Item Dimensions: 11.5 x 11.2 x 6.1 inches
- Item Weight: 8.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: RL111409AD, 55111409AB, R5111409AD, 55111409AC
- Part Description: Chrysler Pacifica COMPRES0R-Air Conditioning
