Ford E-350 Club Wagon A/C Liquid Line Hoses
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Brands
- Prices

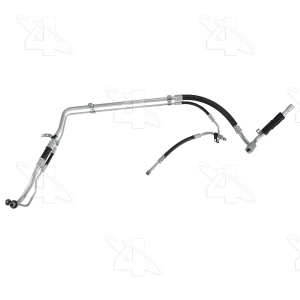

Four Seasons® A C Discharge And Suction Line Hose Assembly for Ford E-350 Club Wagon
PartNumber: 56948$106.90Product Specifications- Discharge End Style: Captive O-ring
- Discharge End Type: P-Nut Fitting
- Gasket or Seal Included: Included
- Manifold: Yes
- Muffler: w/ Muffler
- O-Rings Included: Included
- O.E. Replacement: Yes
- Refrigerant Type: R134a
- Service Port: w/ Service Port
- Suction End Style: Male Insert O-Ring
- Suction End Type: Male O Ring
- Switch Included: Not Included
- Switch Service Port: w/ Switch Port
- UPC: 096361569485
- Part Description: Ford E-350 Club Wagon A C Discharge And Suction Line Hose Assembly
$100.87Product Specifications- End 1 Type: Springlock
- End 2 Type: Male Springlock
- Fittings Included: Included
- Gasket or Seal Included: Included
- Manifold: w/o Manifold
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O.E. Replacement: Yes
- Orifice Tube: w/o Orifice Tube
- Refrigerant Type: R134-A
- Service Port: w/o Service Port
- Style: Hose Assy /Suction, Liquid
- Suction End Type: Springlock
- Switch Service Port: w/ Switch Port
- System Pressure: High Pressure / Low Pressure
- UPC: 096361031524
- Part Description: Ford E-350 Club Wagon A C Suction And Liquid Line Hose Assembly
Four Seasons® A C Discharge And Suction Line Hose Assembly for Ford E-350 Club Wagon
PartNumber: 56684$90.54Product Specifications- Bracket: w/o Bracket
- Discharge End Style: Male Insert O-Ring
- Discharge End Type: Male O Ring
- Fittings Included: Not Included
- Gasket or Seal Included: Included
- Manifold: Yes
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24612] / Green O-Ring
- O-Ring C Quantity: 1
- O-Rings Included: Included
- O.E. Replacement: Yes
- Refrigerant Type: R134a
- Service Port: w/ Service Port
- Service Port Type: R134-A Quick Disconnect
- Suction End Style: Male Insert O-Ring
- Suction End Type: Male O Ring
- Switch Included: Not Included
- Switch Service Port: w/ Switch Port
- UPC: 096361566842
- Part Description: Ford E-350 Club Wagon A C Discharge And Suction Line Hose Assembly
Four Seasons® A C Discharge And Suction Line Hose Assembly for Ford E-350 Club Wagon
PartNumber: 56999$74.02Product Specifications- Bracket: w/o Bracket
- Discharge End Style: Captured O-Ring
- Discharge End Type: P-Nut Fitting
- Gasket or Seal Included: Included
- Manifold: Yes
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24649] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: [24672] / Green O-Ring
- O-Ring B Quantity: 2
- O-Ring C Number/Desc: [24606] / Green O-Ring
- O-Ring C Quantity: 1
- O-Rings Included: Included
- O.E. Replacement: Yes
- Refrigerant Type: R134-A
- Service Port: w/ Service Port
- Suction End Style: Captured O-Ring
- Suction End Type: Male O-ring
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- UPC: 096361569997
- Part Description: Ford E-350 Club Wagon A C Discharge And Suction Line Hose Assembly
$64.11Product Specifications- Bracket: w/o Bracket
- Component Type: Suction Line
- End 1 Type: Springlock
- End 2 Type: Female Springlock
- Fittings Included: Included
- Gasket or Seal Included: Included
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24220] / Spring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24670] / Green O-Ring
- O-Ring B Quantity: 6
- O.E. Replacement: Yes
- Refrigerant Type: R134-A
- Service Port: w/o Service Port
- Suction End Type: Springlock
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- System Pressure: Low Pressure
- UPC: 096361555648
- Part Description: Ford E-350 Club Wagon A C Suction Line Hose Assembly
$262.51 MSRP:$361.67You Save: $99.16 (28%)Product Specifications- Other Names: Discharge Line
- Item Dimensions: 5.2 x 14.1 x 20.0 inches
- Item Weight: 5.90 Pounds
- Replaces: F7UZ-19D850-EA, YF-2380
- Part Description: Ford E-350 Club Wagon Hose & Tube Assembly
$53.26Product Specifications- Bracket: w/o Bracket
- Gasket or Seal Included: Included
- Liquid Line Gender: Female
- Lqd Line Thrd Size: 3/4"-16
- Material: Aluminum / Rubber
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O.E. Replacement: Yes
- Orifice Tube: w/ Orifice Tube
- Refrigerant Type: R134a
- Service Port: w/o Service Port
- Style: Liquid Line Hose Assembly w/o Orifice Tube
- Suction End Type: Female O Ring
- Switch Service Port: w/o Switch Port
- System Pressure: High Pressure
- UPC: 096361569546
- Part Description: Ford E-350 Club Wagon A C Liquid Line Hose Assembly
Four Seasons® A C Discharge And Suction Line Hose Assembly for Ford E-350 Club Wagon
PartNumber: 66104$42.21Product Specifications- Bracket: w/o Bracket
- Discharge End Style: Female O-Ring
- Discharge End Type: Female O Ring
- Gasket or Seal Included: Included
- Manifold: Yes
- Manifold Suc Style: Block
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Rings Included: Included
- O.E. Replacement: Yes
- Refrigerant Type: R134-A
- Service Port: w/o Service Port
- Suction End Style: Female O-Ring
- Suction End Type: Female O Ring
- Switch Included: Not Included
- Switch Service Port: w/ Switch Port
- UPC: 096361087316
- Part Description: Ford E-350 Club Wagon A C Discharge And Suction Line Hose Assembly
Product Specifications- Other Names: Hose & Tube Assembly
- Item Dimensions: 5.8 x 8.4 x 34.0 inches
- Item Weight: 1.90 Pounds
- Replaces: 5C3Z-19D850-AA
- Part Description: Ford E-350 Club Wagon Hose & Tube Assembly
- Product Specifications
- Other Names: Hose & Tube Assembly
- Item Dimensions: 2.7 x 9.8 x 30.5 inches
- Item Weight: 3.20 Pounds
- Replaces: 4C2Z-19D850-AA, 6C2Z-19D850-AA, 5C2Z-19D850-AB, YF-3111
- Part Description: Ford E-350 Club Wagon Hose & Tube Assembly
- Product Specifications
- Other Names: Tube
- Item Dimensions: 1.5 x 5.4 x 16.3 inches
- Item Weight: 0.80 Pounds
- Replaces: 6C2Z-19835-FB, YF-3294, 6C2Z-19835-FA
- Part Description: Ford E-350 Club Wagon Liquid Line
