GMC Jimmy Brake Drum
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Brake Drums & Brake Shoes
- Department
- Series
- Brands
- Prices
$47.59Product Specifications- UPC: 805890045847
- Part Description: GMC Jimmy Premium Rear Brake Drum

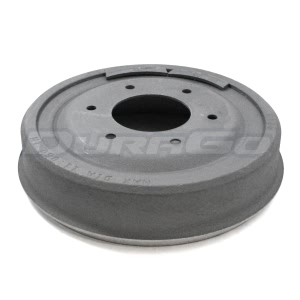

DuraGo® Rear Brake Drum for GMC Jimmy
PartNumber: BD8874$82.39Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 127mm (5")
- Bolt Hole Diameter: 13.4mm (0.53")
- Bolt Hole Quantity: 5
- Brake Surface Width: 81.3mm (3.20")
- Center Hole Diameter: 78.5mm (3.09")
- Construction: Composite
- Drum Type: Floating
- Height: 108.2mm (4.26")
- Maximum Diameter: 285.5mm (11.24")
- Nominal Diameter: 283.3mm (11.15")
- Outside Diameter: 337mm (13.27")
- Type: Finned Cooling Fins
- UPC: 756632100679
- Part Description: GMC Jimmy Rear Brake Drum
$46.97Product Specifications- UPC: 805890045694
- Part Description: GMC Jimmy Premium Rear Brake Drum

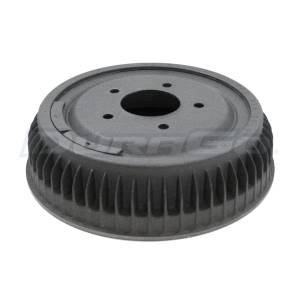

DuraGo® Rear Brake Drum for GMC Jimmy
PartNumber: BD8985$77.33Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 139.7mm (5.5")
- Bolt Hole Diameter: 11.6mm (0.46")
- Bolt Hole Quantity: 6
- Brake Surface Width: 83.1mm (3.27")
- Center Hole Diameter: 90.4mm (3.56")
- Construction: Composite
- Drum Type: Floating
- Height: 98.1mm (3.86")
- Maximum Diameter: 284.73mm (11.21")
- Nominal Diameter: 283.2mm (11.15")
- Outside Diameter: 342.4mm (13.48")
- Type: Finned Cooling Fins
- UPC: 756632105681
- Part Description: GMC Jimmy Rear Brake Drum
DuraGo® Rear Brake Drum for GMC Jimmy
PartNumber: BD8819$56.01Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 127mm (5")
- Bolt Hole Diameter: 13.5mm (0.53")
- Bolt Hole Quantity: 5
- Brake Surface Width: 62.7mm (2.47")
- Center Hole Diameter: 78.7mm (3.10")
- Construction: Composite
- Drum Type: Floating
- Height: 92.3mm (3.63")
- Maximum Diameter: 281.69mm (11.09")
- Nominal Diameter: 279.4mm (11")
- Outside Diameter: 339.5mm (13.37")
- Type: Finned Cooling Fins
- UPC: 756632100556
- Part Description: GMC Jimmy Rear Brake Drum
DuraGo® Rear Brake Drum for GMC Jimmy
PartNumber: BD8988$49.92Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 120.65mm (4.75")
- Bolt Hole Diameter: 13.5mm (0.53")
- Bolt Hole Quantity: 5
- Brake Surface Width: 62.2mm (2.45")
- Center Hole Diameter: 70.8mm (2.79")
- Construction: Composite
- Drum Type: Floating
- Height: 80.5mm (3.17")
- Maximum Diameter: 243.59mm (9.59")
- Nominal Diameter: 241.3mm (9.5")
- Outside Diameter: 304mm (11.97")
- Type: Finned Cooling Fins
- UPC: 756632105711
- Part Description: GMC Jimmy Rear Brake Drum
DuraGo® Rear Brake Drum for GMC Jimmy
PartNumber: BD8106$49.93Product Specifications- Abs Sensor Ring Includes: No
- Bolt Circle Diameter: 139.7mm (5.5")
- Bolt Hole Diameter: 11.5mm (0.45")
- Bolt Hole Quantity: 6
- Brake Surface Width: 62.3mm (2.45")
- Center Hole Diameter: 90.6mm (3.57")
- Construction: Composite
- Drum Type: Floating
- Height: 75mm (2.95")
- Maximum Diameter: 280.92mm (11.06")
- Nominal Diameter: 279.4mm (11")
- Outside Diameter: 314.3mm (12.37")
- Type: Plain Cooling Fins
- UPC: 756632100501
- Part Description: GMC Jimmy Rear Brake Drum
Product Specifications- Item Dimensions: 17.3 x 16.5 x 8.1 inches
- Item Weight: 52.60 Pounds
- Replaced by: 15003097
- Part Description: GMC Jimmy Drum, Rear Brake(Drilled)
OEM (Genuine) GMC Jimmy Drum, Rear Brake
PartNumber: 15693455Product Specifications- Other Names: Brake Drum, Drum
- Item Dimensions: 14.4 x 13.7 x 4.0 inches
- Item Weight: 16.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 1255496, 01255496
- Part Description: GMC Jimmy Drum, Rear Brake
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 16.7 x 16.0 x 4.7 inches
- Item Weight: 29.20 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC Jimmy Drum, Rear Brake(Finished)
- Product Specifications
- Other Names: Brake Drum, Drum
- Item Dimensions: 16.9 x 16.3 x 4.7 inches
- Item Weight: 27.10 Pounds
- Fitment Type: Direct Replacement
- Part Description: GMC Jimmy Drum, Rear Brake(Finished)
OEM (Genuine) GMC Jimmy Drum, Rear Brake
PartNumber: 3984855Product Specifications- Other Names: Brake Drum
- Item Dimensions: 18.1 x 14.2 x 4.9 inches
- Item Weight: 22.40 Pounds
- Part Description: GMC Jimmy Drum, Rear Brake
OEM (Genuine) GMC Jimmy Brake Drum
PartNumber: 14070351Product Specifications- Other Names: Brake Drum
- Item Dimensions: 15.8 x 14.7 x 5.8 inches
- Item Weight: 28.40 Pounds
- Part Description: GMC Jimmy Brake Drum
