Honda Wagovan A/C Compressor
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Brands
- Prices

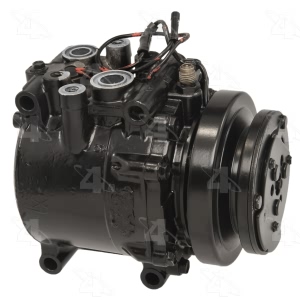

$412.98Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 3.500
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: TR70
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.046875
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 88.900
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 3.500
- Pulley Outside Diameter: 3.500
- Pulley Ridge Diameter: 3.500
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361575707
- Part Description: Honda Wagovan Remanufactured A C Compressor With Clutch

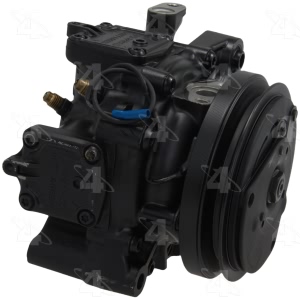

$230.69Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: CN150L
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.620
- Mount Distance MM: 41.148
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24612] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: Not Recommended for Use with R134a
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Butt
- UPC: 096361578708
- Part Description: Honda Wagovan Remanufactured A C Compressor With Clutch
Product Specifications- Belt Width IN: 0.4375
- Clutch Included: Yes
- Clutch Maximum Diameter: 3.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: TR70
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.000
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24613] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24622] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 95.250
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 3.750
- Pulley Outside Diameter: 3.750
- Pulley Ridge Diameter: 3.750
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Butt
- UPC: 096361575714
- Part Description: Honda Wagovan Remanufactured A C Compressor With Clutch
