Kia Sedona A/C Compressor
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Condition
- Brands
- Prices
$381.14Product Specifications- Clutch Maximum Diameter: 119.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 977014D910
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511206670
- Part Description: Kia Sedona A/C Compressor with Clutch
$266.07Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.65625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HCC-RS18
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.828125
- Mount Distance MM: 71.882
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24602] / Green Round O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24659] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 118.364
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.65625
- Pulley Outside Diameter: 4.65625
- Pulley Ridge Diameter: 4.65625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361623507
- Part Description: Kia Sedona Remanufactured A C Compressor With Clutch
$335.61Product Specifications- Clutch Maximum Diameter: 119.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 977014D901, 977014D900RU, 977014D900
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511197909
- Part Description: Kia Sedona A/C Compressor with Clutch
$427.75Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.0625
- Coil Clock Position: Lead Wire
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: VS18E
- Distance From Clutch To Mounting Flange: 2.84375
- ECV Harness Connector: SE30F, 26899 Female / / SE22M, 26882 Male
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: 24131
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: 24622
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.0625
- Pulley Outside Diameter: 4.0625
- Pulley Ridge Diameter: 4.0625
- Refrigerant Type: R134a
- Terminal Type: Pin
- UPC: 096361027633
- Part Description: Kia Sedona A C Compressor With Clutch
$281.58Product Specifications- Clutch Maximum Diameter: 115.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 1K52Y61450, 1K52Y61450A, 1K52Y61450B, RK52Y61450BU, RK52Y61450U
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511197831
- Part Description: Kia Sedona A/C Compressor with Clutch
$421.86 MSRP:$574.17You Save: $152.31 (27%)Product Specifications- Other Names: Compressor, Compressor Assembly
- Item Weight: 15.00 Pounds
- Replaces: 1K52Y61450A, 1K52Y61450
- Part Description: Kia Sedona Reman Compressor Assembly
$243.89Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HS20
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.796875
- Mount Distance MM: 71.120
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24068] / Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24069] / Gasket
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 117.475
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.625
- Pulley Outside Diameter: 4.625
- Pulley Ridge Diameter: 4.625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361671201
- Part Description: Kia Sedona Remanufactured A C Compressor With Clutch
$168.27Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.4375
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HS18
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.40625
- Mount Distance MM: 60.960
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24628] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24641] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 112.700
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.4375
- Pulley Outside Diameter: 4.4375
- Pulley Ridge Diameter: 4.4375
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361571198
- Part Description: Kia Sedona Remanufactured A C Compressor With Clutch
$292.78Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.65625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HCC-RS18
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.828125
- Mount Distance MM: 71.882
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24602] / Green Round O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24659] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 118.364
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.65625
- Pulley Outside Diameter: 4.65625
- Pulley Ridge Diameter: 4.65625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361622296
- Part Description: Kia Sedona A C Compressor With Clutch

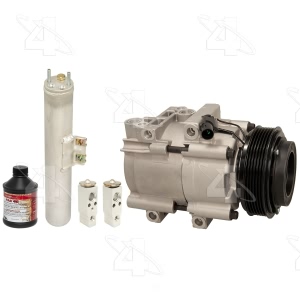

$304.91Product Specifications- Components Included: New Compressor, Filter Drier, Expansion Valves, Oil, and O-Rings
- UPC: 096361075535
- Part Description: Kia Sedona A C Compressor Kit
$274.29Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.625
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HS20
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.796875
- Mount Distance MM: 71.120
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24628] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24641] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 117.475
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.625
- Pulley Outside Diameter: 4.625
- Pulley Ridge Diameter: 4.625
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361681200
- Part Description: Kia Sedona A C Compressor With Clutch
$421.86 MSRP:$574.17You Save: $152.31 (27%)Product Specifications- Other Names: Compressor, Compressor Assembly
- Item Weight: 371.60 Pounds
- Replaces: 97701A9000
- Part Description: Kia Sedona Reman Compressor
$212.53Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.4375
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: HS18
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.40625
- Mount Distance MM: 60.960
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24628] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24641] / Green O-Ring
- O-Ring B Quantity: 1
- Printed Foot Note: DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 112.700
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.4375
- Pulley Outside Diameter: 4.4375
- Pulley Ridge Diameter: 4.4375
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Pin
- UPC: 096361581197
- Part Description: Kia Sedona A C Compressor With Clutch
$421.86 MSRP:$574.17You Save: $152.31 (27%)Product Specifications- Other Names: Compressor, Compressor Assembly
- Item Weight: 14.00 Pounds
- Replaces: 977014D900, 977014D901
- Part Description: Kia Sedona Reman Compressor Assembly
$421.86 MSRP:$574.17You Save: $152.31 (27%)Product Specifications- Other Names: Compressor, Compressor Assembly
- Item Weight: 390.70 Pounds
- Replaces: 977014D910
- Part Description: Kia Sedona REMAN Not Available
- $421.86 MSRP:
$574.17You Save: $152.31 (27%)Product Specifications- Other Names: Compressor, Compressor Assembly
- Item Weight: 14.30 Pounds
- Replaces: 1K52Y61450B
- Part Description: Kia Sedona Reman Compressor Assembly
Product Specifications- Belt Type: Serpentine
- Clutch Included: Yes
- Coil Clock Position: Wire Lead
- Coil Voltage: 12V
- Connector Terminal Quantity: 2
- Connector Type: Female, 2 Blade
- Mounting Type: Bolt-tangent
- New or Remanufactured: New
- Oil in Compressor: Yes
- Oil Type: PAG
- Package Contents: O-rings/sealing washers included
- Pulley Groove Quantity: 6
- Refrigerant Type: R134A
- Switch Included: No
- Switch Service Port: No
- UPC: 689604203989
- Part Description: Kia Sedona A C Compressor With Clutch
Product Specifications- UPC: 671607338539
- Part Description: Kia Sedona A/C Compressor
Product Specifications- UPC: 671607338621
- Part Description: Kia Sedona A/C Compressor
