Lincoln LS Fuel Pump
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Brands
- Prices
$237.78Product Specifications- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375''
- Outlet Type: Quick Connect
- Regulator Included: Yes
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604269480
- Vapor Pressure Sensor: No

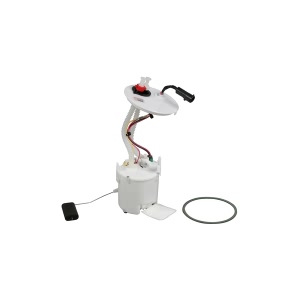

- Part Description: Lincoln LS Passenger Side Fuel Pump Module Assembly
TYC® Electric Fuel Pump for Lincoln LS
PartNumber: 152019-A$30.69Product Specifications- Accessories Included: yes
- Connector Pins Qty On Main Connector: 2 Pins
- GPH (Gallons Per Hour Flow): 63.4-72.7
- Max Pressure (psi): 94-130.5
- OE Part Number: YW4Z9H307BB
- Strainer Included: yes
- UPC: 762405827292
- Part Description: Lincoln LS Electric Fuel Pump
$25.75Product Specifications- Average Current Draw(A): 6.5
- Average Flow Rating(GPH): 135
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Maximum Pump Pressure (PSI): 116
- Minimum Pump Pressure (PSI): 72.5
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.5
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845113252
- Voltage: 12V
- Weight (lbs): 0.63
- Wire Harness Included: No
- Part Description: Lincoln LS Fuel Pump and Strainer Set
$169.80Product Specifications- Current Draw: 8
- Flow Rating: 31 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Female Push''
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 15.0
- Resistance Ohms Full: 160.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604233047
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: Lincoln LS Passenger Side Fuel Pump Module Assembly
$49.76Product Specifications- Connector Shape: Rectangle
- Fuel Pump Inlet Type: Strainer
- Fuel Sending Unit Included: No
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Count: 1
- Inlet Outside Diameter: 11.0
- Inlet Type: Strainer
- Internal or External: In Tank
- Internet Product Code (IPC): C0EBEADE0F1
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Length (Inch): 114.0
- Maximum Free Flow Rate (gph): 80
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2314
- Minimum Free Flow Rate: 33.0
- Minimum Free Flow Rate (gph): 70
- Minimum Pressure (psi): 90
- Mounting Hardware Included: No
- Muffler Outlet Diameter (in): 9.0
- Negative Ground: Yes
- Outlet Attachment: Outlet-HoseConnect
- Outlet Count: 1
- Outlet Fitting Thread Size: 1/4
- Outlet Quantity: 1
- Outlet Size: Outlet-.345
- Outlet Type: Hose Barb
- Package Contents: Pump and Kit
- Pump Type: Electric
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- Supplier Company Name: Airtex Products
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Spade
- Universal Or Specific Fit: Specific
- UPC: 080044008415
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: Lincoln LS In-Tank Fuel Pump and Strainer Set
$130.96Product Specifications- Current Draw: 6
- Flow Rating: 38 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 90.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604200827
- Voltage: 12.0 VDC
- Wiring Harness Included: No
- Part Description: Lincoln LS Fuel Pump And Strainer Set
$131.32Product Specifications- Average Current Draw(A): 9
- Average Flow Rating(GPH): 46
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Round
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: External and Internal
- Maximum Pump Pressure (PSI): 110
- Minimum Pump Pressure (PSI): 90
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Product Height (in): 5.51
- Product Length (in): 11.02
- Product Width (in): 11.02
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 15
- Resistance Ohms Full: 160
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845113993
- Voltage: 12V
- Weight (lbs): 2.42
- Wire Harness Included: No
- Part Description: Lincoln LS Electric Fuel Pump
Product Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 11EC1F45EEB
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E2388M
- Minimum Pressure (psi): 70.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044017417
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: Lincoln LS In-Tank Fuel Pump Module Assembly
OEM (Genuine) Lincoln LS Fuel Pump
PartNumber: 3W4Z-9275-ABProduct Specifications- Other Names: Fuel Pump
- Item Dimensions: 11.4 x 7.7 x 8.8 inches
- Item Weight: 1.60 Pounds
- Fitment Type: Direct Replacement
- Part Description: Lincoln LS Fuel Pump
Product Specifications- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): F4360A0B3FA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0184
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Supplier Company Name: DENSO
- UPC: 042511095564
- Part Description: Lincoln LS Fuel Pump And Strainer Set
OEM (Genuine) Lincoln LS Fuel Pump
PartNumber: YW4Z-9275-BCProduct Specifications- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 12.2 x 8.0 x 9.1 inches
- Item Weight: 2.40 Pounds
- Fitment Type: Direct Replacement
- Replaces: YW4Z-9275-BB, XW4Z-9275-BA
- Part Description: Lincoln LS Fuel Pump
OEM (Genuine) Lincoln LS Fuel Pump
PartNumber: YW4Z-9H307-BBProduct Specifications- Other Names: Fuel Pump
- Item Dimensions: 8.0 x 7.6 x 11.9 inches
- Item Weight: 2.90 Pounds
- Replaces: YW4Z-9H307-BA
- Part Description: Lincoln LS Fuel Pump
Product Specifications- Connector Shape: Round
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Grade Type: Regular
- Inlet Quantity: 1
- Inlet Type: Strainer
- Internal or External: Internal
- Lock Ring Included: No
- Minimum Flow Rating: 25
- Minimum Pressure (psi): 80.0
- Mounting Hardware Included: No
- Muffler Outlet Diameter (in): 9.5
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- Universal Or Specific Fit: Specific
- UPC: 889464031450
- Voltage [V]: 12V
- Wire Harness Included: No
- Wiring Harness Included: No
- Part Description: Lincoln LS Fuel Pump Module Assembly
OEM (Genuine) Lincoln LS Fuel Pump
PartNumber: 4W4Z-9H307-AAProduct Specifications- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 12.2 x 11.0 x 22.6 inches
- Item Weight: 4.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 3W4Z-9H307-AD
- Part Description: Lincoln LS Fuel Pump
