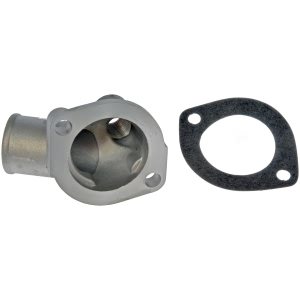

Mazda 626 Thermostat Housing
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
Cooling Systems, Fans & Radiators
- Department
- Brands
- Prices
$12.88Product Specifications- Bolt Hole Center To Bolt Hole Center: 2.625
- Gasket or Seal Included: Included
- Inlet Dia. IN: 1.170
- Material: Aluminum
- Maximum Height: 1.980
- Meets / Exceeds OEM: Yes
- Mnt Flange Width IN: 0.394
- Style: w/o Thermostat
- Symetrical Base: Yes
- Thermostat Included: Not Included
- UPC: 096361848641
- Part Description: Mazda 626 Engine Coolant Water Outlet W O Thermostat
$12.55Product Specifications- Bolt Hole Center To Bolt Hole Center: 2.625
- Gasket or Seal Included: Not Included
- Inlet Dia. IN: 1.163
- Material: Aluminum
- Maximum Height: 2.762
- Meets / Exceeds OEM: Yes
- Mnt Flange Width IN: 0.424
- Style: w/o Thermostat
- Symetrical Base: Yes
- Thermostat Included: Not Included
- UPC: 096361851542
- Part Description: Mazda 626 Engine Coolant Water Inlet W O Thermostat
$13.08Product Specifications- Air Vent (Bleeder Valve): No
- Bolt Hole Diameter: 0.313"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Natural
- Housing Neck Angle (°): 180 Degree
- Material: Metal
- O Rings Included: Not Required
- OE Part Number: E92Z8592B, F202-15-172B
- Outlet Diameter: 1.875"
- Thermostat Included: No
- UPC: 885484547865
- Part Description: Mazda 626 Engine Coolant Thermostat Housing
$11.12Product Specifications- Bolt Hole Center To Bolt Hole Center: 2.625
- Gasket or Seal Included: Included
- Inlet Dia. IN: 1.078
- Material: Aluminum; Aluminum / Cast Iron
- Maximum Height: 2.3985
- Meets / Exceeds OEM: Yes
- Mnt Flange Width IN: 0.459
- Style: w/o Thermostat
- Symetrical Base: Yes
- Thermostat Included: Not Included
- UPC: 096361849464
- Part Description: Mazda 626 Engine Coolant Water Outlet W O Thermostat
$9.38Product Specifications- Bolt Hole Center To Bolt Hole Center: 3.1875
- Gasket or Seal Included: Included
- Inlet Dia. IN: 1.137
- Material: Aluminum; Aluminum / Cast Iron
- Maximum Height: 2.0965
- Meets / Exceeds OEM: Yes
- Mnt Flange Width IN: 0.4135
- Style: w/o Thermostat
- Symetrical Base: Yes
- Thermostat Included: Not Included
- UPC: 096361849815
- Part Description: Mazda 626 Engine Coolant Water Outlet W O Thermostat
Product Specifications- Air Vent (Bleeder Valve): No
- Bolt Hole Center To Bolt Hole Center: 2.65"
- Bolt Hole Diameter: 0.35"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Natural
- Flange Thickness: 0.17"
- Gasket or Seal Included: No
- Height: 1.5"
- Housing Neck Angle (°): 5 Degree
- Inlet Port Diameter: 1.15"
- Material: Metal
- Mount Hole Diameter: 0.35"
- Mount Hole Quantity: 2
- O-Rings Included: No
- OE Part Number: F20115172B
- Outlet Diameter: 1.84"
- Thermostat Included: No
- UPC: 885484677685
- Part Description: Mazda 626 Engine Coolant Thermostat Housing
Product Specifications- Air Vent (Bleeder Valve): No
- Bolt Hole Diameter: 0.313"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Natural
- Housing Neck Angle (°): 45 Degree
- Material: Metal
- O Rings Included: Not Required
- OE Part Number: FS0515172
- Outlet Diameter: 1.313"
- Thermostat Included: No
- UPC: 885484543805
- Part Description: Mazda 626 Engine Coolant Thermostat Housing
Product Specifications- Air Vent (Bleeder Valve): Yes
- Bolt Hole Diameter: 0.313"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Natural
- Housing Neck Angle (°): 30 Degree
- Material: Metal
- O Rings Included: Not Required
- OE Part Number: F80116151
- Outlet Diameter: 1.375"
- Thermostat Included: No
- UPC: 885484548244
- Part Description: Mazda 626 Engine Coolant Thermostat Housing
Product Specifications- Air Vent (Bleeder Valve): No
- Bolt Hole Diameter: 0.313"
- Bolt Hole Quantity: 2
- Bolts Included: No
- Color/Finish: Natural
- Housing Neck Angle (°): 90 Degree
- Material: Metal
- O Rings Included: Not Required
- OE Part Number: E0TZ8592C
- Outlet Diameter: 1.375"
- Thermostat Included: No
- UPC: 885484547940
- Part Description: Mazda 626 Engine Coolant Thermostat Housing
