Mercedes-Benz 500SEC A/C Compressor
Select vehicle to guarantee fit
Make
Model
Year
< Back to View All
A/C & Heating
- Department
- Condition
- Brands
- Prices
$217.60Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA17C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 0.65625
- Mount Distance MM: 16.510
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 120.650
- Pulley Groove Quantity: 8
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Switch Included: Speed Sensor
- Terminal Type: Bullet
- UPC: 096361773448
- w/ Diode: Yes

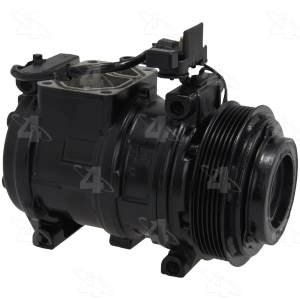

- Part Description: Mercedes-Benz 500SEC Remanufactured A C Compressor With Clutch
$526.67Product Specifications- Clutch Maximum Diameter: 120.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 1192300011, 0002300411, 000230041180
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511166042

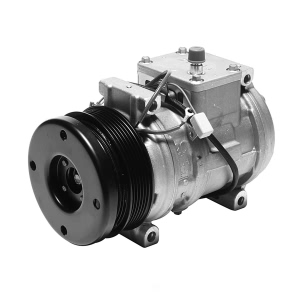

- Part Description: Mercedes-Benz 500SEC A/C Compressor with Clutch
$380.49Product Specifications- Belt Width IN: 0.4375
- Belt Width MM: 11.113
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: 2
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: A6
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 2.000
- Mount Distance MM: 50.800
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: New
- O-Ring A Number/Desc: [24619] / Green Oval O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 123.698
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Superheat
- Terminal Type: Spade
- UPC: 096361580985

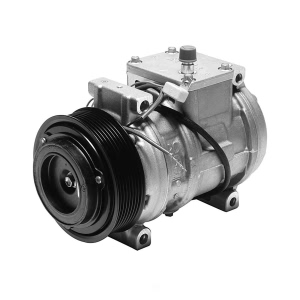

- Part Description: Mercedes-Benz 500SEC A C Compressor With Clutch
$324.34Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.250
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA17C
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 0.703125
- Mount Distance MM: 17.780
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 107.950
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.250
- Pulley Outside Diameter: 4.250
- Pulley Ridge Diameter: 4.250
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Switch Included: Speed Sensor
- Terminal Type: Bullet
- UPC: 096361583351
- w/ Diode: Yes

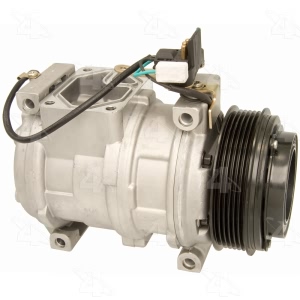

- Part Description: Mercedes-Benz 500SEC A C Compressor With Clutch
$338.05Product Specifications- Belt Width IN: 0.4375
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: 2
- Coil Type: Spade
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 150
- Compressor Type: A6
- Distance From Clutch To Mounting Flange: 2.000
- Mounting Hardware: Not Included
- Mounting Type: Direct Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24619] / Green Oval O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 123.698
- Pulley Groove Quantity: 1
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suc Prt Typ Note: W/ O-Ring
- Suction Port Type: Block Mount
- Switch Included: Superheat
- Terminal Type: Spade
- UPC: 096361570986
- Part Description: Mercedes-Benz 500SEC Remanufactured A C Compressor With Clutch
Product Specifications- Clutch Maximum Diameter: 120.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 119230001180, 1192300011
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511166035
- Part Description: Mercedes-Benz 500SEC A/C Compressor with Clutch
Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.250
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA17C
- Distance From Clutch To Mounting Flange: 0.703125
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 107.950
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.250
- Pulley Outside Diameter: 4.250
- Pulley Ridge Diameter: 4.250
- Refrigerant Type: R134a
- Reman w/o Clutch: [57304] / Clutch Assembly
- Suction Port Type: Pad Mount
- Switch Included: Speed Sensor
- Terminal Type: Bullet
- UPC: 096361573352
- w/ Diode: Yes
- Part Description: Mercedes-Benz 500SEC Remanufactured A C Compressor With Clutch
