Home
>
Monterey
>
Engine & Drivetrain
>
Crankshafts, Pistons, Rings & Connecting Rods
>
Piston
Mercury Monterey Piston
Select vehicle to guarantee fit
Make
Model
Year
Or
Enter the VIN of Your Vehicle
Filter Results
< Back to View All
Crankshafts, Pistons, Rings & Connecting Rods
Department
OE
Replacement
Brands
Sealed Power
Prices
$49.99 and under
$50 to $69.99
$70 to $99.99
$100 and over
13
Products found
Sort by:
Recommended
Filter Results
Sort
View by
Sealed Power®
Recessed Top Piston for Mercury Monterey
PartNumber:
354P
Make sure this part fits,
Select Vehicle
$50.48
View Details
Product Specifications
Bore: 4.1300"
Compression Distance: 1.665
Head Illustration: 31
Head Type: Recessed Head .120 deep - 10.2:1 C.R.
Minimum Clearance: 0.0015 @ 2.570 from top of head
Part Material: Cast
Pin Diameter: 0.9753"
Pin Offset: 0.06"
Ring 1 Qty: 2
Ring 1 Width: 5/64
Ring 2 Qty: 1
Ring 2 Width: 3/16
UPC: 724956346516
Part Description: Mercury Monterey Recessed Top Piston
More Info
Sealed Power®
Vintage Flat Top Piston for Mercury Monterey
PartNumber:
1011P
Make sure this part fits,
Select Vehicle
$44.98
View Details
Product Specifications
Bore: 3.6250"
Compression Distance: 1.858
Head Illustration: 23
Head Type: Flat Head - 8.3:1 C.R.
Minimum Clearance: 0.001 @ 3.130 from top of head
Part Material: Cast
Pin Diameter: 0.9122"
Pin Offset: 0.062"
Ring 1 Qty: 2
Ring 1 Width: 3/32
Ring 2 Qty: 1
Ring 2 Width: 3/16
UPC: 724956316687
Part Description: Mercury Monterey Vintage Flat Top Piston
More Info
Sealed Power®
Piston for Mercury Monterey
PartNumber:
H850CP
Make sure this part fits,
Select Vehicle
$38.16
View Details
Product Specifications
Bore: 3.8100"
Compression Distance: 1.263"
Head Illustration: 14
Material: Hypereutectic
Minimum Clearance: See Piston Fitting Information on carton label
Pin Diameter: 23.012 mm
Pin Offset: 0.762 mm
Pin Type: P
Ring 1 Qty: 1
Ring 1 Width: 1.50mm
Ring 2 Qty: 1
Ring 2 Width: 1.50mm
Ring 3 Qty: 1
Ring 3 Width: 3.00mm
Size: Standard
UPC: 614046344402
Weight W Pin Gram: 00526.+/- 00.
Part Description: Mercury Monterey Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:
H418CP
Make sure this part fits,
Select Vehicle
$26.80
View Details
Product Specifications
Bore: 110.7400 mm
Compression Distance: 1.752"
Dome Volume CC: - 021.0
Head Illustration: 44
Material: Hypereutectic
Minimum Clearance: See Piston Fitting Information on carton label
Pin Diameter: 1.0402"
Pin Offset: 1.524 mm
Ring 1 Qty: 2
Ring 1 Width: 5/64"
Ring 2 Qty: 1
Ring 2 Width: 3/16"
Size: Standard
UPC: 614046227347
Part Description: Mercury Monterey Engine Piston
More Info
Sealed Power®
Piston for Mercury Monterey
PartNumber:
WH418CP
Make sure this part fits,
Select Vehicle
$27.40
View Details
Product Specifications
Bore: 4.3600"
Compression Distance: 1.752"
Dome Volume CC: - 021.0
Head Illustration: 44
Material: Hypereutectic
Minimum Clearance: See Piston Fitting Information on carton label
Pin Diameter: 26.421 mm
Pin Offset: 0.06"
Ring 1 Qty: 2
Ring 1 Width: 5/64"
Ring 2 Qty: 1
Ring 2 Width: 3/16"
Size: Standard
UPC: 614046687998
Part Description: Mercury Monterey Piston
More Info
Sealed Power®
Piston for Mercury Monterey
PartNumber:
1022NP
Make sure this part fits,
Select Vehicle
Product Specifications
Size: Standard
UPC: 019826521279
Part Description: Mercury Monterey Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:
427NP
Make sure this part fits,
Select Vehicle
Product Specifications
Compression Distance: 1.630
Head Illustration: 165
Head Type: Recessed Head .145 deep x 3.000 dia. w/2 valve reliefs - 7.9:1 C.R.
Minimum Clearance: 0.0015 @ 2.320 from top of head
Note 1: Standard Size
Part Material: Cast
Pin Diameter: 24.768
Pin Diameter (Inch): 0.9751
Pin Offset: 1.524
Pin Offset (Inch): 0.06
Ring 1 Qty: 2
Ring 1 Width: 5/64
Ring 2 Qty: 1
Ring 2 Width: 3/16
Standard Size: Standard
UPC: 019826083401
Weight W Pin Gram: 751
Part Description: Mercury Monterey Engine Piston
More Info
View Related Parts
OEM (Genuine)
Mercury Monterey Piston
PartNumber:
5L3Z-6108-AA
Make sure this part fits,
Select Vehicle
Product Specifications
Item Weight:
2.40 Pounds
Replaces:
XL3Z-6108-AA
Part Description:
Mercury Monterey Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:

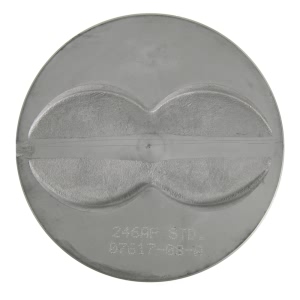

246AP
Make sure this part fits,
Select Vehicle
Product Specifications
Note 1: Standard Size
Standard Size: Standard
UPC: 019826512741
Part Description: Mercury Monterey Engine Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:
381NP
Make sure this part fits,
Select Vehicle
Product Specifications
Bore: 101.6000
Bore (Inch): 4.0500
Compression Distance: 1.660
Head Illustration: 31
Head Type: Recessed Head .097 deep x 2.620 dia. w/4 valve pockets
Minimum Clearance: 0.0015 @ 2.630 from top of head
Note 1: Standard Size
Part Material: Cast
Pin Diameter: 24.773
Pin Diameter (Inch): 0.9753
Ring 1 Qty: 1
Ring 1 Width: 5/64
Ring 2 Qty: 1
Ring 2 Width: 3/32
Ring 3 Qty: 1
Ring 3 Width: 3/16
Standard Size: Standard
UPC: 614046897274
Part Description: Mercury Monterey Engine Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:
416P
Make sure this part fits,
Select Vehicle
Product Specifications
Bore: 101.6000
Bore (Inch): 4.0000
Compression Distance: 1.720
Head Illustration: 14
Head Type: Recessed Head .240 deep - 7.7:1 C.R.
Minimum Clearance: 0.0015 @ 2.430 from top of head
Note 1: Standard Size
Part Material: Cast
Pin Diameter: 23.17
Pin Diameter (Inch): 0.9122
Pin Offset: 1.524
Pin Offset (Inch): 0.06
Ring 1 Qty: 2
Ring 1 Width: 5/64
Ring 2 Qty: 1
Ring 2 Width: 3/16
Standard Size: Standard
UPC: 724956351220
Part Description: Mercury Monterey Engine Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:
H304P
Make sure this part fits,
Select Vehicle
Product Specifications
Bore: 101.6000
Bore (Inch): 4.0500
Compression Distance: 1.759
Head Illustration: 184
Head Type: Recessed Head .080 deep x 3.220 dia. w/4 valve reliefs
Minimum Clearance: 0.001 @ 2.800 from top of head
Note 1: Standard Size
Part Material: Hypereutectic
Pin Diameter: 24.768
Pin Diameter (Inch): 0.9751
Pin Offset: 1.524
Pin Offset (Inch): 0.06
Ring 1 Qty: 1
Ring 1 Width: 5/64
Ring 2 Qty: 1
Ring 2 Width: 3/32
Ring 3 Qty: 1
Ring 3 Width: 3/16
Standard Size: Standard
UPC: 724956679706
Part Description: Mercury Monterey Engine Piston
More Info
Sealed Power®
Engine Piston for Mercury Monterey
PartNumber:
WH850CP
Make sure this part fits,
Select Vehicle
Product Specifications
Bore: 96.8000
Compression Distance: 1.263
Head Illustration: 14
Head Type: Oblong Recessed Head .140 deep; DUROSHIELD~ skirt coated piston
Minimum Clearance: See Piston Fitting Information on carton label
Note 1: Standard Size
Package Alert: Single Piston
Part Alert: Single Piston
Part Material: Hypereutectic
Pin Diameter: 0.906
Pin Offset: 0.762
Pin Type: P
Ring 1 Qty: 1
Ring 1 Width: 1.50mm
Ring 2 Qty: 1
Ring 2 Width: 1.50mm
Ring 3 Qty: 1
Ring 3 Width: 3.00mm
Standard Size: Standard
UPC: 614046692961
Weight W Pin Gram: 00526.+/- 00.
Part Description: Mercury Monterey Engine Piston
More Info
