Maintenance & Lubrication > Transmission

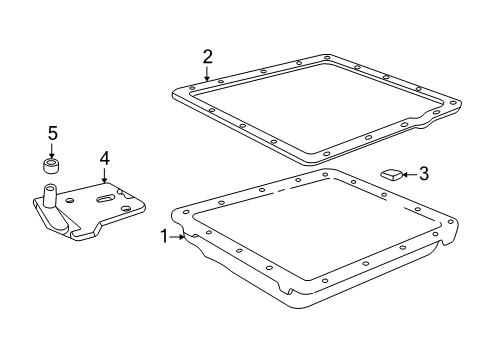

Diagram (1 of 1): Transmission Components

Diagram for 2000 GMC Savana 2500 Transmission

Ref No.

Part No. & Part Description

Price & Qty.

- 1

  24204278
  Oil Pan
  Part Notes: Mt1 Transmission, W/Drain Plug
  $128.99 $77.92
- 8654799
  Oil Pan
  Part Notes: M30 Transmission, Deep Pan
  $12.16 $7.67
- 8667545
  Oil Pan
  Part Notes: M30 Transmission, Shallow Pan
  $69.23 $41.82
- 2

  8654799
  Oil Pan Gasket
  Part Notes: M30 Transmission
  $12.16 $7.67
- 8677743
  Oil Pan Gasket
  Part Notes: Mt1 Transmission
  $77.30 $46.68
- 3
  24239049
  Magnet
  $11.51 $6.95
- 4

  24208576
  Filter
  Part Notes: Deep Pan
  $66.89 $36.94
- 24236799
  Filter
  Part Notes: Shallow Pan
  $60.94 $33.66
- 5

  8656613
  Filter Seal
  $11.15 $6.74

You may also look for following parts

8654382
Plug, Automatic Transmission Fluid Pressure Test Hole
PLUG, Transmission Case
$4.88 $3.08 View Details
Fits 2000 GMC Savana:4 Cyl 2.8L Diesel, 6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L, 8 Cyl 8.1L
24205900
Cover, Torque Converter Housing Access Hole
COVER, Transmission Case
$11.26 $7.09 View Details
Fits 2000 GMC Savana:4 Cyl 2.8L Diesel, 6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L
24215111
Switch, Automatic Transmission Fluid Pressure Man Valve Position
SWITCH, Transmission Main Control Valve Body
$59.05 $33.90 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L
24205899
Plug, Torque Converter Housing Access Hole
PLUG, Transmission Case
$10.56 $6.66 View Details
Fits 2000 GMC Savana:8 Cyl 6.0L, 8 Cyl 6.0L Flex
104918
Ball Grade 2 Std Diameter 1/4 (2) Dj
Standard Parts
$0.07 $0.05 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L, 8 Cyl 8.1L
24221350
Gasket Kit, Control Valve Body Spacer Plate
GASKET KIT, Transmission Main Control Valve Body
$20.39 $12.79 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L
24220158
Valve, Pressure Control Solenoid
VALVE, Transmission Main Control Valve Body
$182.20 $110.07 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.5L Diesel, 8 Cyl 7.4L, 8 Cyl 8.1L
24209794
Spring, 1-2 Accumulator Piston
SPRING, Transmission Servo & Accumulator
$9.02 $5.46 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 5.0L, 8 Cyl 5.7L, 8 Cyl 6.5L Diesel, 8 Cyl 7.4L
12337931
Gasket, Automatic Transmission Fluid Pump
GASKET, Transmission Front Servo
$12.79 $7.74 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L
8657163
Seal, Man Shift Shaft
SEAL, Range Selector
$10.61 $6.41 View Details
Fits 2000 GMC Savana:6 Cyl 4.3L, 8 Cyl 4.8L, 8 Cyl 4.8L Flex, 8 Cyl 5.0L, 8 Cyl 5.3L, 8 Cyl 5.3L Flex, 8 Cyl 5.7L, 8 Cyl 6.0L, 8 Cyl 6.0L Flex, 8 Cyl 6.5L Diesel, 8 Cyl 6.6L Diesel, 8 Cyl 7.4L, 8 Cyl 8.1L
