2005 Pontiac Bonneville Alternator

My VehicleChange Vehicle

2005 Pontiac Bonneville

Change Vehicle

Vehicle Options

OE Parts Categories

Charging & Starting > Alternator

2 diagrams found for your vehicle Select your vehicle options to narrow down results

Diagram (1 of 2):

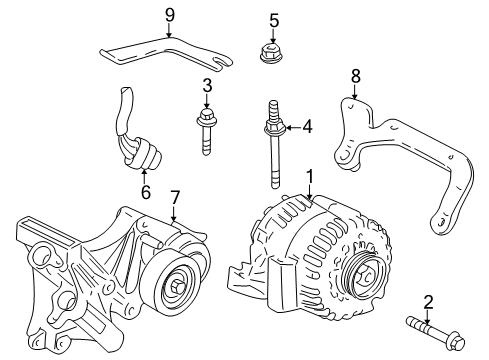

Electrical - Alternator (3.8L)
Diagram (2 of 2):

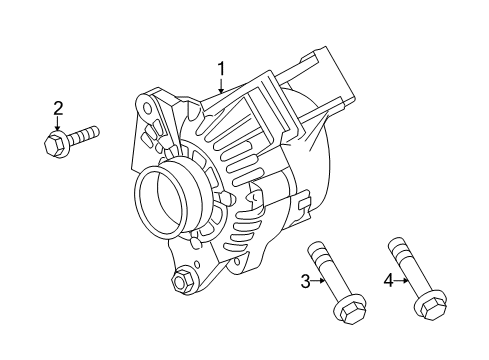

Electrical - Alternator (4.6L)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  15145637
  Alternator
  Part Notes: 3.8 Liter, 105 Amp
  $554.06$306.11
- 2
  11516109
  Alternator Bolt
  Alternator Mount Bolt
  Part Notes: 3.8 Liter, Front
  $6.09$3.84
- 3
  11515770
  Alternator Bolt
  Alternator Mount Bolt
  Part Notes: 3.8 Liter, Upper
  $5.51$3.48
- 4
  24507943
  Alternator
  Alternator Stud
  Part Notes: 3.8 Liter
  $5.07$3.18
- 5
  11514597
  Alternator Nut
  Part Notes: 3.8 Liter
  $6.74$3.73
- 6
  15306009
  Connector
  Part Notes: 3.8 Liter
  $59.68$32.96
- 8
  12593195
  Support Bracket
  Part Notes: 3.8 Liter, W/O Supercharger
  $473.77$298.40
- 9
  24507942
  Rear Brace
  Part Notes: 3.8 Liter, W/O Supercharger
  $10.70$6.48
- 11515769
  Alternator Bolt
  Part Notes: 4.6 Liter, Front
  $6.00$4.37
- 11516109
  Alternator
  Alternator Bolt
  Part Notes: 4.6 Liter, Side, Rear
  $6.09$3.84
- 11516360
  Alternator Bolt
  Part Notes: 4.6 Liter, Side, Front
  $5.56$3.51
- 25759776
  Alternator
  Part Notes: Bonneville, Lesabre; 4.6L
  $489.78$270.59

You may also look for following parts

12048074
Term Switch Lock Cyl Front Door (10/Bag)
Standard Parts
$2.58 $1.43 View Details
Fits 2005 Pontiac Bonneville:6 Cyl 3.8L
11609961
Nut Asm - Conical Spring Washer
NUT, Battery Cable
$8.37 $5.28 View Details
Fits 2005 Pontiac Bonneville:6 Cyl 3.8L, 8 Cyl 4.6L
84009381
GENERATOR Assembly
Generator Asm
$483.40 $267.07
Fits 2005 Pontiac Bonneville:8 Cyl 4.6L
