2006 Cadillac STS Air Conditioner

3 diagrams found for your vehicleSelect your vehicle options to narrow down results

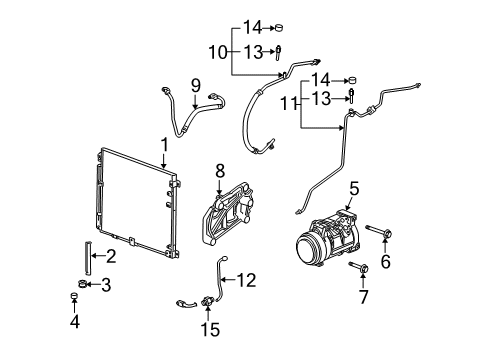

Diagram (1 of 3)

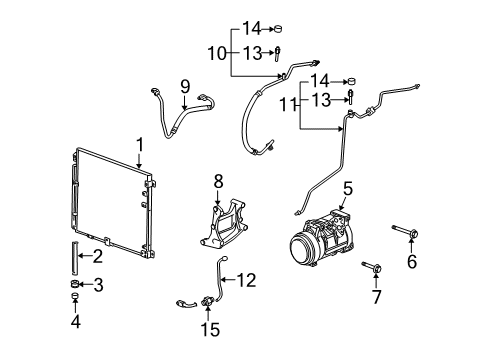

Diagram (2 of 3)

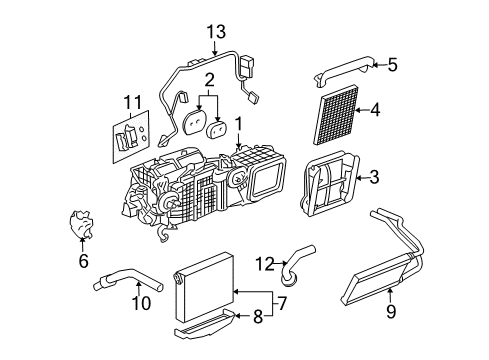

Diagram (3 of 3)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  88957420
  Condenser
  3.6 LITER, w/o trailer pkg;4.4 & 4.6 LITER, 4.6 liter, w/o trailer pkg
  $251.64$166.82
- 89022521
  Condenser
  3.6 LITER, w/trailer pkg;4.4 & 4.6 LITER, 4.6 liter, w/trailer pkg
  $449.23$297.82
- 4
  89023442
  Plug
  3.6 LITER;4.4 & 4.6 LITER
  Replaced By:
  84951727
  $18.15$9.63
- 5
  89023452
  Compressor assy
  3.6 LITER
  $473.70$314.05
- 6
  11588734
  Compressor assy upper bolt
  3.6 LITER
  $5.51$3.48
- 8
  12572043
  Mount bracket
  3.6 LITER
  ----
- 9
  25837289
  Discharge hose
  3.6 LITER
  ----
- 10
  25815298
  Suction hose
  3.6 LITER
  $150.24$79.62
- 12
  15932848
  AC tube
  3.6 LITER;4.4 & 4.6 LITER, 4.6 liter
  $203.83$108.03
- 13
  88958095
  Service valve
  3.6 LITER;4.4 & 4.6 LITER
  $25.79$13.68
- 14
  88957401
  Service valve cap
  3.6 LITER;4.4 & 4.6 LITER
  $13.86$7.36
- 11519173
  Compressor rear bolt
  4.4 & 4.6 LITER;3.6 LITER
  $21.05$13.27
- 89022546
  Evaporator core
  2005-07
  $194.28$102.96
- 12567478
  Mount bracket
  4.4 & 4.6 LITER
  ----
- 89023394
  Evaporator core insulator
  2005-07
  $22.63$12.01
- 19129757
  Condenser
  4.4 & 4.6 LITER, 4.4 liter
  ----
- 89022545
  AC & heater case
  2005-07
  ----
- 19129758
  AC tube
  4.4 & 4.6 LITER, 4.4 liter
  $174.12$92.27
- 25740400
  Drain hose
  2005-07
  $22.90$12.15
- 19129999
  Expansion valve
  2005-07
  $163.96$86.89
- 25770406
  Liquid line
  4.4 & 4.6 LITER, 4.4 liter;3.6 LITER
  $105.16$55.72
- 25815299
  Liquid line
  4.4 & 4.6 LITER, 4.6 liter
  Replaced By:
  19418046
  $260.34$137.97
- 19130428
  Cover
  2005-07
  $16.97$10.70
- 89023453
  Compressor
  4.4 & 4.6 LITER
  $473.70$314.05
- 19130561
  Housing
  2005-07
  $90.08$56.73
- 25740401
  AC & heater case seal kit
  2005-07
  ----
- 25770404
  Suction hose
  4.4 & 4.6 LITER, 4.4 liter
  $183.08$100.68
- 25815297
  Suction hose
  4.4 & 4.6 LITER, 4.6 liter
  $226.17$119.85
- 89023392
  Temp aspirator
  2005-07
  $32.32$17.14
- 25770405
  Discharge hose
  4.4 & 4.6 LITER, 4.4 liter
  $156.42$82.89
- 25837288
  Discharge hose
  4.4 & 4.6 LITER, 4.6 liter
  ----
- 89022548
  Heater core
  2005-07
  $108.86$57.69
- 3522360
  Compressor front bolt
  4.4 & 4.6 LITER
  $4.78$3.00
- 89023388
  Actuator
  2005-07, mode valve
  $93.06$51.17
- 89023389
  Actuator
  2005-07, temp valve, front
  Location:
  Left
  $76.78$36.54
- 89023390
  Actuator
  2005-07, temp valve, front
  Location:
  Right
  $92.09$48.80
- 89023391
  Actuator
  2005-07, temp valve, rear
  Location:
  Left
  $89.32$49.12
- 88957450
  Filter
  2005-07
  $42.11$23.26
- 88958089
  Pressure switch
  4.4 & 4.6 LITER;3.6 LITER
  $102.10$54.10
- 89023393
  Wire harness
  2005-07
  $90.15$54.46
