2006 Chevrolet Suburban 2500 Frame & Components

4 diagrams found for your vehicleSelect your vehicle options to narrow down results

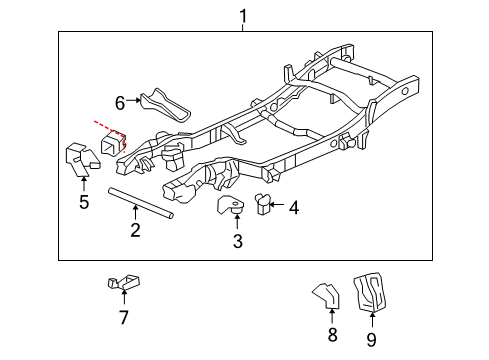

Diagram (1 of 4)

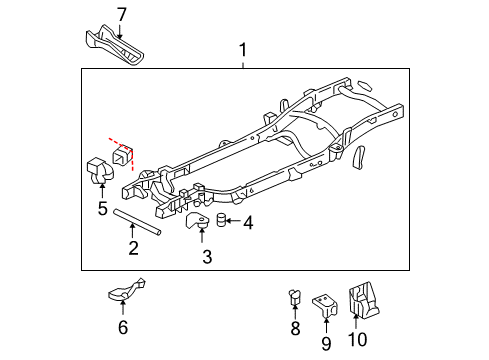

Diagram (2 of 4)

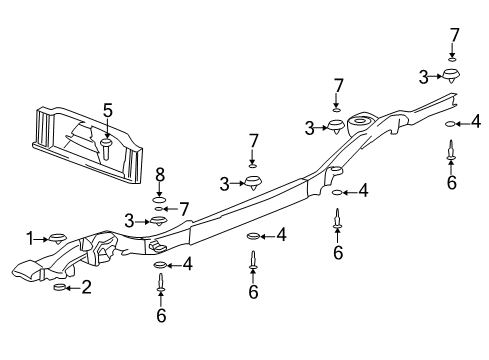

Diagram (3 of 4)
Diagram (4 of 4)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  15837581
  Cushion
  2WD, 2500 SERIES, radiator, upper;4WD, 2500 SERIES, radiator, upper
  Location:
  Right;Left
  $49.81$33.01
- 3
  15201142
  Cushion
  2WD, 2500 SERIES, body, upper;4WD, 2500 SERIES, body, upper
  Location:
  Left;Right
  $36.79$23.38
- 4
  15201791
  Cushion
  2WD, 2500 SERIES, body, lower;4WD, 2500 SERIES, body, lower
  Location:
  Right;Left
  $54.71$34.78
- 5
  15766752
  Mount bolt
  2WD, 2500 SERIES, radiator;4WD, 2500 SERIES, radiator
  Location:
  Right;Left
  Replaced By:
  11562547
  $9.50$5.99
- 7
  15743841
  Mount bolt retainer
  2WD, 2500 SERIES;4WD, 2500 SERIES
  $3.49$2.21
- 8
  15018264
  Shim
  2WD, 2500 SERIES, 1.5mm;4WD, 2500 SERIES, 1.5mm
  $4.97$3.15
- 11562587
  Mount bolt
  4WD, 2500 SERIES, body;2WD, 2500 SERIES, body
  Location:
  Left;Right
  ----
- 12474450
  Support brace
  4WD, 2500 SERIES, front lwr cntrl arm
  ----
- 15020940
  Tow hook
  2WD, 2500 SERIES
  Location:
  Left
  $143.71$95.25
- 15020941
  Tow hook
  2WD, 2500 SERIES
  Location:
  Right
  $143.71$95.25
- 12335638
  Bumper bracket
  4WD, 2500 SERIES;2WD, 2500 SERIES
  Location:
  Right
  $192.11$127.33
- 12335639
  Bumper bracket
  2WD, 2500 SERIES;4WD, 2500 SERIES
  Location:
  Left
  $196.92$130.52
- 12474451
  Support brace
  2WD, 2500 SERIES, front lwr cntrl arm
  ----
- 15020940
  Tow hook
  4WD, 2500 SERIES
  Location:
  Left
  $143.71$95.25
- 15020941
  Tow hook
  4WD, 2500 SERIES
  Location:
  Right
  $143.71$95.25
- 12476434
  Hanger
  2WD, 2500 SERIES
  Location:
  Right;Left
  ----
- 12476435
  Reinforcement
  2WD, 2500 SERIES
  Location:
  Left;Right
  ----
- 12476437
  Hanger
  4WD, 2500 SERIES
  Location:
  Right;Left
  $211.15$116.66
- 12476438
  Reinforcement
  4WD, 2500 SERIES
  Location:
  Right;Left
  ----
- 15018263
  Shim
  4WD, 2500 SERIES, 3.0mm;2WD, 2500 SERIES, 3.0mm
  $6.58$4.14
- 15835666
  Bumper
  2WD, 2500 SERIES
  Location:
  Left;Right
  $55.28$33.39
- 12477749
  Support bracket
  2WD, 2500 SERIES, radiator;4WD, 2500 SERIES, radiator
  Location:
  Left
  ----
- 12477750
  Support bracket
  2WD, 2500 SERIES, radiator;4WD, 2500 SERIES, radiator
  Location:
  Right
  ----
- 15161761
  Bumper
  2WD, 2500 SERIES, front lwr cntrl arm
  ----
- 15835666
  Bumper
  4WD, 2500 SERIES, front lwr cntrl arm
  Location:
  Right;Left
  $55.28$33.39
- 15201791
  Cushion
  4WD, 2500 SERIES, radiator, lower;2WD, 2500 SERIES, radiator, lower
  Location:
  Left;Right
  $54.71$34.78
- 15719509
  Front c'member
  2WD, 2500 SERIES;4WD, 2500 SERIES
  $209.53$138.88
- 15873153
  Frame assy
  2WD, 2500 SERIES
  ----
- 15873154
  Frame assy
  4WD, 2500 SERIES
  ----
