2006 Chevrolet Suburban 2500 Ignition System

My VehicleChange Vehicle

2006 Chevrolet Suburban 2500

Change Vehicle

Vehicle Options

OE Parts Categories

Electrical > Ignition System

2 diagrams found for your vehicle Select your vehicle options to narrow down results

Diagram (1 of 2):

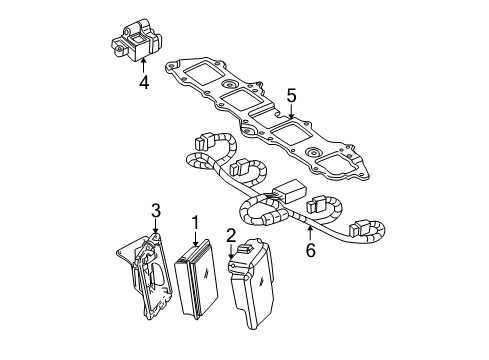

Electrical - Ignition System (5.3 & 6.0L)
Diagram (2 of 2):

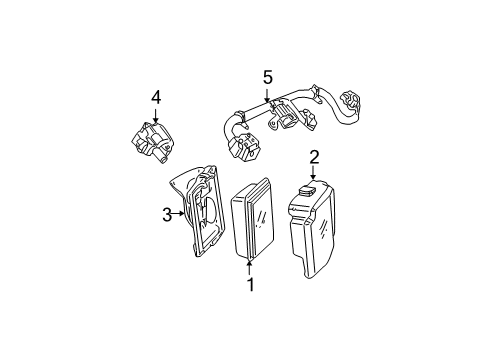

Electrical - Ignition System (8.1L)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  89017750
  ECM
  Part Notes: 5.3 & 6.0 Liter
  $497.54$277.40
- 3
  15047570
  ECM Bracket
  Part Notes: 5.3 & 6.0 Liter;8.1L
  $29.19$18.31
- 4
  10457730
  Ignition Coil
  Part Notes: 5.3 & 6.0 Liter, Delphi
  Replaced By: 19418992
  $123.87$78.00
- 5
  10457736
  Ignition Coil Bracket
  Part Notes: 5.3 & 6.0 Liter
  $281.83$170.27
- 6
  19351572
  Wire
  Part Notes: 5.3 & 6.0 Liter
  Replaced By: 19417607
  $154.86$82.07
- 12601825
  Harness
  Part Notes: 8.1L
  Location: Driver Side;Passenger Side
  $281.45$177.27
- 15071609
  ECM Cover
  Part Notes: 5.3 & 6.0 Liter;8.1L
  $12.58$6.96
- 19351571
  Cable Set
  Part Notes: All Models; 4.8L, 5.3L, 6.0L; Coil Stamped 19005218
  Replaced By: 19417606
  $136.66$72.42
- 19351577
  Cable Set
  Part Notes: All Models; 8.1L
  Replaced By: 19417609
  $158.63$84.08
- 19417606
  Cable Set
  Part Notes: All Models; 4.8L, 5.3L, 6.0L; Coil Stamped 19005218
  $136.66$72.42
- 19417609
  Cable Set
  Part Notes: All Models; 8.1L
  $158.63$84.08
- 19418993
  Ignition Coil
  Part Notes: 5.3 & 6.0 Liter, Mitsubishi;8.1L
  Location: Driver Side;;Passenger Side
  $114.60$60.73
