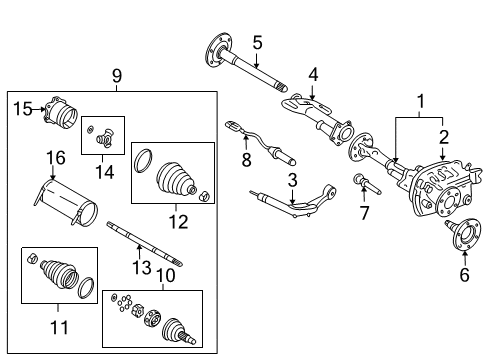

Diagram (1 of 1): Front Suspension - Carrier & Front Axles

Diagram for 2006 GMC Sierra 3500 Carrier & Front Axles

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  25931925
  Differential Carrier
  Part Notes: 4WD, All
  $3743.23 $2357.66
- 2

  23362369
  Carrier Housing
  Part Notes: 4WD, All
  $487.74 $307.19
- 3

  23229694
  Mount Bracket
  Part Notes: 4WD, 3/4, 1 Ton
  $227.61 $143.36
- 4

  12479295
  Axle Housing
  Part Notes: 4WD, 3/4, 1 Ton
  $225.47 $141.36
- 5
  15801500
  Axle Shaft
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Passenger Side
  $533.22 $322.16
- 6
  26058806
  Axle Shaft
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Driver Side
  $861.90 $666.67
- 7

  19121909
  Shaft
  Part Notes: 4WD, Clutch
  $344.43 $208.09
- 8

  26060073
  Actuator
  Part Notes: 4WD
  $235.71 $142.41
- 9
  20875738
  Axle Assembly
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Passenger Side;Driver Side
  Replaced By: 85126785
  $285.54 $164.05
- 10
  26058362
  CV Joint
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Driver Side;Passenger Side
  $405.72 $194.24
- 11
  15868188
  Outer Boot
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Passenger Side;Driver Side
  $91.43 $55.24
- 12
  26062618
  Inner Boot
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Driver Side;Passenger Side
  $52.01 $32.74
- 14
  26062617
  Spider Assembly
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Driver Side;Passenger Side
  Replaced By: 15295246
  $277.06 $174.50
- 15
  15295246
  Housing
  Part Notes: 4WD, 3/4, 1 Ton
  Location: Driver Side;Passenger Side
  $277.06 $174.50
- 16
  26039449
  Protector
  Part Notes: 4WD
  Location: Driver Side;Passenger Side
  $208.59 $131.37
