2006 GMC Sierra 3500 Pick Up Box Components

2 diagrams found for your vehicleSelect your vehicle options to narrow down results

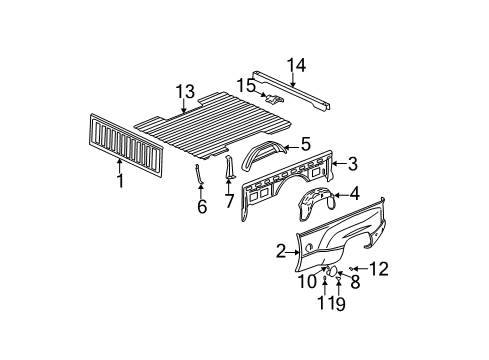

Diagram (1 of 2)

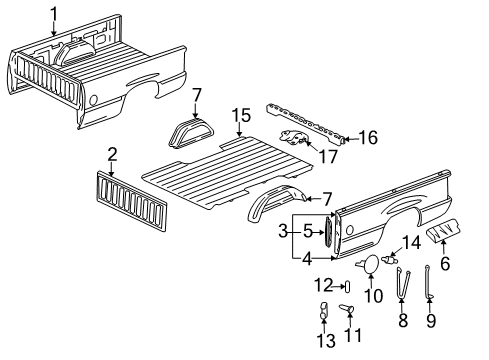

Diagram (2 of 2)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  15711104
  Front panel
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  $600.55$398.08
- 2
  15251777
  Side panel
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Left
  ----
- 15251778
  Side panel
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Right
  ----
- 4
  15116838
  Wheelhouse liner
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Right
  $419.03$277.75
- 15116839
  Wheelhouse liner
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Left
  $419.03$277.75
- 5
  15761951
  Inner wheelhouse
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Right;Left
  $276.01$175.49
- 6
  15711716
  Front brace
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Right
  $59.96$39.74
- 15711717
  Front brace
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Left
  $59.96$39.74
- 7
  15711132
  Rear brace
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Right
  $89.33$59.21
- 15711715
  Rear brace
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Left
  ----
- 8
  15124080
  Fuel door
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  $111.86$74.14
- 9
  11609341
  Fuel door bolt
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  --$13.06
- 10
  15521574
  Fuel door
  Fuel door pin
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  $6.23$4.14
- 11
  15521575
  Fuel door
  Fuel door spring
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  $7.92$5.26
- 12
  15152450
  Bumper
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  $1.63$1.04
- 13
  15214279
  Floor
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  ----
- 14
  20982004
  Rear cross sill
  8 FT FLEETSIDE, W/DUAL REAR WHEELS
  $378.43$240.62
- 15031996
  Bracket
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS, rear lamp harness
  ----
- 15072622
  Shield
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Left
  ----
- 15072623
  Shield
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Right
  ----
- 15072624
  Rear brace
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Right
  $64.45$42.71
- 15072625
  Rear brace
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Left
  $64.45$42.71
- 15124080
  Fuel door
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  $111.86$74.14
- 15195677
  Outer panel
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Right
  $855.17$566.86
- 15195678
  Outer panel
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Left
  $855.17$566.86
- 15213066
  Filler panel
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Left
  $59.95$39.73
- 15213067
  Filler panel
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Right
  $59.95$38.11
- 15214277
  Floor
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  ----
- 15244380
  Side panel assy
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS;8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Left
  $1054.78$699.17
- 15244381
  Side panel assy
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS;8 FT FLEETSIDE, W/DUAL REAR WHEELS
  Location:
  Right
  $1054.78$699.17
- 15283098
  Bumper
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  $5.32$3.53
- 15521574
  Fuel door pin
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  $6.23$4.14
- 15521575
  Fuel door spring
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  $7.92$5.26
- 15711104
  panel
  Front panel
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  $600.55$398.08
- 15711212
  Front brace
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Right
  $107.25$71.09
- 15711213
  Front brace
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Left
  $107.25$71.09
- 15761951
  Wheelhouse
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  Location:
  Left;Right
  $276.01$175.49
- 19211659
  Liner
  8 FT FLEETSIDE, W/DUAL REAR WHEELS, Chevrolet
  $305.00$252.76
- 19211661
  Liner
  8 FT FLEETSIDE, W/DUAL REAR WHEELS, GMC;8 FT FLEETSIDE, W/O DUAL REAR WHEELS, GMC
  ----
- 20982004
  Rear cross sill
  8 FT FLEETSIDE, W/O DUAL REAR WHEELS
  $378.43$240.62
