2008 Ford F-350 Super Duty Anti-Lock Brakes

3 diagrams found for your vehicleSelect your vehicle options to narrow down results

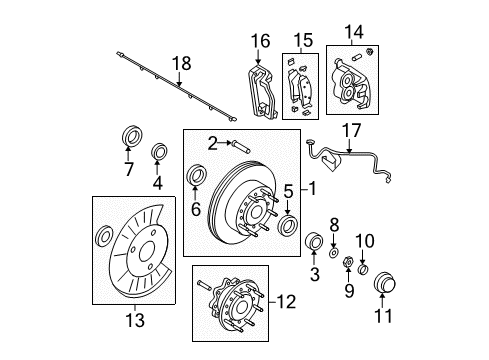

Diagram (1 of 3)

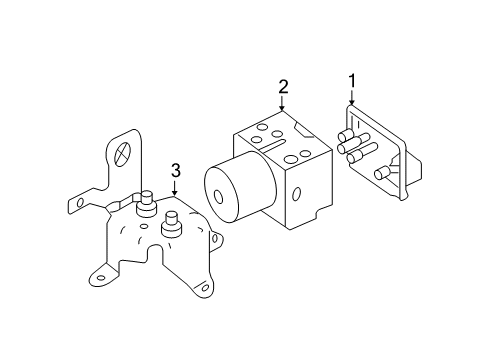

Diagram (2 of 3)

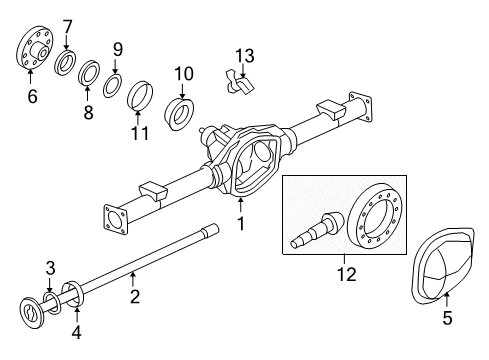

Diagram (3 of 3)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  CC3Z-1102-A
  Hub & rotor
  2WD, TWIN I BEAM, w/single rear wheels
  Location:
  Left;Right
  $250.00$164.99
- CC3Z-1102-B
  Hub & rotor
  2WD, TWIN I BEAM, w/dual rear wheels
  Location:
  Left;Right
  $383.33$250.69
- 2
  2C2Z-1107-AA
  Wheel stud
  2WD, TWIN I BEAM
  $10.42$7.26
- 3
  7C3Z-1216-A
  Outer bearing
  2WD, TWIN I BEAM
  Location:
  Left;Right
  $68.65$47.36
- 4
  7C3Z-4221-A
  Inner bearing
  2WD, TWIN I BEAM
  Location:
  Right;Left
  $60.67$41.85
- 5
  8C3Z-1202-A
  Inner bearing race
  2WD, TWIN I BEAM, outer
  Location:
  Right;Left
  $21.55$14.75
- 6
  CC3Z-1217-A
  Inner bearing race
  2WD, TWIN I BEAM, inner
  Location:
  Left;Right
  Replaced By:
  CC3Z-1217-B
  $16.33$11.38
- 7
  8C3Z-1190-A
  Grease seal
  2WD, TWIN I BEAM
  Location:
  Right;Left
  $12.49$7.98
- 8
  7C3Z-1195-A
  seal
  Grease seal washer
  2WD, TWIN I BEAM
  Location:
  Right;Left
  $8.33$5.81
- 9
  -W709159-S300
  Grease seal nut
  2WD, TWIN I BEAM
  Location:
  Left;Right
  $10.00$5.81
- 10
  -W709160-S300
  Grease seal retainer
  2WD, TWIN I BEAM
  Location:
  Left;Right
  $10.00$5.81
- 11
  7C3Z-1131-A
  Grease cap
  2WD, TWIN I BEAM
  Location:
  Right;Left
  $14.85$10.35
- 12
  HC3Z-1A014-A
  Grease cap spacer
  2WD, TWIN I BEAM, w/dual rear wheels
  Location:
  Left;Right
  $507.08$340.68
- 13
  8C3Z-2K004-A
  Splash shield
  2WD, TWIN I BEAM
  Location:
  Right
  $22.00$14.05
- 8C3Z-2K005-A
  Splash shield
  2WD, TWIN I BEAM
  Location:
  Left
  $22.00$13.80
- 14
  AC3Z-2B120-A
  Caliper
  2WD, TWIN I BEAM, F250, F350, SRW
  Location:
  Right
  $129.47$79.37
- AC3Z-2B120-B
  Caliper
  2WD, TWIN I BEAM, F350, DRW
  Location:
  Right
  $121.27$74.41
- AC3Z-2B121-A
  Caliper
  2WD, TWIN I BEAM, F250, F350, SRW
  Location:
  Left
  ----
- AC3Z-2B121-B
  Caliper
  2WD, TWIN I BEAM, F350, DRW
  Location:
  Left
  $121.27$74.41
- 15
  AU2Z-2V001-D
  Brake pads
  2WD, TWIN I BEAM, F250, F350, SRW;2WD, TWIN I BEAM, F350, DRW
  ----
- 16
  AC3Z-2B134-A
  Adapter
  2WD, TWIN I BEAM, F350
  $122.73$74.24
- 17
  8C3Z-2078-C
  Brake hose
  2WD, TWIN I BEAM
  Location:
  Right
  $42.00$26.32
- 8C3Z-2078-CL
  Brake hose
  2WD, TWIN I BEAM
  Location:
  Left
  $42.00$26.32
- 18
  AC3Z-2C204-A
  ABS sensor
  2WD, TWIN I BEAM
  Location:
  Left;Right
  $122.18$73.91
- 3C3Z-4851-BA
  Flange
  F250, F350, w/dual rear wheel
  Replaced By:
  BC3Z-4676-B
  $25.00$17.41
- 8C3Z-4851-A
  Flange
  F250, F350, w/single rear wheel
  $223.47$122.67
- 5C3Z-4234-BA
  Axle shaft
  F250, F350, w/o dual rear wheel
  Location:
  Left
  $269.35$177.76
- 5C3Z-4234-BB
  Axle shaft
  F250, F350, w/o dual rear wheel
  Location:
  Right
  $266.62$146.37
- 7C3Z-2C286-A
  Control valve
  F250, F350
  $645.00$433.43
- 8C3Z-4234-C
  Axle shaft
  F250, F350, w/dual rear wheels
  Location:
  Right
  $232.05$157.32
- 8C3Z-4234-D
  Axle shaft
  F250, F350, w/dual rear wheels
  Location:
  Left
  $229.08$155.31
- 6L3Z-9E731-A
  ABS sensor
  F250, F350
  ----
- 7C3Z-2C204-A
  FRONT SPEED SENSOR
  F350 Super Duty; Twin I-Beam Suspension
  $96.36$58.29
- 7C3Z-2C325-A
  Mount bracket
  ----
- E5TZ-4A331-A
  Axle shaft o-ring
  F250, F350
  Location:
  Left;Right
  $2.13$1.49
- 8C3Z-4010-AB
  Axle housing
  F250, F350, w/single rear wheel, 6.4 Liter;F250, F350, w/single rear wheel, 5.4, 6.8 Liter
  ----
- AC3Z-2C219-A
  Control module
  F250, F350
  ----
- BC3Z-4010-G
  Axle housing
  F250, F350, w/dual rear wheels
  ----
- 8C3Z-4033-A
  Rear cover
  F250, F350, w/single rear wheel, 6.4 Liter
  $179.33$121.58
- BC3Z-4033-C
  Rear cover
  F250, F350, w/dual rear wheel, 6.4 Liter
  $200.58$135.99
- F81Z-4033-AA
  Rear cover
  F250, F350, w/dual rear wheel, 5.4, 6.8 Liter
  $52.22$36.02
- 8C3Z-4209-F
  Pinion gear
  F250, F350, w/o dual rear wheels, w/3.73 ratio
  $569.22$414.38
- 8C3Z-4209-G
  Pinion gear
  F250, F350, w/o dual rear wheels, w/4.10 ratio
  $671.23$488.65
- 8C3Z-4209-H
  Pinion gear
  F250, F350, w/o dual rear wheels, w/4.30 ratio
  ----
- YC3Z-4209-A
  Pinion gear
  F250, F350, w/dual rear wheels, w/3.73 ratio
  ----
- YC3Z-4209-B
  Pinion gear
  F250, F350, w/dual rear wheels, w/4.10 ratio
  ----
- YC3Z-4209-C
  Pinion gear
  F250, F350, w/dual rear wheels, w/4.30 ratio
  ----
- BC3Z-4676-B
  Seal
  F250, F350, w/dual rear wheel
  $25.00$17.41
- BL3Z-4676-A
  Seal
  F250, F350, w/single rear wheel
  $15.00$10.45
- BL3Z-4621-B
  Bearing cup
  F250, F350, w/o dual rear wheels
  $31.33$24.07
- F81Z-4616-DA
  Bearing cup
  F250, F350, w/dual rear wheels
  $62.67$42.85
- BL3Z-4621-B
  Bearing
  F250, F350, w/o dual rear wheels
  $31.33$24.07
- F81Z-4621-BA
  Bearing
  F250, F350, w/dual rear wheels
  $128.00$86.77
- D5AZ-4670-A
  Slinger
  F250, F350
  $2.19$1.54
- F3TZ-4859-B
  Flange deflector
  F250, F350
  $4.67$3.26
