2009 Chevrolet Silverado 3500 HD Hydraulic System

3 diagrams found for your vehicle Select your vehicle options to narrow down results
  • Thumbnail Cab - Components On Dash Panel (3/4 & 1 Ton,Crew) for 2009 Chevrolet Silverado 3500 HD Hydraulic System
    Diagram (1 of 3):

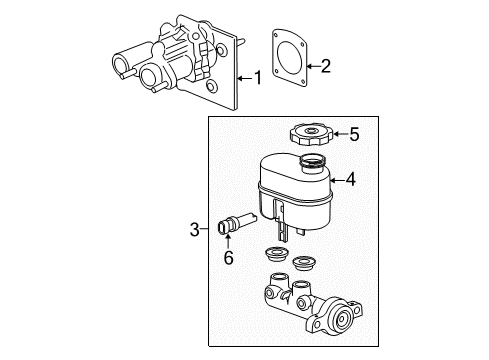

    Cab - Components On Dash Panel (3/4 & 1 Ton,Crew)
  • Thumbnail Cab - Components On Dash Panel (3/4 & 1 Ton,Extended) for 2009 Chevrolet Silverado 3500 HD Hydraulic System
    Diagram (2 of 3):

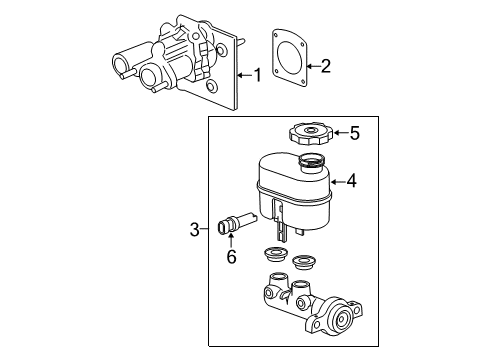

    Cab - Components On Dash Panel (3/4 & 1 Ton,Extended)
  • Thumbnail Cab - Components On Dash Panel (3/4 & 1 Ton,Standard) for 2009 Chevrolet Silverado 3500 HD Hydraulic System
    Diagram (3 of 3):
    Cab - Components On Dash Panel (3/4 & 1 Ton,Standard)
Ref No.
Part No. & Part Description
Price & Qty.
    • 3 Chevrolet 84397947
      84397947
      Part Notes: Crew Cab, 3/4 & 1 Ton, W/O Trailer Brake, W/O Active Brake;Extended Cab, 3/4 & 1 Ton, W/O Trailer Brake, W/O Active Brake;Standard Cab, 3/4 & 1 Ton, W/O Trailer Brake, W/O Active Brake
      • Replaced By: 19420963
      $193.85$102.73
    • 4 Chevrolet 19209202
      19209202
      Part Notes: Crew Cab, 3/4 & 1 Ton;Standard Cab, 3/4 & 1 Ton
      $141.84$78.36
    • Chevrolet 15935843
      15935843
      Part Notes: Extended Cab, 3/4 & 1 Ton, W/Trailer Brake;Crew Cab, 3/4 & 1 Ton, W/Trailer Brake;Standard Cab, 3/4 & 1 Ton, W/Trailer Brake
      • Replaced By: 19420964
      $250.61$126.29
    • Chevrolet 84543807
      84543807
      Part Notes: Standard Cab, 3/4 & 1 Ton, W/O Trailer Brake, W/Active Brake;Crew Cab, 3/4 & 1 Ton, W/O Trailer Brake, W/Active Brake;Extended Cab, 3/4 & 1 Ton, W/O Trailer Brake, W/Active Brake
      • Replaced By: 19420962
      $200.63$106.33
    • Chevrolet 18012741
      18012741
      Part Notes: Standard Cab, 3/4 & 1 Ton;Crew Cab, 3/4 & 1 Ton;Extended Cab, 3/4 & 1 Ton
      $22.85$12.57
    • Chevrolet 19371362
      19371362
      Part Notes: Standard Cab, 3/4 & 1 Ton;Crew Cab, 3/4 & 1 Ton;Extended Cab, 3/4 & 1 Ton
      $430.24$237.69
    • Chevrolet 22688449
      22688449
      Part Notes: Standard Cab, 3/4 & 1 Ton;Extended Cab, 3/4 & 1 Ton;Crew Cab, 3/4 & 1 Ton
      $11.36$6.29
    • Chevrolet 84397949
      84397949
      Part Notes: Extended Cab, 3/4 & 1 Ton
      • Replaced By: 19420966
      $79.60$40.11
