2009 GMC Sierra 2500 HD Ignition System

2 diagrams found for your vehicle Select your vehicle options to narrow down results

Diagram (1 of 2):

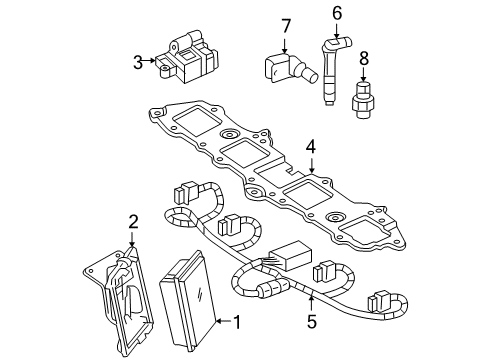

Electrical - Ignition System (4.8,5.3,6.0 & 6.2L)
Diagram (2 of 2):

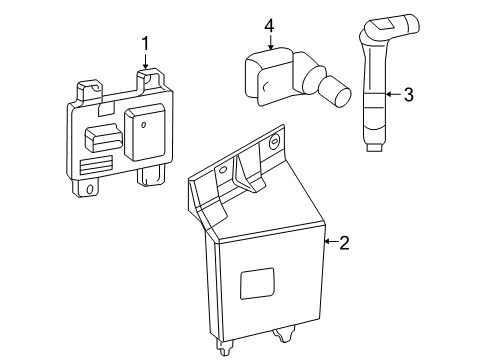

Electrical - Ignition System (6.6L Diesel)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  12625455
  Ecm
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  $367.54$195.31
- 2
  23213449
  Mount Bracket
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  $7.78$4.29
- 3
  12611424
  Ignition Coil
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter, Mitsubishi
  $149.16$79.05
- 12699382
  Ignition Coil
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter, Delphi
  $138.16$65.76
- 4
  12580353
  Bracket
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  $44.92$23.80
- 5
  12579355
  Wire
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  $192.18$101.85
- 6
  12591720
  Camshaft Sensor
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  $86.14$41.47
- 7
  12585546
  Crankshaft Sensor
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  Replaced By: 12703627
  $73.84$40.79
- 8
  12623730
  Knock Sensor
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  $20.04$10.63
- 12621258
  Spark Plug
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter
  --$0.00
- 19351570
  Plug Wire Set
  Part Notes: 4.8, 5.3, 6.0 & 6.2 Liter;Silverado, Sierra; 4.8L, 5.3L, 6.0L
  $163.36$89.84
- 15827915
  Mount Bracket
  Part Notes: 6.6 Liter Diesel
  $20.85$13.14
- 19260758
  Ecm
  Part Notes: 6.6 Liter Diesel
  $644.21$358.56
- 97365037
  Crankshaft Sensor
  Part Notes: 6.6 Liter Diesel
  $127.18$67.40
- 97365038
  Camshaft Sensor
  Part Notes: 6.6 Liter Diesel
  $137.00$72.60
