Suspension > Carrier & Front Axles

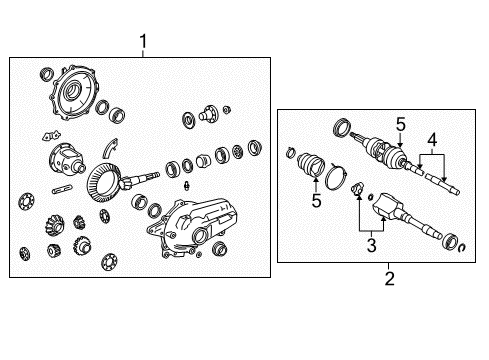

Diagram (1 of 1): Front Suspension - Carrier & Front Axles

Diagram for 2009 Lexus IS350 Carrier & Front Axles

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  41110-30A11
  Carrier Assembly
  Part Notes: AWD
  $2125.99$1543.98
- 2
  43410-30021
  Axle Assembly
  Part Notes: AWD
  Location: Passenger Side
  $1099.10$798.21
- 43420-30021
  Axle Assembly
  Part Notes: AWD
  Location: Driver Side
  $867.02$629.66
- 3
  43030-30020
  Inner Joint
  Part Notes: AWD
  Location: Passenger Side
  $612.37$452.08
- 43040-30020
  Inner Joint
  Part Notes: AWD
  Location: Driver Side
  $593.36$438.05
- 4
  43460-39217
  Outer Joint Assembly
  Part Notes: AWD
  Location: Passenger Side
  $215.35$162.86
- 43470-39427
  Outer Joint Assembly
  Part Notes: AWD
  Location: Driver Side
  $264.94$200.36
- 5
  04427-30081
  Boot Kit
  Part Notes: AWD, Inner & Outer
  Location: Passenger Side
  $133.09$101.44
- 04428-30101
  Boot Kit
  Part Notes: AWD, Inner & Outer
  Location: Driver Side
  $133.09$101.44
