2010 Cadillac SRX Wiper & Washer Components

2 diagrams found for your vehicle Select your vehicle options to narrow down results

Diagram (1 of 2):

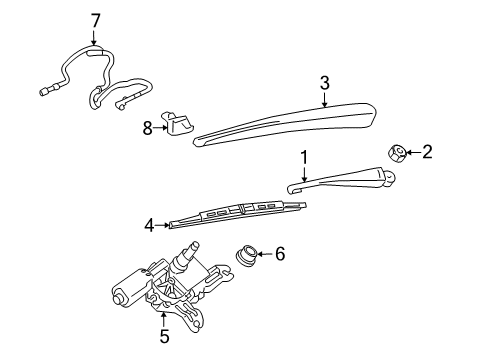

Lift Gate - Wiper & Washer Components
Diagram (2 of 2):

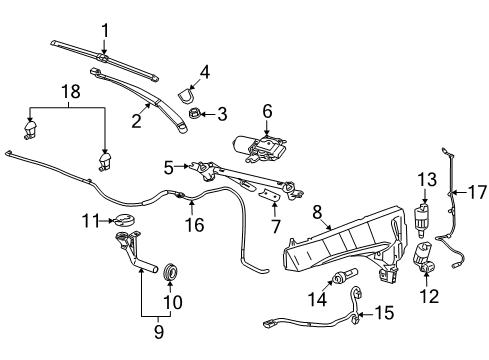

Windshield - Wiper & Washer Components

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  22755246
  Wiper
  Wiper Arm
  $40.68$21.55
- 2
  11569591
  Wiper Arm
  Wiper Arm Nut
  $1.57$0.88
- 3
  25937776
  Cover
  $28.09$15.52
- 4
  20825882
  Wiper
  Wiper Blade
  $18.71$10.34
- 5
  15949229
  Wiper Motor
  $264.37$140.10
- 6
  25855003
  Wiper Motor
  Wiper Motor Seal
  $4.79$3.03
- 7
  20930848
  Washer Hose
  $37.19$23.42
- 8
  15949210
  Washer
  Washer Nozzle
  $22.37$14.10
- 11609634
  Wiper Arm Nut
  Location: Driver Side;Passenger Side
  $10.50$5.81
- 13227300
  Reservoir Cap
  $9.16$4.86
- 15949225
  Washer Hose
  Part Notes: Front
  $44.49$24.58
- 15949226
  Washer Hose
  Part Notes: Rear
  $34.29$20.71
- 22696792
  Wiper Motor Spacer
  $14.63$9.23
- 22870539
  Wiper Blade
  Location: Driver Side
  $34.99$18.56
- 22870540
  Wiper Blade
  Location: Passenger Side
  $34.99$18.56
- 22872978
  Wiper Arm
  Location: Driver Side
  $104.34$57.64
- 22872979
  Wiper Arm
  Location: Passenger Side
  $83.50$39.74
- 22927764
  Washer Reservoir
  Part Notes: W/Headlamp Washer
  $111.30$58.98
- 22927765
  Washer Reservoir
  Part Notes: W/O Headlamp Washer
  $132.35$70.13
- 25788745
  Wiper
  Wiper Arm Cap
  Location: Passenger Side;Driver Side
  $131.56$69.72
- 25823361
  Washer Nozzle
  Location: Passenger Side;Driver Side
  $19.67$10.87
- 25903491
  Harness
  $34.20$21.53
- 25979358
  Filler Tube
  $29.83$16.49
- 25979363
  Level Indicator
  $49.68$26.32
- 25979366
  Washer Pump
  Part Notes: Headlamp
  $63.56$33.68
- 25979368
  Washer Pump
  Part Notes: Windshield
  $49.03$25.98
- 25979382
  Wiper Motor
  $201.38$106.72
- 25979384
  Transmission
  $142.95$75.76
