2010 Lexus IS350 Motor & Components

2 diagrams found for your vehicleSelect your vehicle options to narrow down results

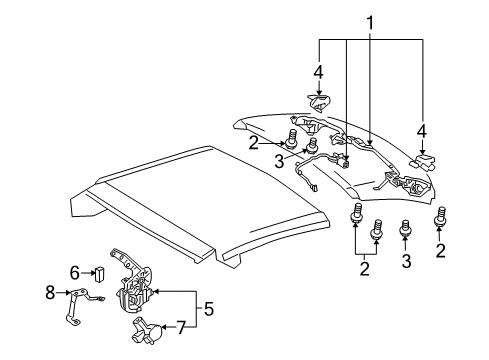

Diagram (1 of 2)

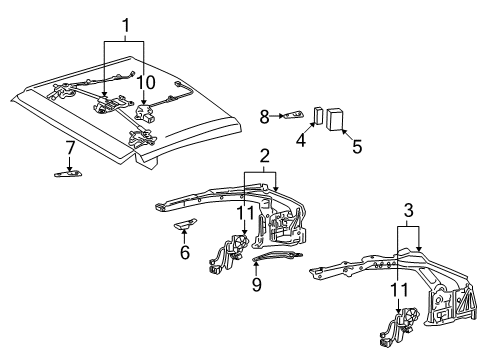

Diagram (2 of 2)

Ref No.

Part No. & Part Description

Price & Qty.

- 1
  63027-53011
  assy
  Lock assy
  REAR PANEL
  $1228.46$884.76
- 2
  90149-60079
  assy
  Lock assy mount bolt
  REAR PANEL, #1
  $1.29$1.02
- 3
  90153-50012
  assy
  Lock assy mount bolt
  REAR PANEL, #2
  $1.32$1.04
- 4
  63281-53010
  Lock assy stopper
  REAR PANEL
  Location:
  Right
  $26.75$20.87
- 63282-53010
  Lock assy stopper
  REAR PANEL
  Location:
  Left
  Replaced By:
  63282-53011
  $26.60$20.76
- 5
  85470-53010
  Hinge assy
  REAR PANEL
  Location:
  Right
  $1119.55$806.32
- 85480-53010
  Hinge assy
  REAR PANEL
  Location:
  Left
  $1119.55$806.32
- 6
  63651-53010
  Hinge assy
  Hinge assy base
  REAR PANEL
  Location:
  Left;Right
  $23.26$18.17
- 7
  63290-53010
  Motor
  REAR PANEL
  Location:
  Right
  $884.34$636.92
- 63290-53020
  Motor
  REAR PANEL
  Location:
  Left
  $884.34$636.92
- 8
  63125-53110
  Motor shim
  REAR PANEL, 1.0mm
  Location:
  Right
  $12.91$10.08
- 63125-53120
  Motor shim
  REAR PANEL, 2.0mm
  Location:
  Right
  $14.50$11.32
- 63125-53130
  Motor shim
  REAR PANEL, 3.2mm
  Location:
  Right
  $18.20$14.21
- 63125-53140
  Motor shim
  REAR PANEL, 4.0mm
  Location:
  Right
  $20.24$15.81
- 63125-53150
  Motor shim
  REAR PANEL, 1.0mm
  Location:
  Left
  $12.91$10.08
- 63125-53160
  Motor shim
  REAR PANEL, 2.0mm
  Location:
  Left
  $14.50$11.32
- 63125-53170
  Motor shim
  REAR PANEL, 3.2mm
  Location:
  Left
  $18.20$14.21
- 63125-53180
  Motor shim
  REAR PANEL, 4.0mm
  Location:
  Left
  $20.24$15.81
- 61819-53010
  Hinge assy
  Hinge assy seal
  FRONT PANEL, large
  Location:
  Left;Right
  $12.37$9.67
- 61827-53010
  assy
  Hinge assy seal
  FRONT PANEL, small
  Location:
  Right;Left
  $8.61$6.73
- 63021-53010
  assy
  Hinge assy
  FRONT PANEL
  Location:
  Right
  $2452.59$1766.43
- 63022-53010
  assy
  Hinge assy
  FRONT PANEL
  Location:
  Left
  $2452.59$1766.43
- 63125-53030
  Hinge assy shim
  FRONT PANEL, lower, 1.0mm
  Location:
  Right
  $16.16$12.61
- 63125-53050
  Hinge assy shim
  FRONT PANEL, lower, 3.2mm
  Location:
  Right
  $27.22$21.24
- 63125-53070
  Hinge assy shim
  FRONT PANEL, lower, 1.0mm
  Location:
  Left
  $16.16$12.61
- 63125-53090
  Hinge assy shim
  FRONT PANEL, lower, 3.2mm
  Location:
  Left
  $27.22$21.24
- 63125-53310
  Hinge assy shim
  FRONT PANEL, upper, front, .5mm
  Location:
  Left;Right
  $7.05$5.50
- 63125-53320
  Hinge assy shim
  FRONT PANEL, upper, front, 1.0mm
  Location:
  Left;Right
  $4.41$3.45
- 63125-53330
  Hinge assy shim
  FRONT PANEL, upper, rear, .5mm
  Location:
  Right;Left
  $0.92$0.74
- 63125-53340
  Hinge assy shim
  FRONT PANEL, upper, rear, 1.0mm
  Location:
  Left;Right
  $1.30$1.02
- 63203-53031
  assy
  Latch assy
  FRONT PANEL
  $1058.58$762.42
- 63239-53010
  Hinge assy
  Hinge assy stopper
  FRONT PANEL
  Location:
  Left;Right
  $18.53$14.46
- 63240-53020
  Motor
  FRONT PANEL, hinge assembly
  Location:
  Right
  $884.34$636.92
- 63250-53020
  Motor
  FRONT PANEL, hinge assembly
  Location:
  Left
  $884.34$636.92
- 63260-53080
  Motor
  FRONT PANEL, latch assembly
  $689.20$504.66
