1989 Mazda 323 A/C & Heating
My Vehicle Change Vehicle
1989 Mazda 323
Product Specifications- Notes: Cut to Length, 5";Cut to Length, 23"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.25"
- OE Part Number: 34580
- UPC: 072053133219
- Weight Per Length: 6 lbs./Carton
- Working Pressure (psi): 60
- Part Description: 1989 Mazda 323 Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1989 Mazda 323 | All Trims | 4 Cyl 1.6L
Product Specifications- Notes: w/10P13F Compressor; New w/Clutch; w/6 Groove Pulley
- Belt Width IN: 0.875
- Belt Width MM: 22.225
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10P13F
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.546875
- Mount Distance MM: 39.37
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24613] / Green O-Ring
- O-Ring A Quantity: 4
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 120.65
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Spade
- UPC: 096361683976
- Part Description: 1989 Mazda 323 A C Compressor With Clutch
Vehicle Fitment- 1989 Mazda 323 | All Trims | 4 Cyl 1.6L
Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 1/4
- End 2 Inside Diameter: 1/4
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 14 1/4
- UPC: 038244597482
- Part Description: 1989 Mazda 323 Small Id Hvac Heater Hose
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Notes: Cut to fit
- Centerline Length (in): 12.5"
- Inside Diameter 1 (in): 0.62"
- Number of Branches: 0
- UPC: 072053178838
- Part Description: 1989 Mazda 323 Hvac Heater Molded Hose
Vehicle Fitment- 1989 Mazda 323 | All Trims | 4 Cyl 1.6L
Product Specifications- Notes: w/10P13F Compressor; Reman w/Clutch; w/6 Groove Pulley; May Req use of OE Manifold
- Belt Width IN: 0.875
- Belt Width MM: 22.225
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10P13F
- Discharge Port Type: Pad Mount
- Distance From Clutch To Mounting Flange: 1.546875
- Mount Distance MM: 39.370
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24613] / Green O-Ring
- O-Ring A Quantity: 4
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 120.650
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Suction Port Type: Pad Mount
- Terminal Type: Spade
- UPC: 096361673977
- Part Description: 1989 Mazda 323 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1989 Mazda 323 | All Trims | 4 Cyl 1.6L
Product Specifications- Notes: Cut to fit
- Branch Quantity: 0
- Centerline Length (in): 15.6
- Centerline Length (mm): 396
- End 1 Inside Diameter: 0.25 in
- End 2 Inside Diameter: 0.25 in
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- OE Part Number: 1786
- UPC: 072053178012
- Part Description: 1989 Mazda 323 Engine Coolant Hose
Vehicle Fitment- 1989 Mazda 323 | All Trims | 4 Cyl 1.6L
Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.000
- Motor Length: 3.875
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.268
- Shaft Length: 2.0625
- Shaft Shape: Round
- Shaft Type: Round
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361354937
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1989 Mazda 323 Hvac Blower Motor Without Wheel
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 5.0
- UPC: 096361386112
- Part Description: 1989 Mazda 323 A C Expansion Valve
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Connector Shape: Rectangle
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 4
- UPC: 096361372573
- Part Description: 1989 Mazda 323 A C Clutch Control Relay Harness Connector
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267541
- Part Description: 1989 Mazda 323 A C System O Ring And Gasket Kit
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1989 Mazda 323 A C System Valve Core And Cap Kit
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Four Seasons® A C Compressor Cut Out Switch Harness Connector for 1989 Mazda 323
PartNumber: 37219$6.73Product Specifications- Notes: AC System Mounted Low Pressure Cut-Out Switch Connector; Harness Connector-Repair
- Connector Pin Qty: 2
- Connector Shape: Round
- Connector Type: Pin
- Gender: Female
- Printed Foot Note: Pressure Switch Harness Connector
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372191
- Part Description: 1989 Mazda 323 A C Compressor Cut Out Switch Harness Connector
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Notes: Low Pressure AC System Mounted;Low Pressure AC System Mounted Cut-Out Switch
- Color: Black; Purple
- Comp Open/Closed: Open
- Connector Gender: Male
- Connector Shape: Open
- Fitting Thread Size: 3/8 in. x 24
- Harness Connector: [37219] / Harness Connector
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Material: Steel
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System mount; System Mounted
- Number of Terminals: 2
- Operate Psi Low Off: 30
- Operate Psi Low On: 31
- Style: Pressure
- UPC: 096361357587
- Weather Pack: No; Yes
- Part Description: 1989 Mazda 323 Hvac Pressure Switch
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 5/8
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 9
- UPC: 038244598076
- Part Description: 1989 Mazda 323 Small Id Hvac Heater Hose
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Notes: Cut to fit
- Centerline Length (in): 10.7"
- Inside Diameter 1 (in): 0.31"
- Number of Branches: 0
- OE Part Number: 1952
- UPC: 072053191424
- Part Description: 1989 Mazda 323 Engine Coolant Molded Bypass Hose
Vehicle Fitment- 1989 Mazda 323 | All Trims | 4 Cyl 1.6L

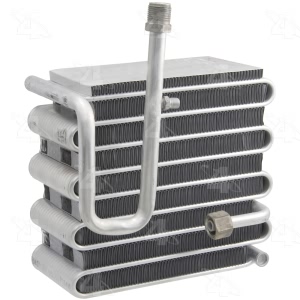

Product Specifications- Core Depth Fraction: 3-7/8
- Core Depth MM: 98.425
- Core Height Fraction: 10; 8-1/2
- Core Height MM: 215.900; 254.000
- Core Width Fraction: 8-1/2; 9-7/16
- Core Width MM: 215.900; 239.713
- Depth: 3.875
- Height: 10.000; 8.500
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361547025
- Width: 8.500; 9.4375
- Part Description: 1989 Mazda 323 A C Evaporator Core
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines

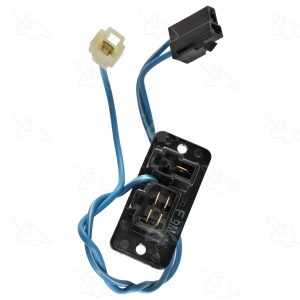

Product Specifications- Connector Gender: Female / Male
- Connector Shape: Rectangle
- Meets / Exceeds OEM: Yes
- Number of Terminals: 4 / 1
- Speed: Fixed # 4
- Terminal Type: Spade / Wire Lead
- UPC: 096361201712
- Part Description: 1989 Mazda 323 Hvac Blower Motor Resistor
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
Product Specifications- Notes: w/Nippondenso 10P13 AC Compressor
- Part Description: 1989 Mazda 323 A/C Compressor Bearing
Vehicle Fitment- 1989 Mazda 323 | All Trims | All Engines
